1000L Thermal Shock Chamber R404A Thermal Cycle Chamber
1000L Thermal Shock Chamber R404A Thermal Cycle Chamber
1000L Thermal Shock Chamber R404A Thermal Cycle Chamber
1000L Thermal Shock Chamber R404A Thermal Cycle Chamber
Specifications
Brand Name :
SANWOOD
Model Number :
SM-1200-3P-A
Certification :
CE AND ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 Set per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Heater :
Nickel chromium alloy heating wire
Refrigerant :
R404A、R23、R508
Condenser :
Semi-closed Germany Bock, Germany Bitzer
Fan :
Centrifugal blower
Color :
Sanwood White
Material :
Stainless Steel with powder coating
Description

Customized Thermal shock chamber large capacity Thermal cycling chamber

Thermal shock chamber introduction

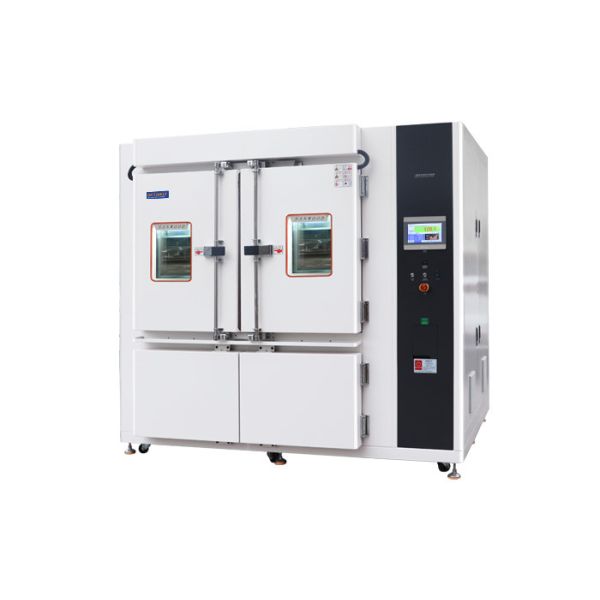

Sanwood customized thermal shock chamber is newly designed product, with large capacity to 1200 liters. It's a three zone thermal shock test chamber in our product series. The hot chamber and cold chamber are in the bottom of the working chamber.

Thermal shock chamber technical parameters:

Model SM-1200-3P-A
Temperature Temperature control range -70℃～180℃
Temperature shock range -40℃～150℃
Temperature fluctuation ±1.0℃
Pre-cooling rate 1.0 ~ 3.0℃/min from RT ~ -70℃
Pre-heating rate 3.0 ~7.0℃/min from RT ~ 180℃
Temperature conversion time within 5 second
Material /components Internal material Stainless steel(SUS304)
External material Cold rolled steel sheet / powder spraying
Heat insulating material 100mm thickness polyurethane plate＋10mm thickness mineral wool
Fan Centrifugal blower
Compressor Semi-closed Germany Bock, Germany Bitzer
Condenser Water-cooled
Refrigerant R404A,R23 or R449A, R508
Evaporator Fin - and - Tube Heat Exchanger
Heater Nickel chromium alloy heating wire
Size Interior size(mm) W*H*D 1200X1000X1000
Volume(L) 1200l
Operating ambient temperature +5 ~ 35℃
Power supply 380V AC 50/60Hz
Controller Customized Sanwood controller SH5600

Thermal shock chamber features:

1. Double-wing door with observation window in each door.

2. Customized Sanwood controller, multi-language programmable touch control system. Can be remote control to PC.

3. Apply to larger amount products test, customized sample holder
4. Standard modular design for the chamber.
5. Optional with humidity function
6. Multi-group server Valve, the most appropriate amount of refrigerant control
7. Energy-saving 30%; Environment-friendly refrigerant

8. Easy Access with cable ports 50mm diameter

Thermal shock chamber control system

Controller Sanwood customized temperature controller
Display 7.0 inch, touch screen
Running mode Program mode, fixed value mode;
Program capacity

Editable program

Quantity: Max 120

Steps: Max 100

Number of cycles: Max 999

Program can be linked (link program serial number can be selected)
Temperature control accuracy ＜0.5℃
Remote control to PC

Ethernet, RS485, RS232 interface.

choose one of them;
Control mode

BTC + DCC + DEC
Graph record With battery-protected RAM, it can save the set value, sampling value and sampling time of the device; the maximum recording time is 350 days (when the sampling period is 1.5min)
Subsidiary function

Fault alarm and cause, processing prompt function

Power failure protection

Upper and lower temperature protection

Calendar timing function (automatic start and automatic stop operation)

Self-diagnostic function
