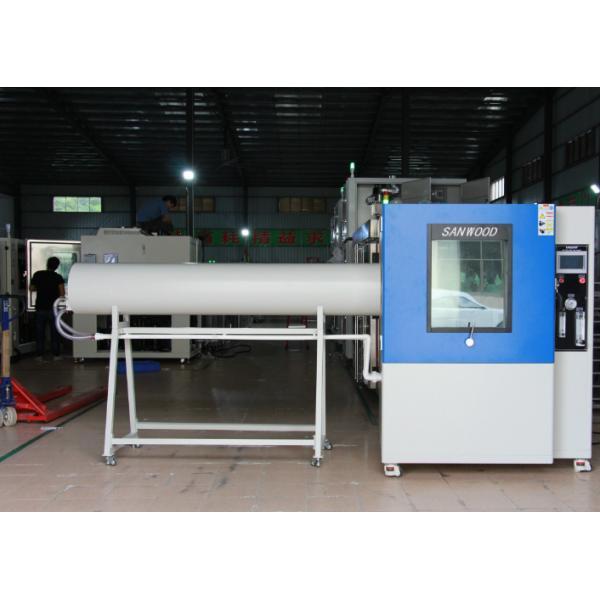

SUS304 Rain Test Chamber IPX5 IPX6 Water Flushing Testing Machine
SUS304 Rain Test Chamber IPX5 IPX6 Water Flushing Testing Machine
SUS304 Rain Test Chamber IPX5 IPX6 Water Flushing Testing Machine
SUS304 Rain Test Chamber IPX5 IPX6 Water Flushing Testing Machine
Specifications
Brand Name :
SANWOOD
Model Number :
SM-IPX56-1000
Certification :
CE AND ISO
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 set per month
Delivery Time :
4-6 working days
Packaging Details :
Standard exporting wooden case outside, wrap and foam inside.
IP Class :
IPX5 And IPX6
Chamber Size :
All Size Can Customize
Controller :
Touch Screen
Brand :
Sanwood
Description

EN60529 IPX56 Rain Test Chamber IPX5 IPX6 Water Flushing tests

Sanwood Rain Test Chamber SM-IPX56-1000 is manufactured according to standard of IEC60529 IPX5, IPX6 test; GB4208 IPX5/6 requirement to test the water-proof performance of the "waterproof" appliances and electrical products etc.

Rain test chamber SM-IPX56-1000 Feature

1. The test chamber can be used to do the IPX5, IPX6 tests.

2. The structure of the test chamber is stainless steel, and main components are well-known brands such as Schneider, Fuji, Mitsubishi, etc., to ensure long-term stable, safe and reliable operation;

3. The control system has friendly HMI and easy to operate; automatically control IPX5, IPX6 flushing tests

4. Test methods IPX5 water flushing test: flushing nozzle 6.3mm inner diameter; water flow 12.5L/min (750L/h); Distance between flushing nozzle to specimen is 2.5m ~ 3.0m. Test time is around 1m2/min (specimen surface area) and 3 mins at least.

5. Test method: IPX6 water flushing test: flushing nozzle 12.5mm inner diameter; water flow 100L/min; Distance between flushing nozzle to specimen is 2.5m ~ 3.0m. Test time is around 1m2/min (specimen surface area) and 3 mins at least.

6. chamber structure assure the test water to be reused at the piping sytem.

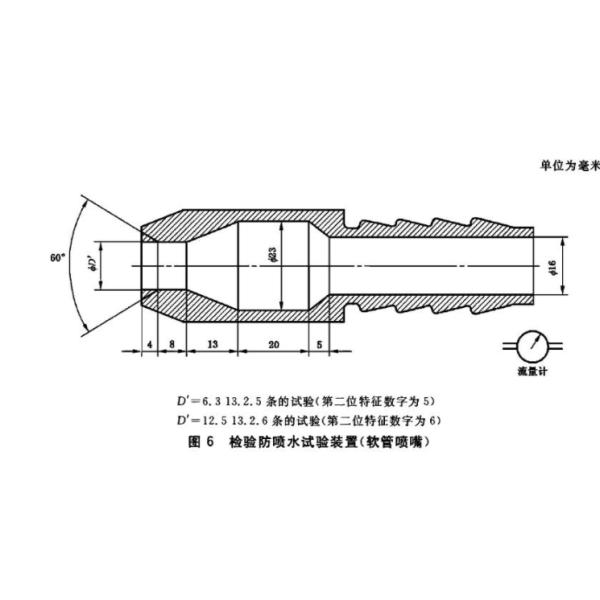

7. IPX5 and IPX6 flushing testing path design as below image.

SUS304 Rain Test Chamber IPX5 IPX6 Water Flushing Testing Machine

Rain test Chamber SM-IPX56-1000 Technical Specification

Model SM-IPX56-1000
Testing room Size 1000(W)*1000(H)*1000(D)
External Size 3950(W)*1800(H)*1200(D) (2.5m pipeline is detachable )
Power 2.5(KW)
Performance Index IPX5 Nozzle diameter 6.3mm
IPX5 water flow 12.5L/min
IPX6 Nozzle diameter 12.5mm
IPX5 water flow 100L/min
Flushing distance 2.5m ~ 3m
Swing amplitude ±15°
Rotating speed 1~10r/min
Operation Control System Controller SANWOOD touch screen controller
Time controller Imported programmable time computer integrated controller
Water pressure control Manual regulator flowmeter (option electromagnetic flow meter)
Water supply system Water tank, booster pump
Power supply AC380V 50Hz 3 phase
Safety protection Leakage, short circuit, motor overheating

Customized models and sizes are available as well.

SUS304 Rain Test Chamber IPX5 IPX6 Water Flushing Testing Machine

※Please consult the sales for specific technical parameters, SANWOOD reserves the right of explanation.
