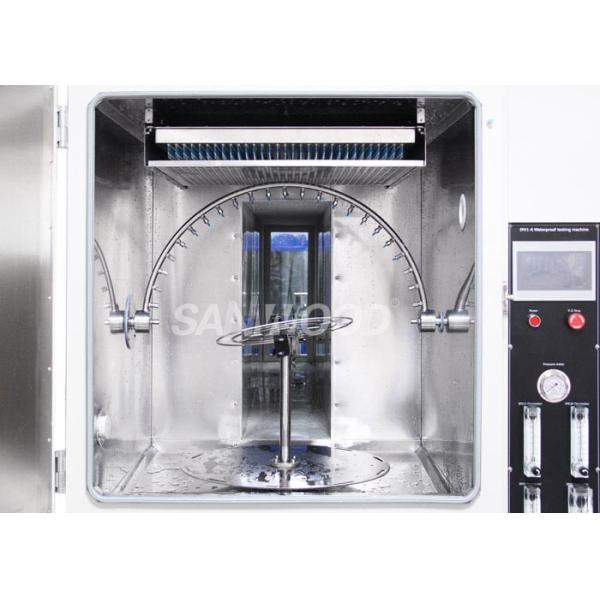

SUS304 IPX1-6 Flushing Rain Test Chamber Water Recycling
SUS304 IPX1-6 Flushing Rain Test Chamber Water Recycling
SUS304 IPX1-6 Flushing Rain Test Chamber Water Recycling
SUS304 IPX1-6 Flushing Rain Test Chamber Water Recycling
Specifications
Brand Name :
SANWOOD
Model Number :
SM-IPX123456-1000
Certification :
CE AND ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 set per month
Delivery Time :
5-8 weeks
Packaging Details :
Wooden case
Usage :
IPX1, IPX2, IPX3, IPX4, IPX5, IPX6
Inner size :
Customized size available
Standard :
EN60529 GB 17001
Color :
Sanwood White
Power supply :
380V 50Hz, three phase
Calibration :
YES
Description

Rain Test Chamber IPX1, IPX2 dripping, IPX3, IPX4 spray IPX5, IPX6 flushing test


Sanwood is engaged in developing and manufacturing environmental reliability test chambers since 1995. Rain test chamber series are our standard products over years experience for industries. Rain Test Chamber is mainly used to test anti-rain and waterproof performance for products of plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control.

Sanwood rain test chamber IPX123456 is a combined test chamber with multi-functions of rain tests, IPX1, IPX2 dripping, IPX3, IPX4 spray IPX5, IPX6 flushing tests can be done automatically in ONE system.

Sanwood rain test chamber features

1. Stainless steel SUS$304 chamber body, outer coating with sanwood standard white colour (customized color is available as well).

2. Automatical test system and touch screen controller: the self-developed controller with waterproof grade IPX test operation interface can automatically carry out the test by directly selecting the waterproof grade in the touch screen.

3. Bench table can rotate and tilt at an angle as required.

4. Water recycle system: the chamber has its own water tank, circulating water, no need to build a professional waterproof test room.

5. Customized sizes and models are available in Sanwood.

Rain Test Chamber Technical parameters:

Sanwood Integrated Rain Test Chamber IPX123456 IPX1, IPX2 tests
Inner chamber material D×W×H(mm) 1000*1000*1000
Performance index Drip plate height 200～800mm(adjustable)
Drip plate size 800x800mm
Rainfall 3～5mm/min
Drip hole diameter 0.4mm
Test bench size diameter 400(mm)
Test bench angle The horizontal center faces from both sides to 45°
Lifting mode up and down
Sanwood Integrated Rain Test Chamber IPX123456 IPX3, IPX4 tests
Performance index Radius of Water spraying ring 400mm
Water pipe diameter 18mm
Nozzle hole diameter 0.4mm
Aperture spacing 50mm
Swing amplitude ±45°,±60°,±90°,±180°(theoretical value)
Rotating speed 1r/min
Sanwood Integrated Rain Test Chamber IPX123456 IPX5, IPX6 tests
Performance Index IPX5 Nozzle diameter φ6.3mm
IPX5 water flow 12.5L/min
IPX6 Nozzle diameter φ12.5mm
IPX5 water flow 100L/min
Flushing distance 2.5 ~3.0m
Swing amplitude ±15°
Rotating speed 1~5r/min
Operation Control System Controller SANWOOD touch screen controller, programmable
Water pressure control Electromagnetic flowmeter or manual regulate flowmeter
Observation YES
Water supply system Water tank, booster pump
Power supply AC380V 50Hz, 3 Phase
Safety protection Leakage, short circuit, motor overheating

SUS304 IPX1-6 Flushing Rain Test Chamber Water Recycling

Rain Tests methods per EN60529

1. IPX1 Drip test: place the specimen in the test table, rotate speed 1r/min; the distance between specimen top surface to drip nozzle no more than 200mm; drip water flow 10.5mm/min and continous 10 mins for one test.

2. IPX2 15° angle drip test: the test table angel at 15° for one side and flow rate at 30.5mm/min and continous 2.5min; change to another 3 sides and total test time 10 mins.

3. IPX3 water spray test: choose the right radius pendulm pipe according to the specimen size, keep the test table surface at the horizontal line of the pendulm pipe diameter. Place the specimen on the test table and top surface to the spray nozzle is no more than 200mm. The water flow is 0.07L/mm per nozzle. Pendulm pipe swing angle 60° and 120°； and swing time of 2x120° is 4 second. Total test time 10 mins.

4. IPX4 water spray test: the spray area is each side 90° when pendulm pipe starts in the middle. Swing angle 180°, and swing time of 2x180° is 12 second. Total test time 10 mins.

5. IPX5 water flushing test: flushing nozzle 6.3mm inner diameter; water flow 12.5L/min (750L/h); Distance between flushing nozzle to specimen is 2.5m ~ 3.0m. Test time is around 1m2/min (specimen surface area) and 3 mins at least.

6. IPX6 water flushing test: flushing nozzle 12.5mm inner diameter; water flow 100L/min; Distance between flushing nozzle to specimen is 2.5m ~ 3.0m. Test time is around 1m2/min (specimen surface area) and 3 mins at least.

* Customized sizes and models are available. Inquiry Sanwood Sales Team for more details.
