Specifications
Brand Name :
SANWOOD
Model Number :
SMC-408-CD
Certification :
CE AND ISO
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, Western Union, MoneyGram, T/T, D/P, D/A
Supply Ability :
60set /per months
Delivery Time :
35 working days
Packaging Details :
1. Frist packed with plastic film for anti-dust . 2. Second packed with bubble film for anti-crash. 3.Last packed with woodencase
Internal Material :
SUS#304 Stainless Steel
External Material :
A3 plate with galvanised painting
Controller Brand :
SANWOOD
Controller Screen :
5'7 Inch Touch Screen
Controller Model :
SH5600
Chamber Volme :
225L
Compressor :
GEA BOCK
Description

Pull-push Controller Temperature and Humidity Test Chamber

For Industries Products Environmental Test

Temperature and Humidity Test Chamber Introduction:

The constant temperature and humidity test chamber is widely used in scientific research, research institutes, quality inspection institutes and other industries to do warm and humid heat tests of electronic and electrical products, materials, parts, equipment, etc., alternating heat test and constant temperature test, etc. Also could do high and low temperature routine tests, low temperature storage, in order to evaluate the performance of the sample under given environmental conditions.

It's widely used for industries of Electronic and Electric, Equipment and Instrument, Plastics & Rubber, Construction, Communication, Research and institute, Energy and Laboratories, etc.

Temperature and Humidity Test Chamber details.

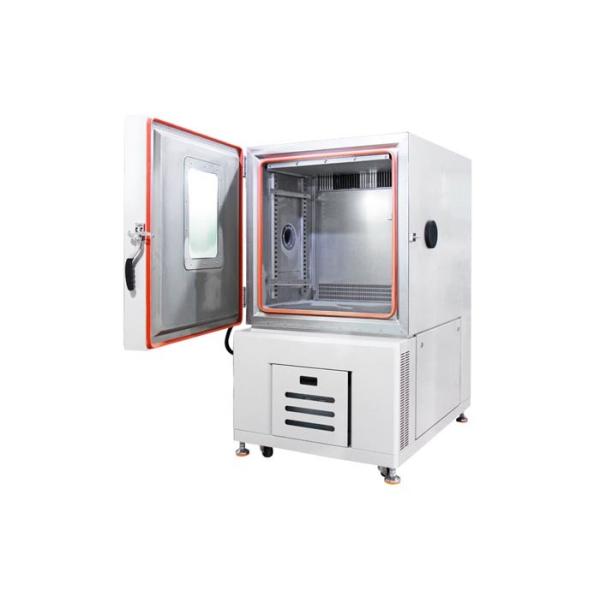

Chamber overview

Environmental Pull Push Humidity Test Chamber Galvanised Painting

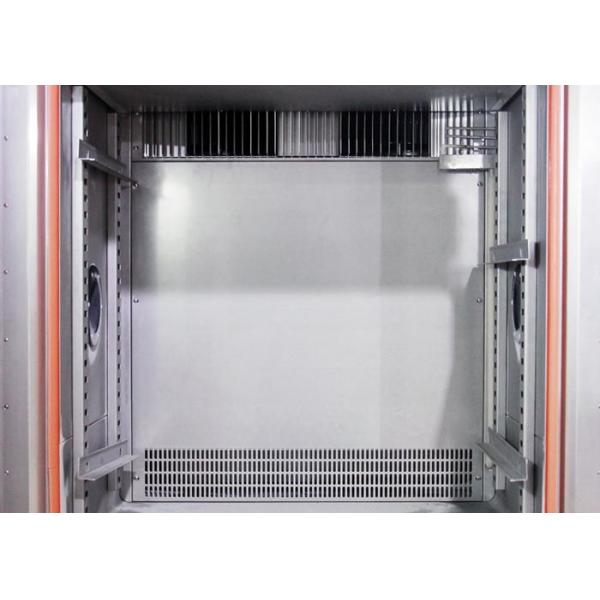

Stainless steel inner chamber, with two samples racks, height adjustable. The temperature-adjusting and conditioned air duct is designed as a double air duct, which is connected to the studio but isolated. The wind path is in the form of a wind returning from up and down.

Environmental Pull Push Humidity Test Chamber Galvanised Painting

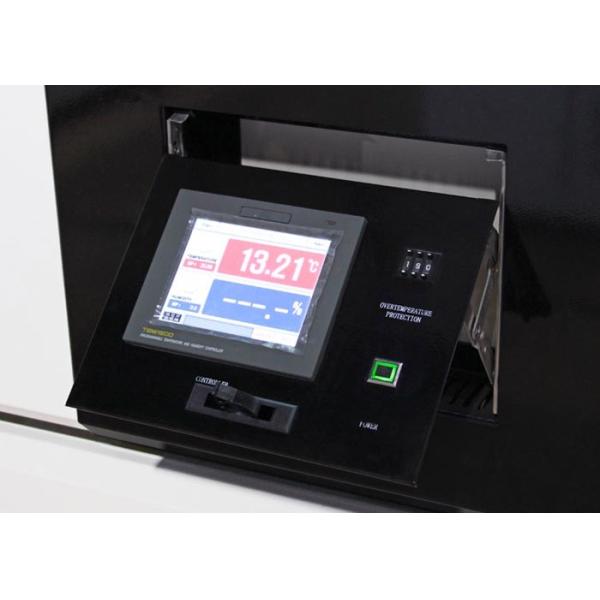

Pull-push controller, located in front of the machine, under the door.

Environmental Pull Push Humidity Test Chamber Galvanised Painting

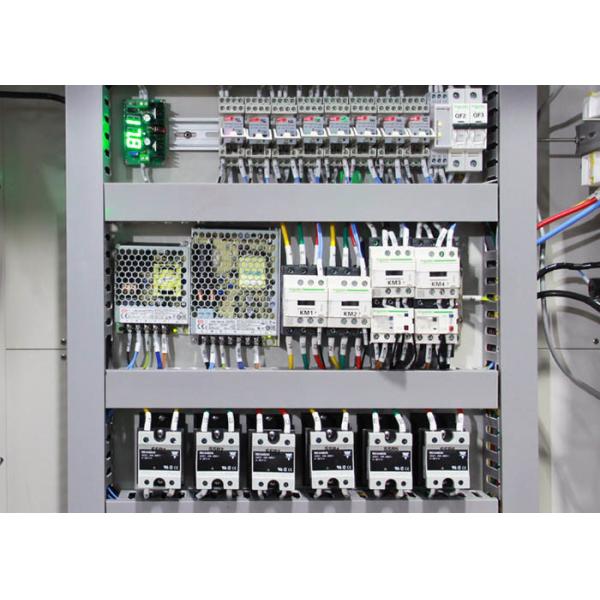

Our circuits are arranged in accordance with international UK standards and are equipped with complete circuit diagrams. Each line has a clear line number, which is clearly defined and clearly defined. We use electrical components of internationally renowned brands, such as France Schneider, Switzerland Carlo Gavazzi ,Japan Mitsubishi, Korea Rainbow, Korea SAMWONTECH and so on.

Environmental Pull Push Humidity Test Chamber Galvanised Painting

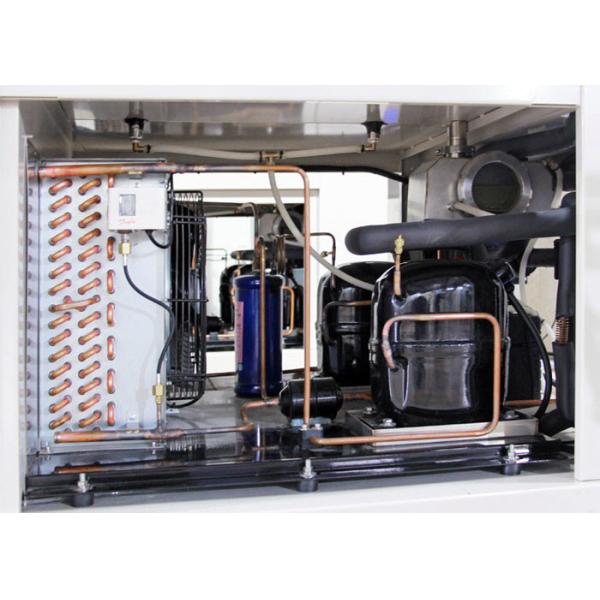

Unit module standardization: Convenient installation, commissioning and subsequent maintenance are more convenient and cost-effective.

Environmental Pull Push Humidity Test Chamber Galvanised Painting

Standard Met and Implemented:

GB/Bb T2423.2-89 high temperature test method

GB2423.1-89 test A: low temperature test method

GJB150.4-1986 test at low temperature

IEC60068-2-1 low temperature test method

IEC60068-2-38 temperature cycle

IEC60068-2-78 constant humidity temperature

MIL - STD - 202G - 103B humidity test

IEC60068-2-30 humidity temperature cycle

GB/T2423.3 constant humidity heat test method

Temperature Humidity Test Chamber Parameter Specifications

Model SMC-408-CD
Temp. range -70°C ～150°C
Display resolution 0.1°C
Temperature stability High±0.5°C ,low ±1.0°C
Temperature uniformity ≤±2.0°C
Heating rate -70°C ～+180°C, 3.0 ~ 5.0℃/min
Cooling rate

180°C ～25°C cooling rate 2.0~3.0℃/min;

25°C ～-40°C cooling rate 1.0~2.0℃/min;

-40°C ～-70°C cooling rate 0.7~1.0℃/min;

Interior material Stainless Steel Plate ( SUS 304)
Exterior material A3 plate with power coating
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Max current 17A
Ambient Temp. +5°C ～+35°C
Power Supply AC 380V±10％ 50Hz ,3 phase 4 wires +Ground Wires
Weight 650KG
Observation window size 450 X 450mm or Sanwood Sandard size
Sample holder 2 pcs
Fittings cable port(portΦ50mm)*1, size is optional
Safety device (standard)

No fuse breaker,over pressure,over heat&over current protect,over temp.

protect, over load protect for blower, dry heat protect
Control System Balanced Temperature & Humidity Control (BTHC)System
Refrigeration system Air Cooled (Water Cooled is option)
Hermetic compressor
Double stage refrigeration system,
R408 AND R23 (R449A or R508 option)
Controller 5'7-inch LCD Touch Screen panel
Operation model : Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles

Note: 1. We reserve the right to change specifications without prior notice

2. Customized sizes and configurations available
