Industrial Plastic UV Aging Test Chamber , Programmable Temperature Controller
Industrial Plastic UV Aging Test Chamber , Programmable Temperature Controller
Specifications
Brand Name :
SANWOOD
Model Number :
SM-UV-600C
Certification :
CE AND ISO
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 sets per month
Delivery Time :
35 working days
Packaging Details :
Outside is with strong wooden case package
Inner Dimension :
D×W×H≥ 450×1100×500
Test Sample :
Approximately 150×75mm 48 PCS
Temperature Range :
RT＋10℃～70℃
Humidity Range :
≥95％R.H
Humidity Uniformity :
Within ±2%
Temperature uniformity :
Within±2℃
Humidity Fluctuation :
Within ±2%
Description

Programmable Industrial Plastic UV Aging Test Chamber Ultra Violet Accelerating Aging Tester


Specification:

This series of UV Tester adopts the best simulation of sunshine UV spectral fluoresvent UV lamp and
combines with control temperature and supply humidity device to imitate the color change, luminance
and strength reduction for material; cracking, spalling, pulverization, oxidation and other damaged
sunshine (UV section) high temperature, high humidity, condensation and dark period factors, together
with UV-light and humid sybergistic effect to the single light fastness or single moisture-proof
decreased or lose efficacy for the material. Thus widely used to evaluate the performance of the climate
resistance of materials.


Applied:

Industrial Plastic UV Aging Test Chamber , Programmable Temperature Controller

Test Methods:

1. GB/T16422.3-1997 Part Ⅲ,fluoresvent UV lamp
2. GB/T14522-2008 artificial weathering aging test method, fluoresvent UV lamp
3. IEC61215 Part 10.10,part ultraviolet weathering test
4. ASTM G154
5. GB/T5170.9

Industrial Plastic UV Aging Test Chamber , Programmable Temperature Controller

Features:

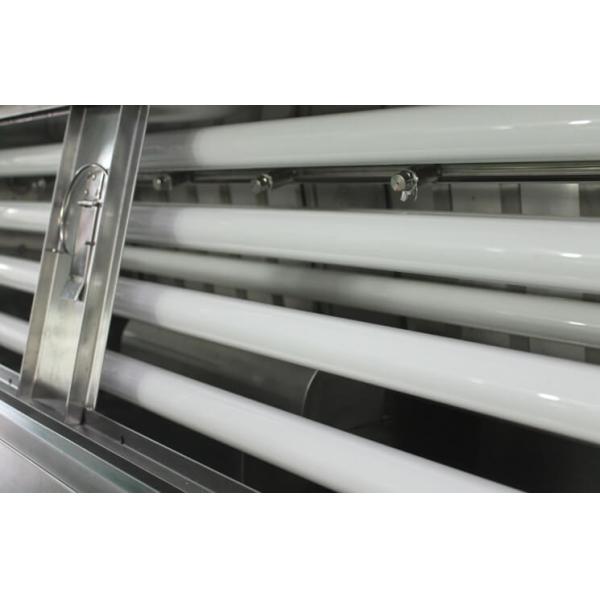

1. Total 8 pieces uv lamps,we have UV-A / UV-B type lamp, UV-A wavelength coverage:315-400nm,
UV-B wavelength coverage:280-315nm, you can choose UV-A / UV-B tube or choose both types
mix together use.If no special instruction,when the machine being delivery,we will equip UV-B tube.
2. The service life for lamp can up to 1600 hours.
3. We have toch screen type, touch tone type, horizontal type for your choose.


Technical Parameter:

Model SM-UV600-C SM-UV800-C SM-UV2000-C
Temperature Temperature control range 30.0℃～70.0℃
Temperature fluctuation ±1.0℃
Temperature uniformity ±2.0℃
Humidity Humidity control range 90.0%RH～98.0%RH(Temperature range:30.0℃～70.0℃)
Humidity fluctuation ±1.0% RH
Humidity uniformity ±3.0％RH
Lighting Lamp type UV-A,UV-B
Wavelength UV-A(280～315nm)40±10%W/㎡,UV-B:(315～400nm)40±10%W/㎡
Lamp quantity 8Pcs 16Pcs
Distance between tubes center 70±2mm
Distance between tubes center 50±2mm
and testing samples
Lamp lifespan 1200H
Nozzle quantity 12Pcs 16Pcs
Sample size W450*H260±2mm W100*D600±2mm W2000*D1000±2mm
Material / Internal material Stainless steel(SUS304)
Components External material Stainless steel(SUS304)
Heat insulating material 50mm thickness mineral wool
Fan Axial flow fan
Humidifier Steam humidifier
Size Inner size(mm) W*H*D 1170*500*450 1170*500*600 2000*500*1000
Outer size(mm) W*H*D 1300*1550*650 1300*1750*750 2300*1250*1250
Operating ambient temperature +5 ~ 35℃
Power supply 220V AC 50/60Hz 220V AC 50/60Hz 380V AC 50/60Hz
Controller South korea SAMWONTECH TEMI880 5.7 inch controller, equipped with RS232 port

Industrial Plastic UV Aging Test Chamber , Programmable Temperature Controller

Industrial Plastic UV Aging Test Chamber , Programmable Temperature Controller

Industrial Plastic UV Aging Test Chamber , Programmable Temperature Controller

Industrial Plastic UV Aging Test Chamber , Programmable Temperature Controller

Product Catalog:

UV Lamp Weathering Test Chamber.pdf
