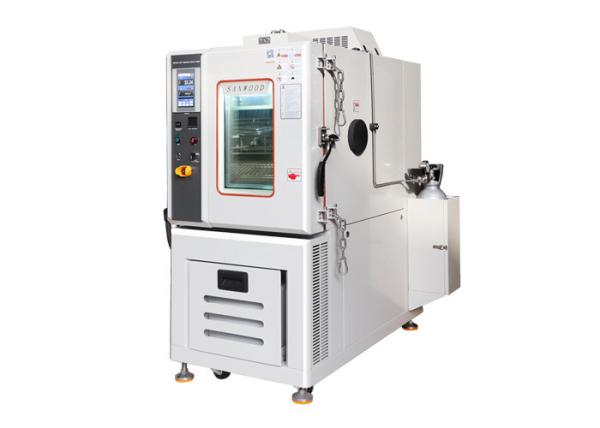

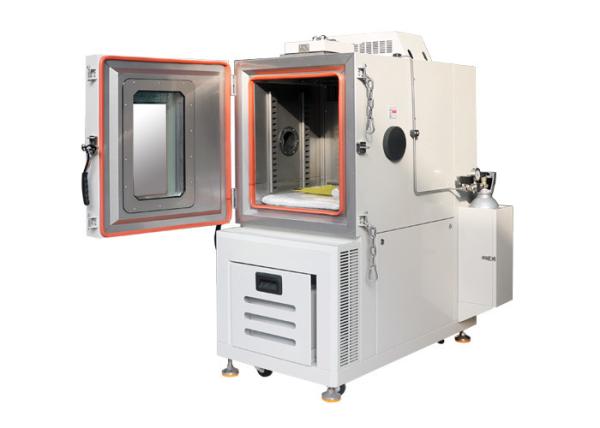

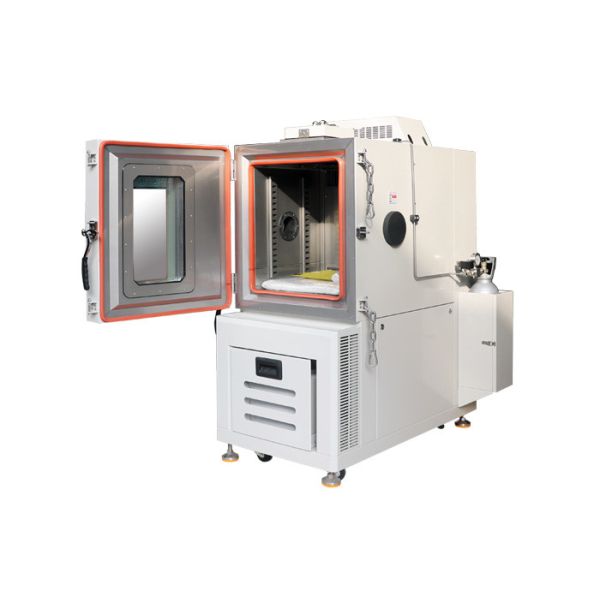

Sanwood Battery Explosion-proof Environmental Chamber

HL6 Temperature Climate Chamber for Energy Storage System Test

Battery Explosion-proof Environmental Chamber

Battery explosion proof environmental chamber is mainly used in the environmental test, electrical test and performance test of lithium-ion battery (battery cell, battery pack, battery module, etc) in R & D laboratories and battery production, providing stable temperature environment.

Battery explosion-proof high and low temperature test chamber is widely used to do accelerated thermal testing, alternating temperature test and constant temperature test,etc, and also could do routine tests at high and low temperatures, storage at low temperature to evaluate the performance of the batteries under given environmental conditions.

Battery Explosion-proof Environmental Chamber meet and comply Standards:

IEC62660 Reliability and abuse test of lithium battery cells for electric vehicle

IEC60086 Primary batteries Part 4:safety of lithium batteries

IEC61960 Portable lithium secondary battery unit

UL1642 US lithium battery safety standard

UN38.3 United Nations lithium battery transportation test requirements

IEEE1725 Tephphone rechargeable battery

IEEE1625 laptop rechargeable battery

SAE J2464 Electric vehicle battery abuse test

Battery Explosion-proof Environmental ChamberStructure and Characteristics:

1.Explosion-proof High and Low Temperature Test Chamber is composed of the chamber, refrigeration systems, heating systems, air circulation system and control system.

2.The Battery Explosion-proof High and Low Temperature Test Chamber is made of high quality SUS#304 stainless steel material,the outer shell adopts A3 steel plate,surface electrostatic spraying.

3.Insulation system uses superfine fiberglass wool or polyurethane foam so as to ensure the temperature of inside chamber.

4.Temperature and humidity control adopts Korean import TEMI360 programmable touch screen temperature and humidity controller, with automatic calculation of PID function.

5.Adopts steam humidifying method, automatic water circulation loop,with functions of automatic filling water.

6.Refrigeration system adopts original France "Taikang" refrigeration unit and full sets of refrigeration parts.

7. Explosion proof safety devices can be customized as requirement to protect the chamber under HL0~6.

Technical Specifications
