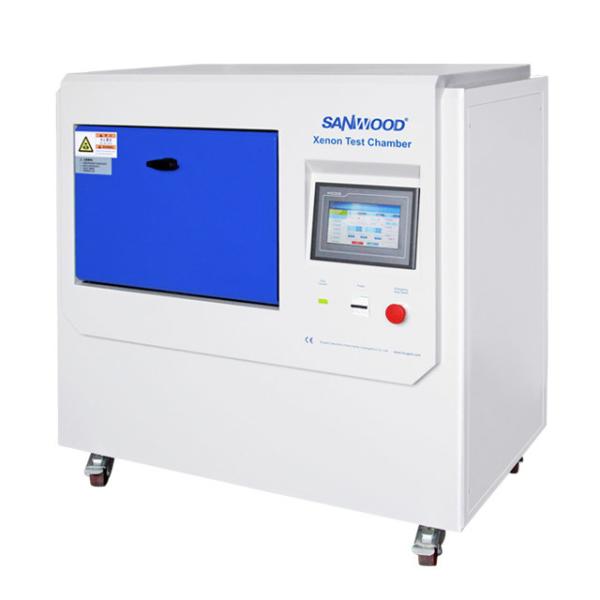

Air Cooled Xenon Lamp Aging Test Chamber With Water Spray For Color Fastness
Air Cooled Xenon Lamp Aging Test Chamber With Water Spray For Color Fastness
Air Cooled Xenon Lamp Aging Test Chamber With Water Spray For Color Fastness
Air Cooled Xenon Lamp Aging Test Chamber With Water Spray For Color Fastness
Air Cooled Xenon Lamp Aging Test Chamber With Water Spray For Color Fastness
Air Cooled Xenon Lamp Aging Test Chamber With Water Spray For Color Fastness
Specifications
Brand Name :
Sanwood
Model Number :
E-SUN
Certification :
CE AND ISO
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 Set per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Power :
Electronic
Usage :
Stability temperature humidity
Warranty :
12 months
Description

High Quality Air-Cooled Xenon Light Color Fastness Test chamber (E-SUN)

Compared with the A-SUN benchtop xenon lamp weathering test chamber, this type (E-SUN) has increase spray function to simulate rain or other phenomenons when materials are acturally used outdoors at the same time, it can also monitor the total radiation energy value obtained from the sample during the test, which is sued to control the interruption of the test.

Benchtop Xenon lamp aging test chamber Characters

◆The test procedures of Bench-top Xenon lamp aging test chamber can be programmed freely; and upto 16 predetermined procedures can be saved in one time. Every procedureincludes up to 10 segments setting data.
◆Bench-top Xenon accelerated aging test chamber Can set the cumulative energy (total irradiance energy)obtained by sample to finish a testprocedure.
◆ With spray function, can set spray time and sprayinterval time.
◆The xenon light source correspond with internationalstandards; ensure reproducibility and comparability of testing results.
◆ Irradiance energy can be accurately controlled.The "Sun Eye" control system can automaticallycompensate the change of light intensity caused by ageing or other factors.
◆ Users can easily calibrate and adjust the irradiance orthe blackboard temperature by themselves.
◆ With High precision Pt100 Temperaturesensor. Blackboard temperature is auto-controlled during the whole process
◆ Alarm function for protection:Over temperature, over heating load,bigerror for irradiance, auto shut-down protection when opening door.
◆ Touch screen and user-friendly operation interface allowoperator to set the test parameters and monitor all the test processeasily.

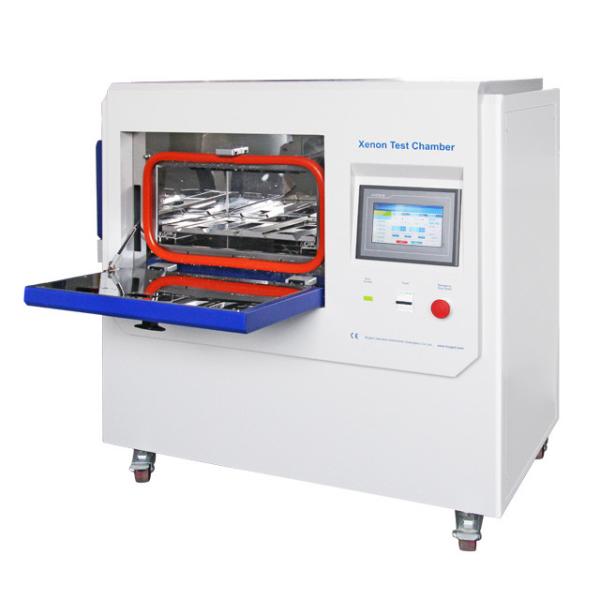

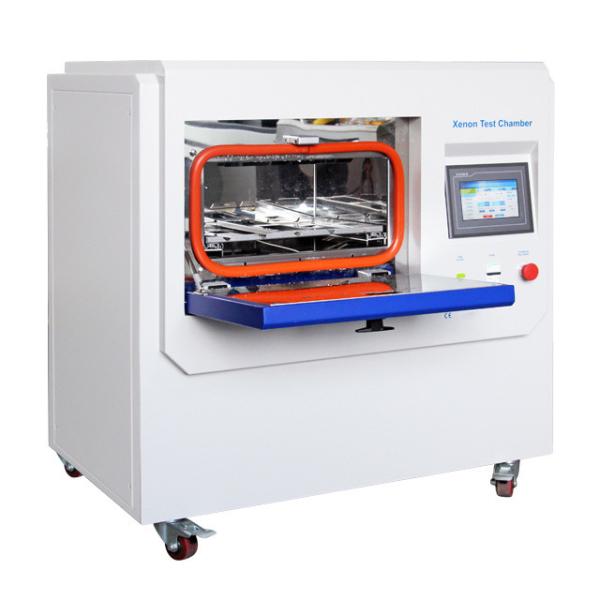

◆ Specimen mounting and evaluation is fast and easy Withunique slide-out specimen tray

◆ Real-time data can be collected and recorded. Theincidental USB connector allow users to copy the test data into a USB drive,achieving unattended operation.

Air Cooled Xenon Lamp Aging Test Chamber With Water Spray For Color FastnessAir Cooled Xenon Lamp Aging Test Chamber With Water Spray For Color FastnessAir Cooled Xenon Lamp Aging Test Chamber With Water Spray For Color FastnessAir Cooled Xenon Lamp Aging Test Chamber With Water Spray For Color FastnessAir Cooled Xenon Lamp Aging Test Chamber With Water Spray For Color FastnessAir Cooled Xenon Lamp Aging Test Chamber With Water Spray For Color Fastness

Bench-top Xenon lamp aging test chamber Main Technical Parameters

Model A-SUN E-SUN
Xenon lamp 1 pc Q-LAB 1.8Kw xenon lamp Air-cooled 1 pc Q-LAB 1.8Kw xenon lamp Air-cooled
Filter Extended UV filter (also can choose daylight filter or window glass filter) Extended UV filter (also can choose daylight filter or window glass filter)
Irradiance monitor methods 340nm or 420nm or 300nm ~ 400nm (choose any one) 340nm or 420nm or 300nm ~ 400nm (show at the same time)
Lamp lifetime (Hours) 1,500 H 1,500 H
Exposure Area 1,000 cm2 (can put 9 standard samples 150x70mm) 1,000 cm2 (can put 9 standard samples 150x70mm)
Adjustable irradiance range 50W/m2 ~ 120W/m2 (300nm ~400nm) or 0.3W/m2 ~ 1.0W/m2 (@340nm) or 0.5W/m2 ~ 1.8W/m2 (@420nm)
Adjustable BPT range RT+30℃ ~90℃ RT+30℃ ~90℃
Interior Material of Chamber Stainless steel - SUS 304 material Stainless steel - SUS 304 material
Exterior Material of Chamber Powder coating Powder coating
Overall size (LxWxH) 950x570x535mm 925x600x1050mm
Net/Gross weight KG 93KG /130KG 140KG /180KG
Power supply 220V 50Hz 220V 50Hz

Machine accessories list:

Name Quantity
Sample frame 5 pieces(Installed in E-SUN)
Sample fixed circlip 10 pieces(Installed in E-SUN)
Temperature sensor holder (including PT100) 1 piece(Installed in E-SUN)
Xenon lamp 1 pieces(Installed in E-SUN)
Light filter 1 pieces(Installed in E-SUN)
Panel (aluminum plate) 9 pieces(Installed in E-SUN)
Instruction 1 piece
Plastic water filter wrench 1 piece
Certification 1 piece
