Specifications
Brand Name :
Sanwood
Model Number :
SMC-22-CC
Certification :
CE AND ISO
Place of Origin :
Guangdong, China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 Set per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Power :
Electronic
Usage :
Stability temperature humidity
Warranty :
12 months
Description

Benchtop Environmental Test Chamber

Product Introduction:

The Bench-top temperature and humidity test chamber is widely used to do warm and humid heat tests for electronic and electrical products, materials, parts, equipment, etc., alternating heat test and constant temperature test, etc. Also could do high and low temperature routine tests, low temperature storage, in order to evaluate the performance of the sample under given environmental conditions.

Served industries:

Aerospace, aviation, electronics, automotive, battery and other products and quality inspection institutes, research institutes, universities and other testing institutes etc.

Equipment performance
Name Benchtop Temperature Humidity Test Chamber
Model SMC-22-CD
Inner dimension 300x300x250mm ( W x H x D )
Inner volume 22.5L
Outer dimension 480x835x990mm ( W x H x D )
Temperature Range -40℃～150℃
Humidity Range 20% to 98% RH
Heating Rate 3.0℃~5.0℃/min
Cooling rate

0.7℃~1.5℃/min from 25℃~ -40℃；

1.0℃~ 2.0℃/min from 150℃ ~ 25℃;

Temperature deviation ±1℃
Humidity deviation ±2%

Mechanical structure design
1-1. Internal material Cold resistance and heat resistance1.2mm stainless steel (SUS #304) plate fully welded
1-2. External material 1.5mm A3 steel plate galvanized and paint
1-2. Main structure design The Sheet metal area, Circuit area, Refrigeration zone, three parts.
1-3. Heat/Cold storage material Aluminum alloy have large capacity to storage heat and cold energy
1-4. Observation window Multi - layer insulating glass observation window with energy-saving LED lighting source
1-5.Sample rack bearing capacity No more than 20 kg/ each layer
1-6. Sample rack moving mode The sample rack is movable.
1-7.Sample Rack 2 stainless steel self
1-8.Insulation layer Heat insulation layer flame retardant PU+Heat insulation glass wool(100mm Insulation layer)
1-9. Equipment movement and fixation

Heavy duty casters with adjustable leveling feet

1-10.

Taiwan original rotatable handle

Japanese original imports #304 SUS hinge , which can prevent the box door shaking.

Energy-saving 18W LED built into the window for easy viewing without glare.

Product details display:

1. tempered glass with LED lighting in the observation window

Benchtop Environmental Test Chamber Damp Heat Test Chamber Temperature Humidity Test Chamber For Laboratories

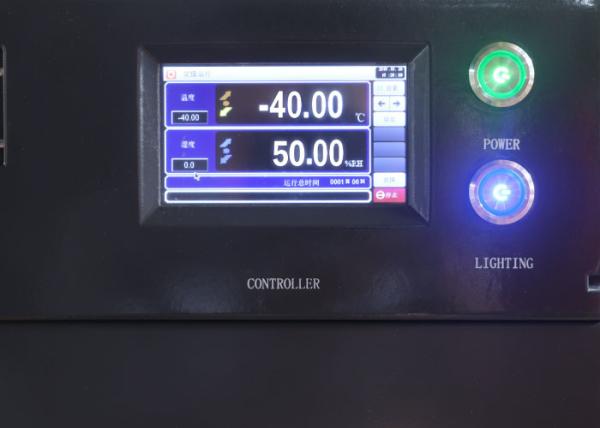

2. Touch screen for the programmable controller.

Benchtop Environmental Test Chamber Damp Heat Test Chamber Temperature Humidity Test Chamber For Laboratories

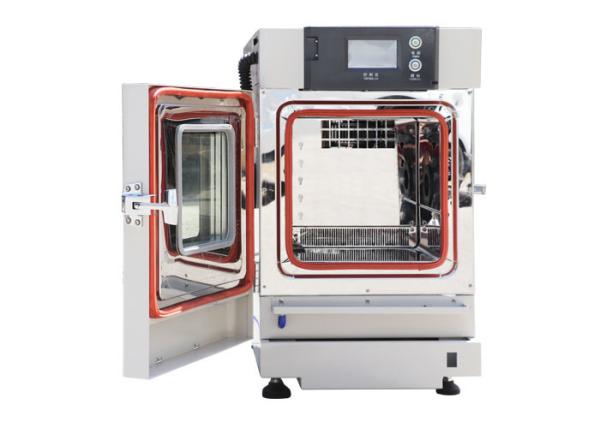

3. Inner chamber - stainless steel, heat resistant silicone seal

Benchtop Environmental Test Chamber Damp Heat Test Chamber Temperature Humidity Test Chamber For Laboratories

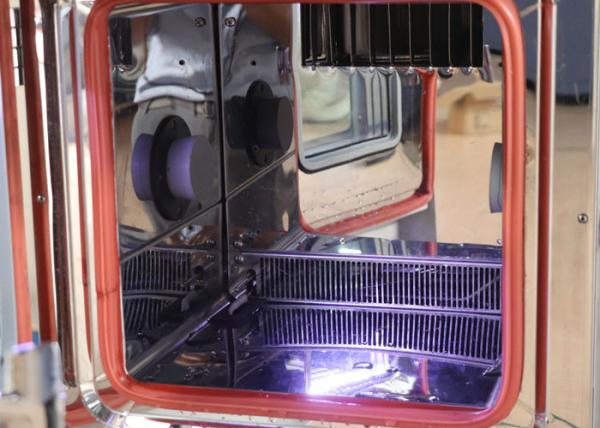

4. curved inner wall, easy to clean;

Up to down air circulation system;

Benchtop Environmental Test Chamber Damp Heat Test Chamber Temperature Humidity Test Chamber For Laboratories

5. accurate control for temeprature and humidity, electric temperature sensor as optional

Benchtop Environmental Test Chamber Damp Heat Test Chamber Temperature Humidity Test Chamber For Laboratories

Benchtop Environmental Test Chamber Damp Heat Test Chamber Temperature Humidity Test Chamber For LaboratoriesBenchtop Environmental Test Chamber Damp Heat Test Chamber Temperature Humidity Test Chamber For Laboratories

Technical specification:

Model SMC-22-CC

Temperature		 Temperature range -40℃～150℃
Temperature fluctuation ±0.5℃
Cooling rate

150.0℃～25.0℃ Cooling rate 2.0～3.0℃/min

25.0℃～-40.0℃ Cooling rate 1.0～2.0℃/min

-40.0℃～60.0℃ Cooling rate0.7～1.5℃/min
Heating rate -60.0℃～150.0℃ Within about 60 minutes 3.0～5.0℃/min
Temperature uniformity ±1.0℃ (-40.0℃～100.0℃)
±1.5℃ (100.1℃～180.0℃or-40.0℃～-60.0℃)

Humidity		 Humidity range 20.0%RH～98.0%RH

Humidity fluctuation		 ±1.0% RH
Humidity uniformity ±2.0％RH

Material		 Internal material SUS304 stainless steel(1.2mm)
External material cold-rolled plate(1.2mm),powder coating
Heat insulation polyurethane foam(100mm)+glass wool(10mm)
Fan Centrifugal fan(Impeller Fan)
Refrigeration compressor hermetic compressor(Tecumseh)
Cooling mode air cooling
Refrigerant R404A,R23,R508
Evaporator finned-tube exchanger
Heater nickel chrome strip heater
Humidifier Steam Humidifier
Size Interior(mm) W*H*D 300 X 300 X 250 22.5L
Exterior(mm) W*H*D

440×740×885(-40～+150℃)
Weight 85kg
Working Temperature +5 ~ 35℃
Power supply 220V/AC 50/60Hz 12A
Controller Standard: SANWOOD

SANWOOD PRODUCTION

SANWOOD Environmental Chambers was established in 1995, which integrated Taiwan and Japan technologies. We have been focus on the most secure and reliable climatic test chamber technology since established.

Benchtop Environmental Test Chamber Damp Heat Test Chamber Temperature Humidity Test Chamber For Laboratories

OUR EXHIBITION

Our products upgrade constantly and our customers come portable batteries, power batteries, battery, lithium batteries, lead-acid, new energy vehicles, electric bicycles, electric tools, electric systems, solar, military, universities research and other technology industries fields.

Benchtop Environmental Test Chamber Damp Heat Test Chamber Temperature Humidity Test Chamber For Laboratories

CUSTOMER WITNESS

Products are exported to more than 30 countries, such as Russia, Singapore, the United States, Turkey, Denmark, Vietnam, India, Malaysia, Kazakhstan, Austria, Canada, etc.

Benchtop Environmental Test Chamber Damp Heat Test Chamber Temperature Humidity Test Chamber For Laboratories

SANWOOD CULTURE

Sanwood thrived little by little and aims to become the leading brand in the safety and reliability environmental test equipment industry all over the worldber.

Benchtop Environmental Test Chamber Damp Heat Test Chamber Temperature Humidity Test Chamber For Laboratories
