20KN Servo Control Universal Mask Test Machine SM-UTM-8000E
20KN Servo Control Universal Mask Test Machine SM-UTM-8000E
Specifications
Brand Name :
Sanwood
Model Number :
SM-UTM-8000E
Certification :
CE
Place of Origin :
China
MOQ :
1
Description

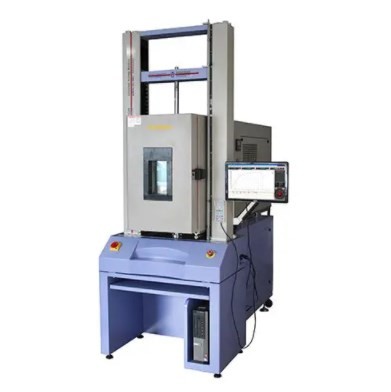

20KN Servo Control Universal Test Machine SM-UTM-8000E

The SM-UTM-8000E series are middle-range tensile test machine for measuring strength in tension, compression, bend, flexure, tear, peel, shear and adhesion testing, etc; to test rubber, plastics, footware, leather, wire and many other materials.

The whole SM-UTM-8000 series are equipped with desktop computer and software program which provide intelligent operation and sophiscticated analysis. There are a variety of grips, jigs and fixtures for different applications.

Technical specification

Model No.: SM-UTM-8000E

Load capacity: - 20KN (can optional with 500N, 1KN, 2KN, 5KN, 10KN).

Unit (switchable) - N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2

Load resolution - 1/500,000

Load accuracy - ±0.5%

Stroke (exclude the grips) - 1000mm (can custom-made)

Effective width - 400mm (can custom-made)

Test speed - 0.001~500mm/min

Speed accuracy - ±0.5%

Stroke resolution - 0.001mm

Motor - AC servo Motor

Main unit dimension - W750 x D700 x H2360mm

Main unit weight - 400Kg

Power supply - 50/60Hz, 208V or 380V 3PH or specified by user.
