Specifications
Brand Name :
Envsin
Model Number :
ET6300S3
Certification :
CE and ISO
Place of Origin :
China
MOQ :
1
Price :
To Be Negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
25 per month
Delivery Time :
30-35 business days after received the payment
Packaging Details :
Well packed in strong wooden case suitable for all types of long distance shipment
Product name :
Thermal Shock Testing
Test Space Volume(L) :
300
Inner Dimensions :
6700*710*600mm
Outer Dimensions :
1200mm*2550mm*2320mm
Power :
AC380V±10%,50Hz±1
Cooling Methods :
Water-Cooled (Compliant with IEC 60068-3-5)
Description

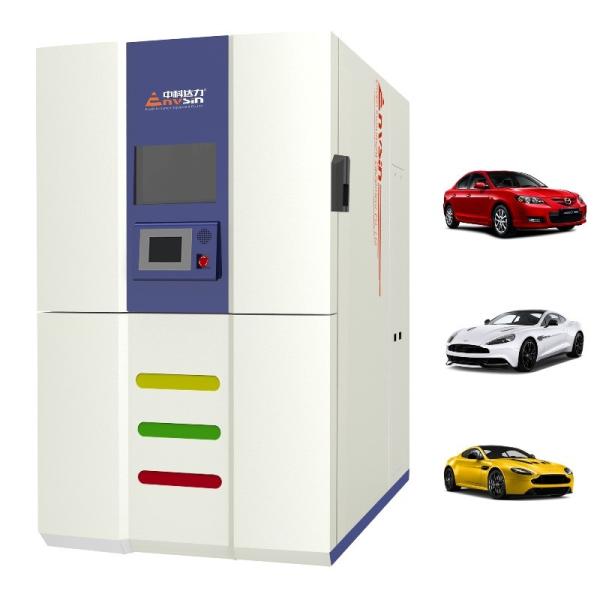

Inside Air Circulation System Thermal Shock Testing Environmental Chamber 3 Zones

This thermal shock testing chamber is used for testing non-heat dissipation test samples and low heat dissipation test samples. For the test of heat dissipation test samples, the heat dissipation power should not exceed the temperature control cooling capacity of the refrigeration system of the environmental chamber, otherwise it will affect the temperature conversion speed and capacity of the temperature test chambers. It is recommended that the heat dissipation of the test samples be less than 300W.

Products Parameter:

• High and low temperature + normal temperature impact (three box method) test:

• Low temperature shock temperature range: -65℃ ~ -10℃

• High temperature impact temperature range: +60℃ ~ +150℃

• Temperature fluctuation: ±0.3℃ ~ ±1.0℃

• Temperature uniformity: ±0.5℃ ~ ±2.0℃

• Temperature deviation: < ±2℃

Structure:
High temperature tank: aluminum silicate insulation foam insulation material:
• With internal lock type high temperature box door (for debugging and installation only)
• Air outlet and return air pneumatic air door of high temperature trough (connecting the test trough)
• High temperature trough air fan
• Aluminum plate type high temperature accumulator
• Heater: high temperature resistant nickel chromium electric heater with ceramic frame
Low temperature tank: high density PU foam insulation material:
• Internal lock type cryogenic chamber door (for debugging and installation only)
• Air outlet and return air pneumatic air door of low temperature tank (connecting the test tank)
• Low temperature trough air fan
• Aluminum plate type cryogenic accumulator
• Evaporator of refrigeration system
• Heater: high temperature resistant nickel chromium electric heater with ceramic frame
Test tank: high density PU foam insulation material:
• Test chamber door: with built-in flat door handle
• Test tank exhaust air dynamic air door (air outlet)
• Test the trough air fan
• Test material placement area (with adjustable height type test material placement separator

Specifications:

Model:Thermal Shock Testing

ET4300S3

ET5300S3

ET6300S3
Test Space Volume (L) 300
Test Zones 3
Hot Chamber Temp. Range(℃) +50/+200
Test Chamber Temp. Range (℃) R.T
Cold Chamber Temp. Range(℃) 75/+70
Temp. Constancy (℃ ) ±0.3-±1.0
Temp. Homogeneity (℃) ±1.0-±2.0
Recovery Time (min) < 5 (on Air Outlet)
Test Space Dimension (mm) 700W×710D×600H
External Dimension (mm) 500W×575D×350H

Testing Temperature Range (℃)

-55/+150

-55/+150

-65/+150
Max. Specimens Weight (kg) 50
Cooling Methods Water-Cooled (Compliant with IEC 60068-3-5)
Power AC380V±10%, 50HZ, 3/N/PE
Compliant with International Standards:
GJB 150.5-1986 IEC 60068–2–14 EIAJ ED–2531A
MIL–STD–883H JIS C 60068–2–14
MIL–STD–202G JASO D 014–4

Thermal Shock Testing Options Accessories

• Independent sensors for specimen protection(NE60519-2.1993)
• 1 Entry port Φ100mm
• Nitrogen gas auxiliary device
• Spare parts package
• E-management and cyber-software
• Video monitor system
• APP for mobility management

Thermal Shock Testing Standard Version

• 3 Power outlets for specimens
• Left and right entry ports Φ50mm
• 2 Silicon stoppers for entry ports
• 2 Stainless steel shelves
• Drier filter for compressing air
