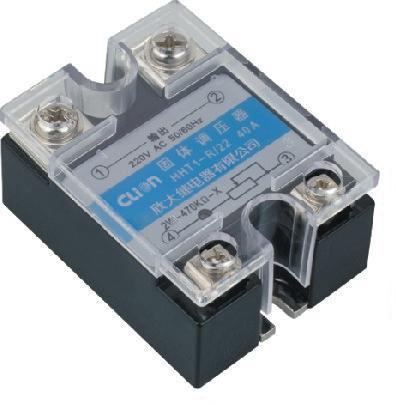

HHT1 Single-phase Solid Voltage Regulator
HHT1 Single-phase Solid Voltage Regulator
HHT1 Single-phase Solid Voltage Regulator
HHT1 Single-phase Solid Voltage Regulator
Specifications
Place of Origin :
China
Brand Name :
Clion
Model Number :
HHT1 Single-phase Solid Voltage Regulator
Certification :
CE
Price :
Get Latest Price
Packaging Details :
Export packing
Delivery Time :
30 days
Payment Terms :
TT/LC
Supply Ability :
50,000 pieces per month
MOQ :
1000 pieces
Port :
SHANGHAI&NINGBO
Protect Feature :
Sealed
Usage :
Protective
Theory :
Solid State Relay
Category :
relays
Description

Part NO.
HHT1-R/22、38 10-40A
　
SSR-VA
Description
Single-phase Solid Voltage Regulator
Control mode
2W470-560KΩ potentiometer
Load Voltage
22:220VAC
38:10-440VAC
Voltage-regulation Scope
22:10-250VAC
38:10-441VAC
Isolation Voltage
Not isolated
Off-state Leakage Current
≤10mA
Output Current
10A,15A,20A,25A,30A,40A
Transient Voltage
22:600VAC,38:900VAC
On-state Voltage Drop
＜3VAC
Dielectrics Voltage-resistance
≥2500VAC
Insulation Resistance
500MΩ 500VDC testing
Ambient temperature
-30～80℃
Dimensions
57.2L*43.5W*29H
Indicated Methods
LED
Installation
Screw fixing
Packing
Inner Box (PCS)
1PCS/small box,10pcs/paper box
Outer CTN (PCS)
100
CTN Size
380*215*175mm
Weight
10A≤110g/PCS G.W:12kg N.W:11kg
40A≤145g/PCS G.W:15.5kg N.W:14.5kg
80A≤150g/PCS G.W:16kg N.W:16kg
Radiator
HH060,HH061,HH062,HH063
Remarks
1.Load current＞10A ,a radiator is necessary,Load current＞80A, fan is necessary.
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
