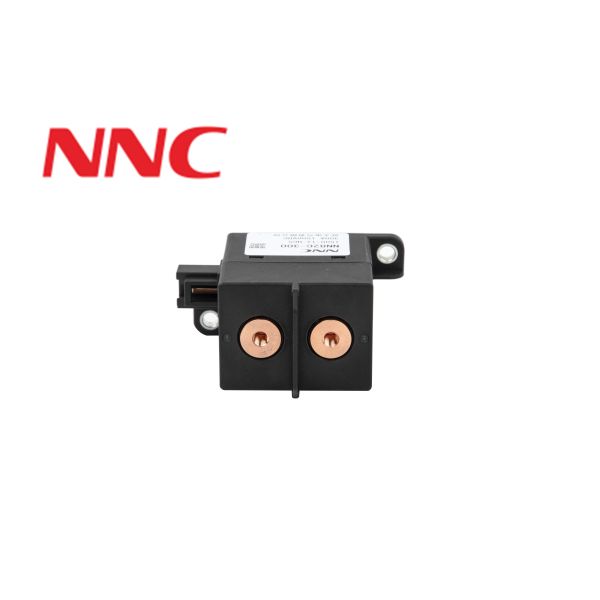

NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle
NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle
NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle
NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle
NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle
NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle
NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle
NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle
NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle
NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle
NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle
NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle
Specifications
Brand Name :
NNC
Model Number :
NNC82C-250(300)
Certification :
CE/TUV/UL/CCC
Place of Origin :
China
MOQ :
600pcs
Price :
get latest price
Payment Terms :
T/T
Supply Ability :
2k pcs 7 days
Delivery Time :
7-14 days
Theory :
New Energy Relay
Structure :
H(Normally Open)
Contact Material :
Silver Copper Alloy
Rated Load :
DC1500V 250A
Min Load Current :
6VDC/1A
Mechnical Life :
2*10^5 times
Electrical Life :
7.5*10^4 times
Description

New Energy Relay NNC82C Series

NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric VehicleNNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle

Specification

Main Contact Parameters

structure H
contact material silver copper alloy
contact resistance ≤0.3mΩ(@250A)
rated load DC1500V 250A
contact voltage drop /
electrical life
Making:
7.5×104 operations(140A 20VDC)
Breaking:
500 operations(250A 750VDC)
1 operation(1800A 500VDC)
1 operation(1500A 750VDC)
short-circuit current 8000A*(5ms),1 time
rated current 250A
min load current 6VDC/1A
mechanical life 200,000 times

Port Auxiliary Contact Parameters

structure /
contact resistance /
rated load /
switch electricity life /

Coil Parameters

Rated voltage (Vd.c) 12 24
input voltage (Vd.c) 9-16 18-32
operation voltage (Vd.c) 9 18
Release voltag (Vd.c) 1 2
Coil Resistance (2) (1 ± 7%) 24 96
Starting current(A) 0.5 0.5
Starting time(ms)max. / /
Nominal coil current(A) 0.5 0.5
Starting power consumption(W) 6 6
Steady state power consumption(W) 6 6

Insulation resistance between coil and contacts Above the 1,000 MQ
Between open contacts of same pole /
Between main and auxiliary contacts Above the 1,000 MQ
Dielectric strength between coil and contacts AC4000V/1 Minutes
Between open contacts of same pole /
Between main and auxiliary contacts AC4000V/1 Minutes
Shock Resistance 10kV (1.2*50 μ s)
operate time Below the 30ms
release time Below the 10ms
Suction and jump Below 5ms
Vibration sinusoidal vibration 10-500 Hz double amplitude 1.5mm,
acceleration 49 m / s²
Strike stability turn on 588m/s², cut off 196 m/s²
strength 588 m/s²
operating temperature -40～+70℃
(No ice, no condensation)
operating humidity 5～85%RH
weight 12V About 365g
24V About 365g
48V /

Product Diagram(mm)

NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle

NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle



NNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric VehicleNNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric VehicleNNC New Energy Relay NN82C 250-300A high load current with Non-polarity coil and load terminals for Electric Vehicle
