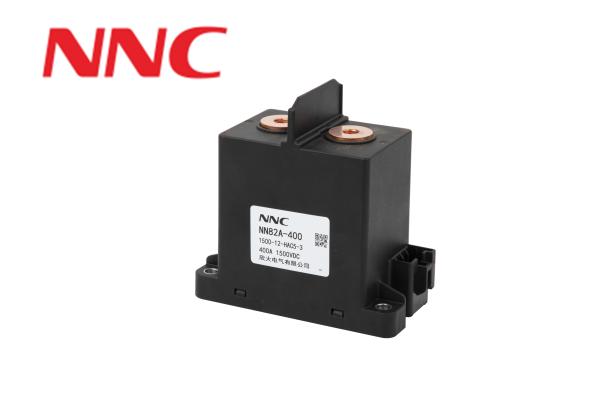

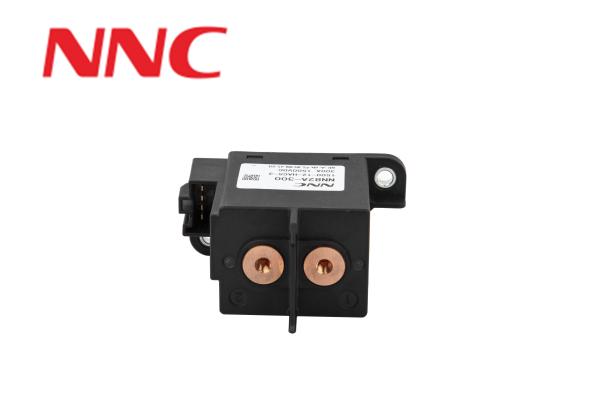

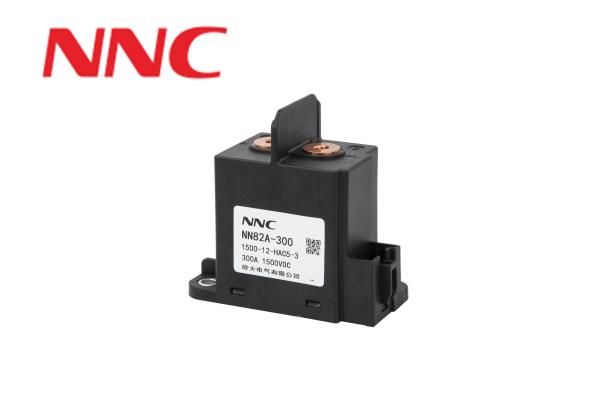

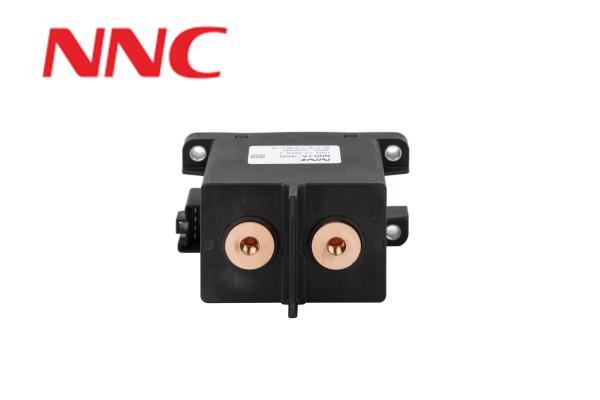

New Energy Relay NN82A 20-1000A high load current for Charging Pile, Energy Storage, Electric Vehicle
New Energy Relay NN82A 20-1000A high load current for Charging Pile, Energy Storage, Electric Vehicle
New Energy Relay NN82A 20-1000A high load current for Charging Pile, Energy Storage, Electric Vehicle
New Energy Relay NN82A 20-1000A high load current for Charging Pile, Energy Storage, Electric Vehicle
New Energy Relay NN82A 20-1000A high load current for Charging Pile, Energy Storage, Electric Vehicle
New Energy Relay NN82A 20-1000A high load current for Charging Pile, Energy Storage, Electric Vehicle
New Energy Relay NN82A 20-1000A high load current for Charging Pile, Energy Storage, Electric Vehicle
New Energy Relay NN82A 20-1000A high load current for Charging Pile, Energy Storage, Electric Vehicle
Specifications
Brand Name :
NNC
Model Number :
NNC82A-500
Certification :
CE/TUV/UL/CCC
Place of Origin :
China
MOQ :
600pcs
Price :
get latest price
Payment Terms :
T/T
Supply Ability :
2k pcs 7 days
Delivery Time :
7-14 days
Theory :
New Energy Relay
Structure :
H(Normally Open)
Contact Material :
Silver Copper Alloy
Rated Load :
DC1500V 500A
Min Load Current :
6VDC/1A
Mechnical Life :
2*10^5 times
Electrical Life :
1*10^4 times
Description

New Energy Relay NNC82A Series

New Energy Relay NN82A 20-1000A high load current for Charging Pile, Energy Storage, Electric VehicleNew Energy Relay NN82A 20-1000A high load current for Charging Pile, Energy Storage, Electric Vehicle

Specification

Main Contact Parameters

structure H
contact material silver copper alloy
contact resistance ≤0.3mΩ(@500A)
rated load DC1500V 500A
Impulse electricity life Steady-state 500A , C=1100,37.5V,20,000 times
divide power off life 500A /1500V,200 times
500A /1000V,500 times
500A /750V,1000 times
2000A /1000V, 1 time
1000A /1500V,1 time
switch electricity life /
short-circuit current 8000A*(5ms),1 time
rated current 500A
min load current 6VDC/1A
mechanical life 200,000 times

Port Auxiliary Contact Parameters

structure A
contact resistance ≤100mΩ
rated load 0.1A ,DC12V
switch electricity life 10,000 times

Coil Parameters

Rated voltage (Vd.c) 12, 24
input voltage (Vd.c) ≤9
operation voltage (Vd.c) 9~36
Release voltag (Vd.c) ≥5
Coil Resistance (2) (1 ± 7%) 3.1
starting current (A) 3.800
Startup time (ms) ≤150
rated current (A) 0.330
Startup power (W) 48
steady state power (W) 4
Insulation resistance between coil and contacts Above the 1,000 MQ
Between open contacts of same pole /
Between main and auxiliary contacts Above the 1,000 MQ
Dielectric strength between coil and contacts AC4000V/1 Minutes
Between open contacts of same pole /
Between main and auxiliary contacts AC4000V/1 Minutes
Shock Resistance 10kV (1.2*50 μ s)
operate time Below the 30ms
release time Below the 10ms
Suction and jump Below 5ms
Vibration sinusoidal vibration 10-500 Hz double amplitude 1.5mm,
acceleration 49 m / s²
Strike stability turn on 588m/s², cut off 196 m/s²
strength 588 m/s²
operating temperature -40～+70℃
(No ice, no condensation)
operating humidity 5～85%RH
weight 12V About 810g
24V About 810g
48V /

Product Diagram(mm)
