Dongfeng 5m3 5000litres Fuel Delivery Truck Refilling Tanker with Oil Dispenser
Dongfeng 5m3 5000litres Fuel Delivery Truck Refilling Tanker with Oil Dispenser
Dongfeng 5m3 5000litres Fuel Delivery Truck Refilling Tanker with Oil Dispenser
Dongfeng 5m3 5000litres Fuel Delivery Truck Refilling Tanker with Oil Dispenser
Dongfeng 5m3 5000litres Fuel Delivery Truck Refilling Tanker with Oil Dispenser
Dongfeng 5m3 5000litres Fuel Delivery Truck Refilling Tanker with Oil Dispenser
Dongfeng 5m3 5000litres Fuel Delivery Truck Refilling Tanker with Oil Dispenser
Dongfeng 5m3 5000litres Fuel Delivery Truck Refilling Tanker with Oil Dispenser
Specifications
Brand Name :
CLW
Model Number :
CLW5786cw
Certification :
CCC,ISO
Place of Origin :
Suizhou, China
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500Unit Per Month
Delivery Time :
20-30 working Days
Packaging Details :
Naked packing,Ro-ro,Bulk Ship
Chassis Brand :
Dongfeng, Sinotruk, Foton, Isuzu, etc
Tank size :
5000Liters,5tons,5m3
Tank Material :
Carbon Steel or Stainless Steel
Transport Oil Type :
Diesel, Petrol, Gasoline, Oil, Petroleum, Palm Oil
Compartment :
According to Customer Requirements
Oil Pump :
Optional
Oil Dispenser :
Optional
Function :
Diesel Gasoline Refilling, Transport
Warranty :
1 year
LOGO :
As customer's request
Working video :
yes
Description

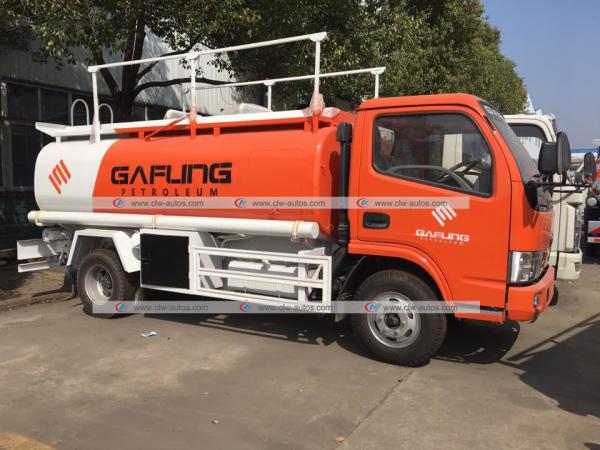

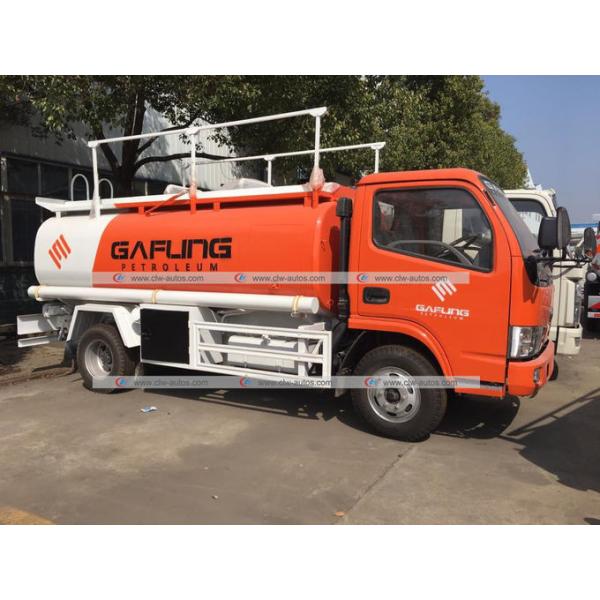

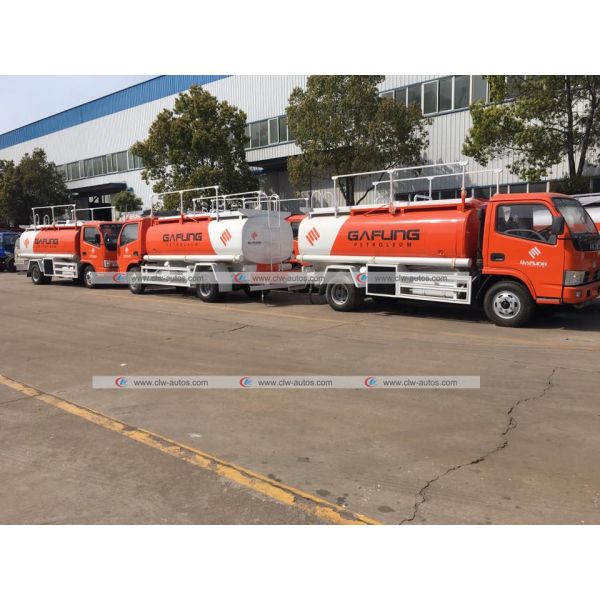

Dongfeng 5m3 5000liters Fuel Delivery Truck Refilling Tanker with Oil Dispenser

Product Description

1. Purpose: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Refueling System: Oil pump, Hose reel with filling gun/Oil dispenser machine

3. Advantage: High quality with competitive price.


Product Specification

General Technical Parameters
Overall Dimension 5995×2050x2500(mm)
Gross Vehicle Weight 7360(Kg)
Curb Weight 3765(Kg)
Chassis Specification
Chassis Brand Dongfeng
Drive model 4*2
Cabin Dongfeng, Single, LHD, with air conditioner
Number of Passengers 2
Engine Model 4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, with ABS.
Power 75KW/102HP
Emission standard EURO 2
Fuel type Diesel
Gearbox 5 Forwards & 1 Reverse, manual operation. With power steering.
Brake System Oil break
Wheel Base 3308mm
Front/Rear Axle Loading 2000/4000(Kg)
Tire 7.00-16, 6pcs with 1 spare tire
Max Driving Speed 90(km/h)
Upperstructure Specification
Oil Tank Effective Volume 5CBM/5000Liters
Transport Oil Type Diesel
Tank dimension 4000x1700x1100
Tank Thickness 4mm
Tank Material Q235, carbon steel( also can choose stainless steel,aluminum )
Refueling System

1. Oil pump;

2. Oil dispenser machine;

3. Hose reel with filling gun.
Equipment

1. Manhole 1 Unit

2. Ladder handrail

3. Electrostatic Wire Reel

4. Loading, Discharge

5. Emergency cut-off valve 1 Unit
Options Compartments, unloading valve, flow meter, API standard manhole, oil vapor recovery, anti-overflow probe.

Fuel dispenser truck diagram

Dongfeng 5m3 5000litres Fuel Delivery Truck Refilling Tanker with Oil Dispenser

Dongfeng 5m3 5000litres Fuel Delivery Truck Refilling Tanker with Oil Dispenser

Dongfeng 5m3 5000litres Fuel Delivery Truck Refilling Tanker with Oil DispenserDongfeng 5m3 5000litres Fuel Delivery Truck Refilling Tanker with Oil DispenserDongfeng 5m3 5000litres Fuel Delivery Truck Refilling Tanker with Oil Dispenser
