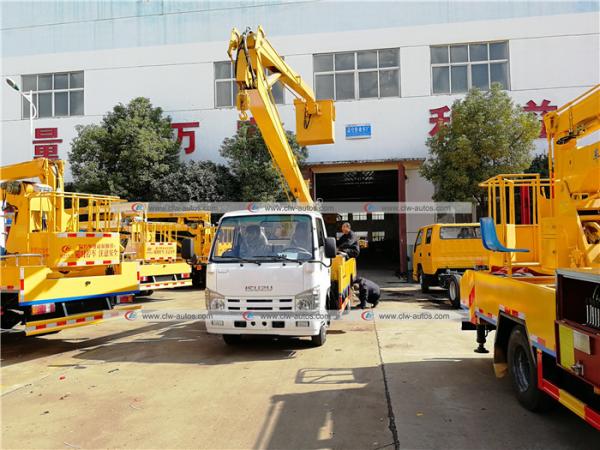

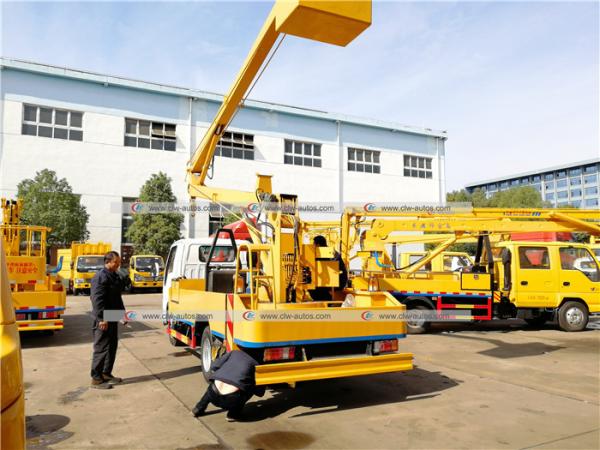

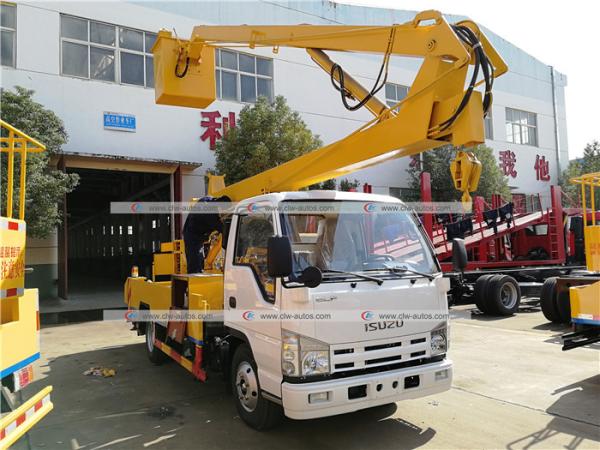

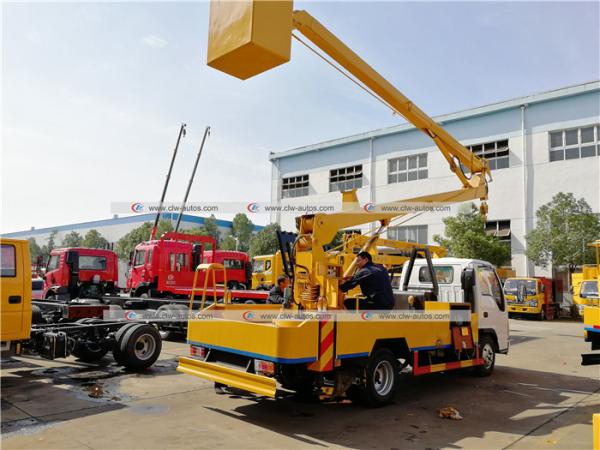

ISUZU 14-16m High Altitude Operation Trucks Aerial Bucket Truck High Lifting Platform Truck
ISUZU 14-16m High Altitude Operation Trucks Aerial Bucket Truck High Lifting Platform Truck
ISUZU 14-16m High Altitude Operation Trucks Aerial Bucket Truck High Lifting Platform Truck
ISUZU 14-16m High Altitude Operation Trucks Aerial Bucket Truck High Lifting Platform Truck
ISUZU 14-16m High Altitude Operation Trucks Aerial Bucket Truck High Lifting Platform Truck
ISUZU 14-16m High Altitude Operation Trucks Aerial Bucket Truck High Lifting Platform Truck
ISUZU 14-16m High Altitude Operation Trucks Aerial Bucket Truck High Lifting Platform Truck
ISUZU 14-16m High Altitude Operation Trucks Aerial Bucket Truck High Lifting Platform Truck
Specifications
Brand Name :
CLW
Model Number :
CLW5786cw
Certification :
CCC,ISO
Place of Origin :
Suizhou, China
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500Unit Per Month
Delivery Time :
20-30 working Days
Packaging Details :
Naked packing,Ro-ro,Bulk Ship
Chassis Brand :
Isuzu, Sinotruk,Howo,Dongfeng, Foton,etc
Arm Type :
Folded or Telescopic
Max Working Height :
12 meters,14 meters,16 meters,
Turning Angle :
360 Degree
Front Legs :
H Shape
Rear Legs :
H Shape
Warranty :
1 year
Working video :
yes
LOGO :
As customer's request
Description

ISUZU 14-16m High Altitude Operation Trucks Aerial Bucket Truck High Lifting Platform Truck

Description:
1. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
2. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
3. 360 degree Rotation Arms.
4. Arm and H leg Automatic Locking System to secure safety handling.

ISUZU Aerial Platform Truck
Overall dimensions 8450×2050×3100 mm
Wheel base 3800 mm
F/R track base 1015/2280mm
Approach/departure angle 24/10°
Front / Rear Axle 2Ton / 4.8Ton
Cabin ISUZU 600P cabin, Double Row, Left Hand Driving, with A/C, Radio
Engine 4KHF-TCG40, Diesel type, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling, Euro IV
Displacement/ HP 2999ml / 120hp
Gearbox ISUZU 5 foward &1 reverse
Steering Gear Hydraulic Power Steering
Max speed 90 km/h
Tire specification 7.00-16, 6 Pieces
Traction system 4x2
Equipment 1. Max operation height:16m
(including 1.7meter person height, net height is 14.3meter),
2. Max operation radius≤ 9.2m,
3. Max working platform height≤12.5m,
4. Working platform rating loading≤200kg,
5. Working platform rating allowable passengers=2,
6. Working platform dimension:1100*570*1000mm,
7. 360°turning(left or right), 4 H-shape legs.
8.The cage be operated both in the air and on the earth
9. Control System: Manually
10. Hook Lifting Height: 6meters, Hook Lifting Weight: 800kg

ISUZU 14-16m High Altitude Operation Trucks Aerial Bucket Truck High Lifting Platform TruckISUZU 14-16m High Altitude Operation Trucks Aerial Bucket Truck High Lifting Platform Truck

ISUZU 14-16m High Altitude Operation Trucks Aerial Bucket Truck High Lifting Platform TruckISUZU 14-16m High Altitude Operation Trucks Aerial Bucket Truck High Lifting Platform Truck
