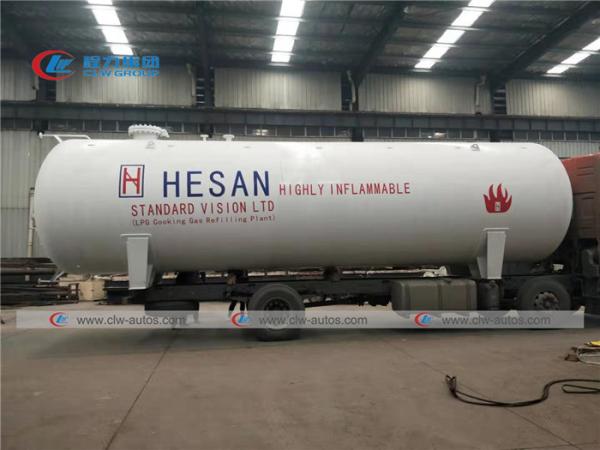

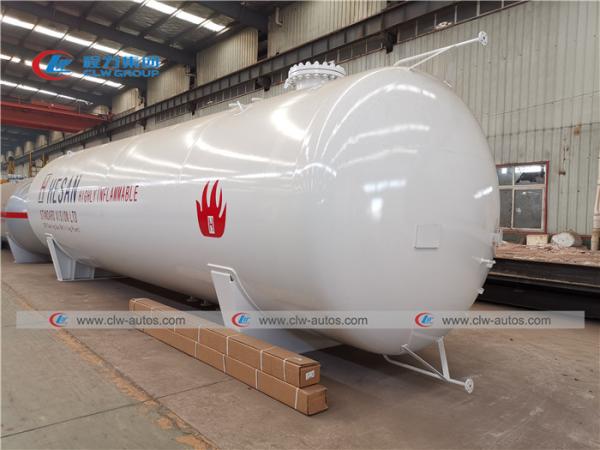

60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station
60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station
60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station
60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station
60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station
60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station
60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station
60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station
60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station
60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station
60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station
60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station
Specifications
Brand Name :
CLW
Model Number :
ASME,CCC,SGS,BV
Certification :
CLW9522
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units/Month
Delivery Time :
20~30 days after receiving deposit
Packaging Details :
Naked Package,Bulk Ship,Roll-Roll
Size Option :
10mt,15mt,20mt,30mt,40mt,50mt,60mt,
Material :
Carbon Steel Q345R
Filling Medium :
Propane,butane
Tank Diameter :
DN2700mm
Design Pressure: :
1.71Mpa
Hydraulic Test Pressure :
2.21MPa 22.1bar
Level Gauge :
Rotogage Or Megnatic Type
Tank Valves :
Cut-off Valve, Needle Valve, Safety Valve, Return Valve etc..
LOGO :
As per request
Warranty :
one year
Diagram :
yes
Shell Thickness :
14 mm
End Thickness :
16 mm
Corrosion Allowance :
1 mm
Usage :
LPG Gas Storage, Station Tank
Life Time :
20 years
Description

60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station

Product Description

1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of lpg gas plant tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

Specification of 30mt filling station gas tank

Parameter of 60000liters 30tons filling station gas tank
ITEM PARAMETER ITEM PARAMETER
Volume 60cbm Thickness of Shell 14mm
Tank Material Q345R Thickness of End plate 16mm
Overall Size 10962*2728*3318mm Tank Net Weight 12750kg
Tank Diameter 2700mm Loading Capacity 23940kg
Design Pressure 1.77Mpa Gas Density 420kg/M3
Hydraulic Test Pressure 2.22Mpa Corrosion Allowance 1mm
Design Temperature -20ºC~60ºC Heat Treatment Bulk
Vapor Outlet DN50 Gas Outlet DN50
Life time 15 years
Accessories
Model Item Qty Junction surface
J41N-2.5-50 Stop Valve DN50 6 RF
J41N-2.5-25 Stop Valve DN25 2 RF
J41N-2.5-100 Stop Valve DN100 1 RF
J24W-320-DN6 J24W Needle Valve M20*1.5 1
HG21584-95 Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 1 RF
A42F-25-100 Safety Valve DN100 1 RF
Y-100T Pressure Gauge M20*1.5 1.5degree 0~4Mpa 1
WTQ-280 Thermometer M33*2 2.5 degree 1 -40ºC~60ºC

60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station

60cbm LPG Storage Tank Liquid Propane Ammonia Butane Gas Bullet Tank for Gas Station
