10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria
10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria
10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria
10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria
10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria
10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria
10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria
10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria
10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria
10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria
10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria
10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria
Specifications
Brand Name :
CLW
Model Number :
CLW9603
Certification :
CCC ISO ASME
Place of Origin :
Suizhou,China
MOQ :
1 unit
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300units/month
Delivery Time :
Within 30days after received advance payments
Packaging Details :
Naked package
Material :
Q345R/Q370R/ASME Carbon Steel
Condition :
New
Design :
1.71 Mpa
Hydraulic Test Pressure :
2.21MPa 22.1bar
Loading Material :
Propane/Liquefied Petroleum Gas/LPG
Volume :
5tons,5mt,10cbm,10m3,10000liters
Pump Brand :
Corken, Blackmer, Chinese Brand
Corrosion Allowance :
1 mm
Color :
Customized LOGO
Life Time :
20 Years
Warranty :
1 year
Description

10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria

Product Description

1. mobile filling station is used for refilling in home use cylinder in different size.
2. One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale or automated filling dispenser(single nozzle or double nozzle) with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of mobile filling station is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of mobile filling station: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline of mobile filling station: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment of mobile filling station: Sunshade for filling area, Leakage Detector,ex-proof lamp,water sprinkler system


Technical Specifications

Specification of 5tons 10000L lpg gas refilling station
Volume of Tank 10CBM(10,000liters) 5tons
Filling weight(Kg) 5000
Thickness of Shell (mm) 10 mm
Thickness of Endplate (mm) 10 mm
Tank Diameter (mm) 1600 mm
Tank Dimensions (mm) (length x width x height) 5260X1620X2210mm
Material of Tank and Main Pressure Parts Carbon Steel Q345R
Filling Medium Liquefied Petroleum Gas ( Propane)
Design Pressure 1.71 MPa
Corrosion Allowance 1 mm
Medium Density 500-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Specification of LPG Pump and Motor
Item Specification
Specification of the Motor
Model Chinese famous brand
Revolving speed 1470 r/min
Power 5.5 kw
Voltage 380 V
Protection grade Anti explosive
Specification of the hydrocarbon Pump
Model YQB15-5
Medium Liquid petroleum gas
Speed 15 m3/h
Input and Output Diameter 50 mm
Working pressure 2.0 Mpa
Working temperature -40ºC- 50ºC
Material carbon steel

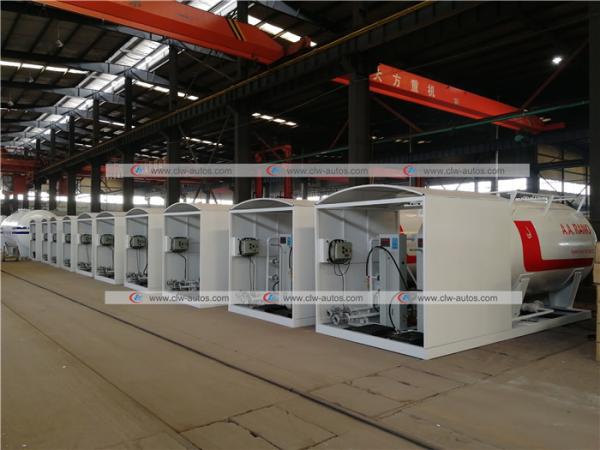

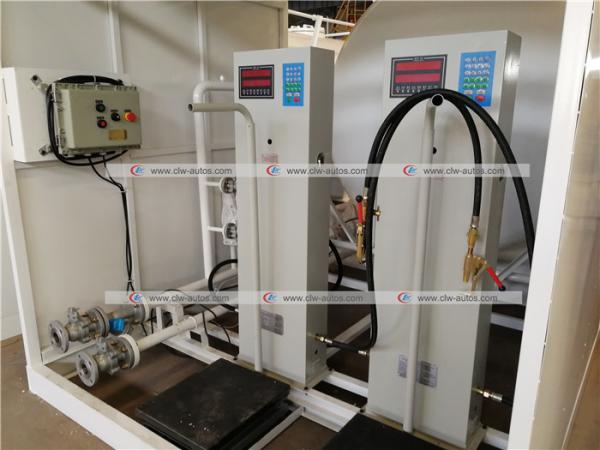

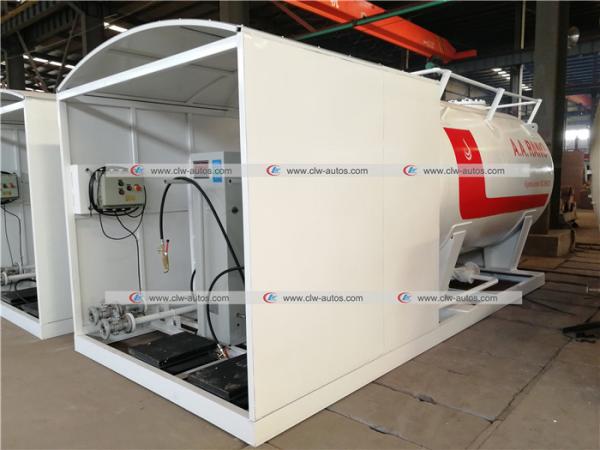

Detail Photos

10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria

10Units 10,000Liter LPG Skid Plant Cooking Gas Skid Station in Nigeria

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
