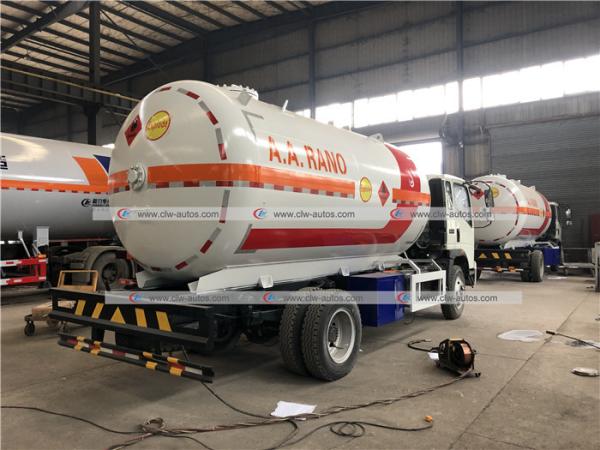

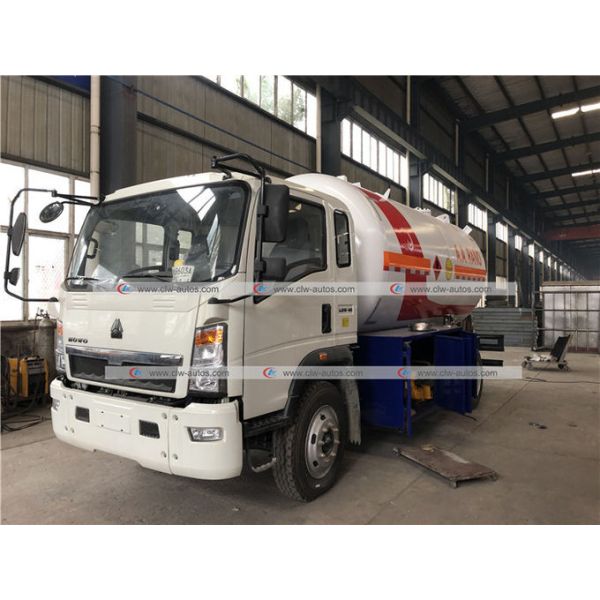

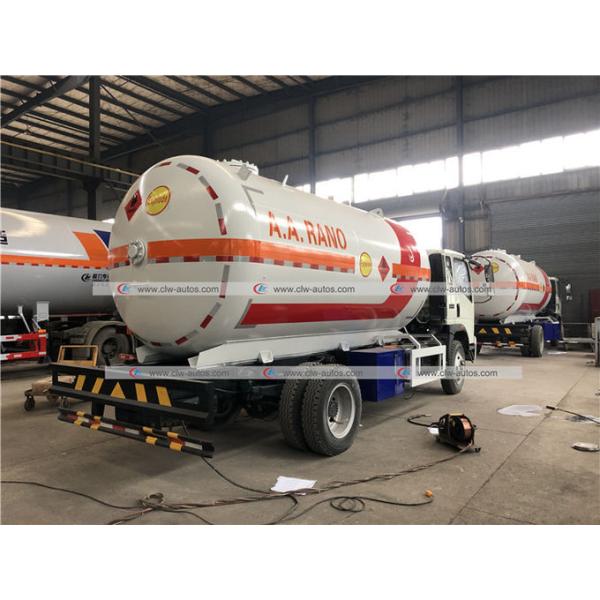

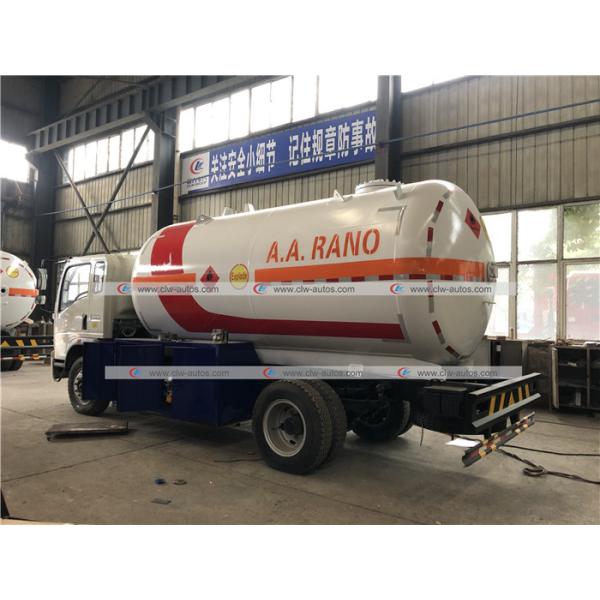

HOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker Truck
HOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker Truck
HOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker Truck
HOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker Truck
HOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker Truck
HOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker Truck
HOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker Truck
HOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker Truck
HOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker Truck
HOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker Truck
Specifications
Brand Name :
CLW
Model Number :
ASME,CCC,SGS,BV
Certification :
CLW9522
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units/Month
Delivery Time :
20~30 days after receiving deposit
Packaging Details :
Naked Package,Bulk Ship,Roll-Roll
Loading capacity :
4t 4ton 4tons 5t 5tons 5ton 5mt 4mt
Material :
Carbon Steel Q345R
Filling Medium :
Propane,butane
Design Pressure: :
1.61Mpa
Hydraulic Test Pressure :
2.21MPa 22.1bar
Level Gauge :
Manual Rotation,Float Ball,Rochester
Shell Thickness :
10mm
End Thickness :
10mm
Corrosion Allowance :
1 mm
Usage :
Cylinder refilling
LOGO :
As per request
Life Time :
20 years
Description

HOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker Truck

Product Description

1. Truck Brand of LPG Bobtail Truck : Howo,optional for dongfeng,faw,isuzu,foton,shacman,JAC and other brands

2. Tank Size of LPG Bobtail Truck : 6,000liters ,8000liters, 10,000liters, 15,000liters, 20,000liters

3. Function of LPG Bobtail Truck : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling

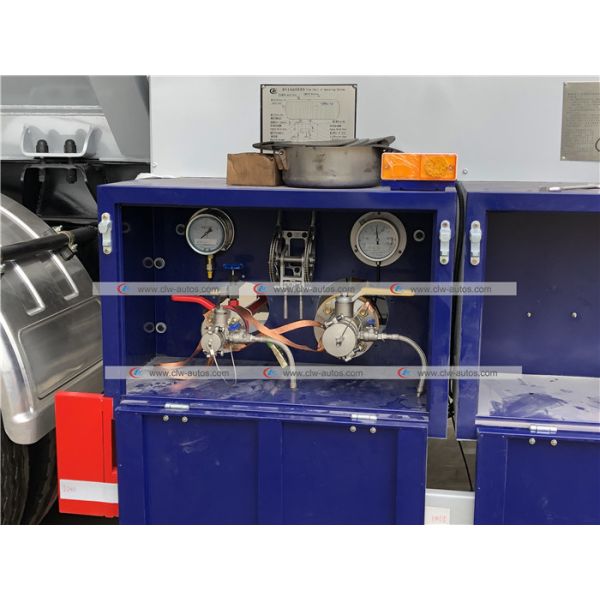

4. Refiling System of LPG Bobtail Truck : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel

Specification of lpg storage tank

1. Specification of 10CBM Upper Tanker
Item Unit Parameter
Thickness of Shell mm 10.0
Thickness of Endplate mm 10.0
Corrosion Allowance mm 1.0
Fact cubic meters cbm 10cbm(10,000L)
Loading capacity kg Approx.4750 kg
Working temperature ºC -40/+55 oC
Tank material mm Carbon Steel Q345R(Pressure Vessel Steel)
Manhole mm DN450(18 inch)
Safety Valve mm DN50(2 inch)
Liquid Line mm DN50(2 inch)
Gas Line mm DN50(2 inch)
2. Specification of Chassis
Condition New condition/Left hand drive/4x2


Main details		 Brand and Model SINOTRUK HOWO
Wheelbase(mm) 3950/4200/4400/4500/4700/5000/5200
Front/Rear overhang(mm) 1205/2310
Approach/Departure angle(°) 18/12
Max. driving speed(km/h) 90
Clutch Reinforced diaphragm clutch
Brakes Service brake: dual circuit compressed air brake.
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6pcs with one spare tire
Specifications 8.25R20/9.00-20/9.00R20/10.00-20/10.00R20
Transmission Manual type, 6 Forwards and 1 reverse
Cabin It can accommodate three people, With Air conditioner
Engine Brand and Model Optional
Fuel type Diesel
Emission standard Optional

HOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker TruckHOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker TruckHOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker TruckHOWO 5mt 5t 5tons LPG Dispenser Truck Cylinder Filling Tanker Truck
