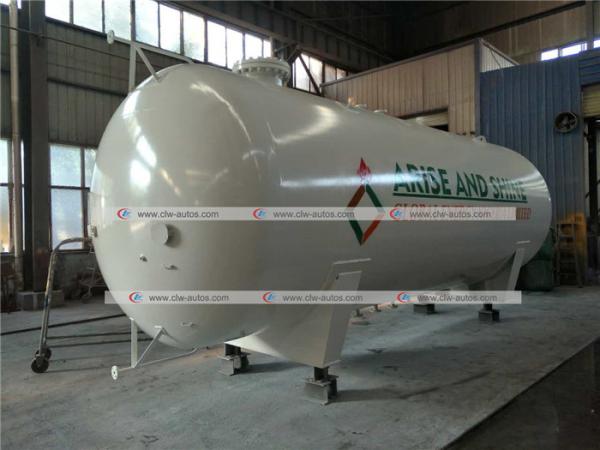

40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station
40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station
40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station
40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station
40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station
40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station
40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station
40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station
40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station
40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station
Specifications
Brand Name :
CLW
Model Number :
ASME,CCC,SGS,BV
Certification :
CLW9522
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units/Month
Delivery Time :
20~30 days after receiving deposit
Packaging Details :
Naked Package,Bulk Ship,Roll-Roll
Size Option :
40cbm,40m3,20tons,20mt,40,000Liters
Material :
Carbon Steel Q345R
Filling Medium :
Propane,butane
Tank Diameter :
DN2700mm
Design Pressure: :
1.71Mpa
Hydraulic Test Pressure :
2.21MPa 22.1bar
Level Gauge :
Rotogage Or Megnatic Type
Tank Valves :
Cut-off Valve, Needle Valve, Safety Valve, Return Valve etc..
LOGO :
As per request
Warranty :
one year
Diagram :
yes
Shell Thickness :
14 mm
End Thickness :
16 mm
Corrosion Allowance :
1 mm
Usage :
LPG Gas Storage, Station Tank
Life Time :
20 years
Description

40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station

Product Description

1. Storage medium of storage tanks : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of storage tanks : 5m³~200m³,2ton~100tons
3. Manufacturing standards of storage tanks : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional for storage tanks equipments as follows,
lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

Specification of 25mt storage tanks

40 CBM LPG Tank Specifications
Volume of Tank 40 CBM
Filling Weight 9380 kg
Tank Weight 15960 kg
Thickness of Shell (mm) 12 mm
Thickness of Head (mm) 14 mm
Tank Diameter 2300 mm
Overall Size
(length x width x height)		 9270*2428*3018(mm)
Material of Tank Carbon Steel Q345R
Design Pressure 1.71 MPa
Hydraulic Test Pressure 2.21 Mpa
Design Temperature -20ºC~50ºC
Heat Treatment Bulk
Corrosion Allowance 1 mm
Vapor Outlet DN50
Gas Outlet DN50
Life Time 15 years
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Standard Accessories of LPG Tank
Model Item Qty Junction Surface
A42F-25-100 Safety Valve DN100 1 RF
J41N-2.5-50 Stop Valve DN50 6 RF
J41N-2.5-25 Stop Valve DN25 2 RF
J41N-2.5-100 Stop Valve DN100 1 RF
J24W-320-DN6 J24W Needle Valve M20*1.5 1 /
HG21584-95 Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 1 RF
Y-100T Pressure Gauge M20*1.5 1.5degree 0~4Mpa 1 /
WTQ-280 Thermometer M33*2 2.5 degree 1 -40ºC~60ºC

40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station

40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station40cbm 40000liters 20tons LPG Storage Tank Cooking Gas Refilling Station
