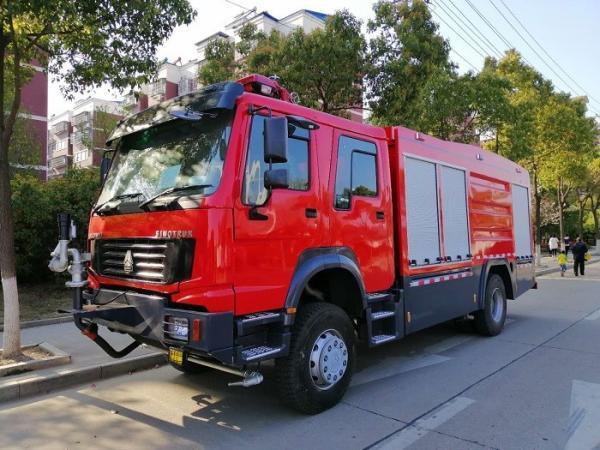

Howo Dry Powder Fire Rescue Truck 4X4 3000L Water 1000 Liters Foam High Performance
Howo Dry Powder Fire Rescue Truck 4X4 3000L Water 1000 Liters Foam High Performance
Howo Dry Powder Fire Rescue Truck 4X4 3000L Water 1000 Liters Foam High Performance
Howo Dry Powder Fire Rescue Truck 4X4 3000L Water 1000 Liters Foam High Performance
Howo Dry Powder Fire Rescue Truck 4X4 3000L Water 1000 Liters Foam High Performance
Howo Dry Powder Fire Rescue Truck 4X4 3000L Water 1000 Liters Foam High Performance
Howo Dry Powder Fire Rescue Truck 4X4 3000L Water 1000 Liters Foam High Performance
Howo Dry Powder Fire Rescue Truck 4X4 3000L Water 1000 Liters Foam High Performance
Specifications
Brand Name :
CLW
Model Number :
CLW5167
Certification :
CCC,BV,SGS,ISO
Place of Origin :
Suizhou,China
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 units/month
Delivery Time :
40 days after receiving deposit
Packaging Details :
Naked,Waxed,Bulk Ship,Ro-Ro
Chassis Brand :
Dongfeng,Howo,ISUZU,Shacman,CAMC,Foton
Capacity :
10t,10tons,10ton,10000liters,10000L
Type :
Foam,dry powder,water tank,rescue fire truck
Fire Pump :
Chinese brand Vacuum pump
Fire monitor :
≥65M
Flow rate of monitor :
48-64L/s@1.0-1.2Mpa
Flow rate of pump :
60L/s
Steering :
LHD or RHD
Description

Howo Dry Powder Rescue Fire Truck 4X4 3000L Water 1000Liters foam 500L Dry Powder

Product Description

1. Dry Powder Rescue Fire Truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.

2) To ensure good performance of Dry Powder Rescue Fire Truck,Dry Powder Rescue Fire Truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).

3) Dry Powder Rescue Fire Trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.

4) Loading capacity range of Dry Powder Rescue Fire Trucks:2ton,2t,3ton,5ton,6tons,8ton,10tons,12ton,14ton,16ton

Spec. of Howo Dry Powder Rescue Fire Truck 4X4 3000L Water 1000Liters foam 500L Dry Powder

Model Parameters others
Overall Dimension 8470*2500*3640mm
GVW 16000kg
Engine Model WD615.87
Engine Power 213kW
Wheelbase 4600mm
Driving Type 4X4
Max.speed 102km/h
Emission Standard 9726ml/kW Euro2
Fire pump rated flow 60L/s@1.0Mpa, 30L/s@2.0Mpa Vacuum pump
water monitor rated flow 48-64L/s@1.0-1.2Mpa (ajustable) Straight stream/spray/mist spray
Water monitor range Water range≥65m,Foam≥60m
Passengers 2+4
Approach angle ≥16°
Departure angle ≥19°

Item Parameters Parameters others
1 Tank capacity water 3000㎏
Foam 1000㎏
Dry powder 500kg
2 Fire pump model CB20.10/30.60 Shanghai rongshen
3 Fire pump performance

Pressure 1:1.0Mpa flow:60L/S

Pressure 2: 2.0Mpa flow:30L/S

Use vacuum pump

to priming water
4 the installation site of fire pump rear
5

The quantity of fire

pump water outlet

 6
Dry powder tank pressure 0.5Mpa~1.7Mpa
6 Pressure gauge 0-2.5 MPa 2.6 level
7 Vacuum gauge -0.1- -1 MPa 2.6 level

8

Water monitor

(PL48-64)

 Injection pressure

water:≥65m

Foam: ≥60m

 Zhangqiu
1.0~1.2Mpa
Depression/Elevation angle -15-+75°
Turning angle 340°
9 Foam proportioner 3%-5%
10 PTO Model

YTQ800F type full power

sandwich , pneumatic

 Sinotruk

Fire fighting equipment
Item Item parameters unit quantity
1 sucking hose(DN135) Φ135×2ｍ piece 4
2 water filter(FLF135) Φ135 piece 1
3 Water collector FJ135 piece 1
4 Adapter kJ65/80 piece 2
5 Adapter (KT135) 135 to 100mm piece 1
6 sucking pipe wrench FS135 piece 2
7 fire hydrant wrench FB400 piece 1
8 underground fire hydrantwrench FBA1000 piece 1
9 water hose 20-65－20m disc 8
10 water hose 20-80－20m disc 4
11 straight stream nozzle QZG19 piece 1
12 diversion spray nozzle QZH19 piece 1
13 Foam nozzle PQ8 Piece 1
14 Foam nozzle PQ16 piecec 1
15 Water distributor FFS80 piece 1
16 hose protector HQ600(wooden) pair 2
17 Fire spade Piece 1
18 Fire crowbar piece 1
19 hose hook FG600 piece 2
20 hose gaiter FP470 piece 4
21 fire axe 817mm piece 1
22 pickax piece 1

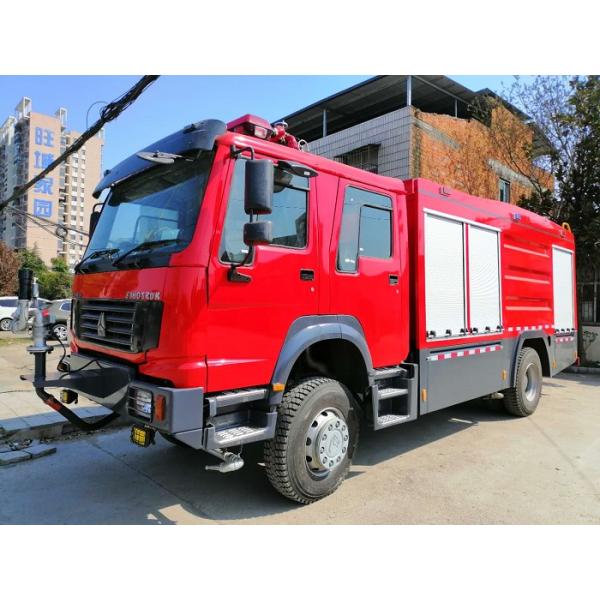

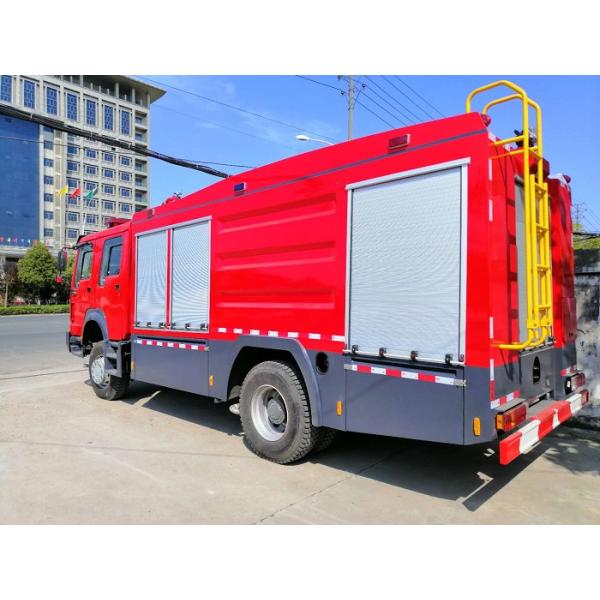

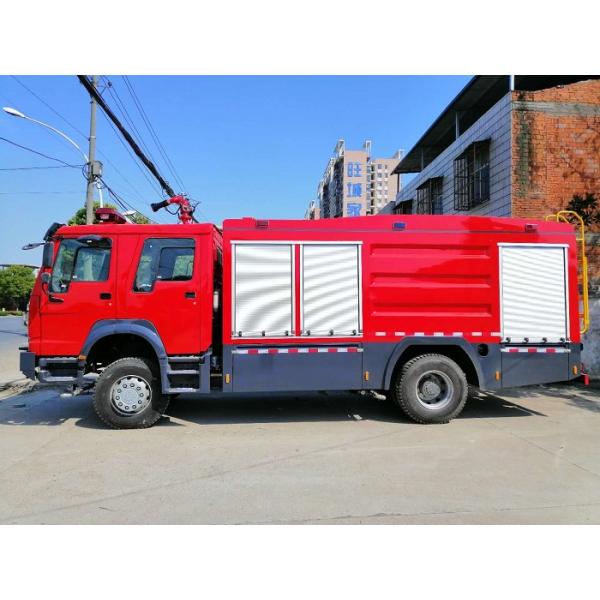

Products Show

Howo Dry Powder Fire Rescue Truck 4X4 3000L Water 1000 Liters Foam High Performance
Howo Dry Powder Fire Rescue Truck 4X4 3000L Water 1000 Liters Foam High Performance
Howo Dry Powder Fire Rescue Truck 4X4 3000L Water 1000 Liters Foam High Performance
Howo Dry Powder Fire Rescue Truck 4X4 3000L Water 1000 Liters Foam High Performance
Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

FAQ

Q1: What kinds of Dry Powder Rescue Fire Truck I can order from your company?


A: There are various sizes and types of Dry Powder Rescue Fire Trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied Dry Powder Rescue Fire Trucks to any overseas companies?


A: Yes,with need of government project,we offered Dry Powder Rescue Fire Trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
