3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer
3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer
3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer
3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer
3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer
3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer
3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer
3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer
3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer
3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer
3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer
3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer
Specifications
Brand Name :
CLW
Model Number :
CLW9400PBG
Certification :
CCC,BV,SGS,ISO
Place of Origin :
Suizhou,China
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 units/month
Delivery Time :
20~25 days after receiving deposit
Packaging Details :
Naked,Waxed,Bulk Ship,Ro-Ro
Axle Quantity :
3 No.
Axle brand :
FUWA/L1/Germany brand BPW
Tire Quantity :
Single tire 7No./Double tire 13No.
Suspension :
Mechanical/Air suspension
Material :
Carbon steel
Floor thickness :
3.0mm; 4.0mm
Description

3 Axle Flatbed semi trailer 40ft container trailer double tires and single tires container trailer

Product Description
1. Purpose: It used for transporting all kinds container and normal cargo.
2. Main parts: Suspension, Tire and axles.
3. Axle: Most of our customer all choose BPW or FUWA brand axle.
4. Tire: Double tire or Single tire for optional.
5. Landing leg: JOST or FUWA brand.
6. Suspension system: Mechanical suspension system is most customer's choose and some of our client will adopts air suspension system.

3 Axle Double Tire Flatbed Trailer Specification
Tare Weight 7700 kg
Payload 45000 kg
Overall Length 12460 mm
Overall Width 2480 mm
Overall Height 1440 mm
I Beam & Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle 3 Axles, FUWA brand 13 ton,
Suspension Heavy duty mechanical suspension
Floor 3mm checker plate
Leaf Spring 10 piece Leaf spring
King Pin JOST brand 2” Bolt-in King Pin
Landing Gear FUWA brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 13 pieces 8.25-22.5 steel wheel rim
Tire 13 pieces 12R22.5 tire with one spare tire.
Twist Lock 12 pieces of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare Tire One set of spare tire including a carrier
Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories One standard tool box

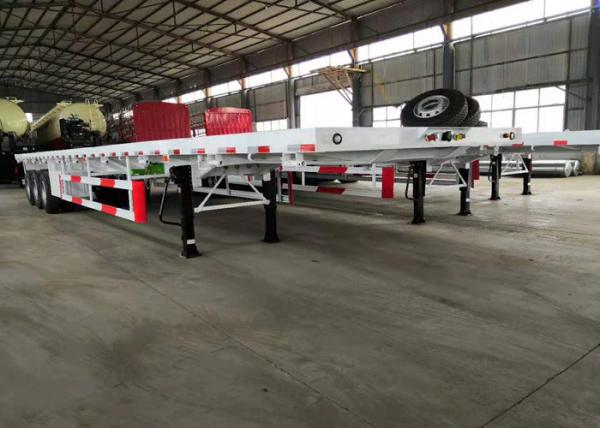

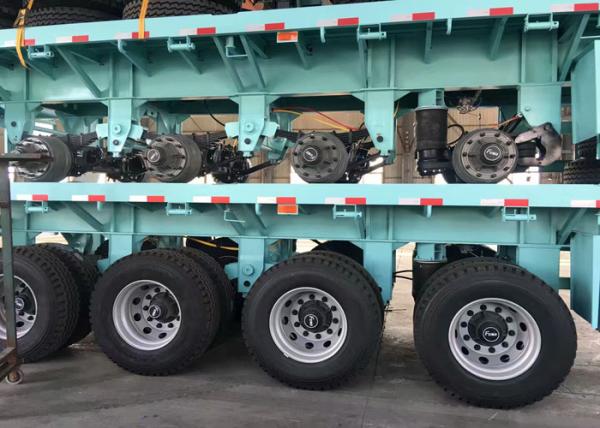

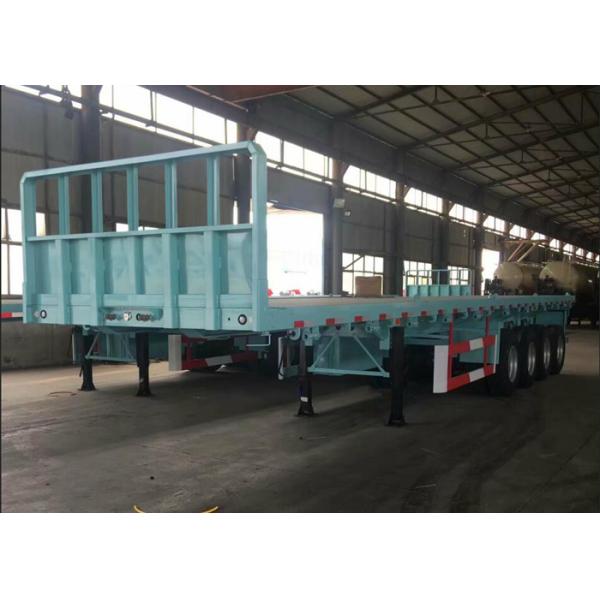

Products Show
3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer

3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer

3 Axle Flatbed Semi Trailer 40ft Double Tires / Single Tires Container Trailer

Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of container semi trailer I can order from your company?
A: We can supply all kinds of container semi trailer. 20ft, 40ft etc.

Q2: Can we adopts International brand for the key parts of this kind of container semi trailer?
A: Sure. All key part of our bitumen tank truck and trailer all have International brand for optional. Such as Axles and Landing leg, we have BPT axle and JOST brand landing leg for optional.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
