500 Gallons Fire Department Trucks 2 Tons Small Fire Tanker Good Performance
500 Gallons Fire Department Trucks 2 Tons Small Fire Tanker Good Performance
500 Gallons Fire Department Trucks 2 Tons Small Fire Tanker Good Performance
500 Gallons Fire Department Trucks 2 Tons Small Fire Tanker Good Performance
500 Gallons Fire Department Trucks 2 Tons Small Fire Tanker Good Performance
500 Gallons Fire Department Trucks 2 Tons Small Fire Tanker Good Performance
500 Gallons Fire Department Trucks 2 Tons Small Fire Tanker Good Performance
500 Gallons Fire Department Trucks 2 Tons Small Fire Tanker Good Performance
Specifications
Brand Name :
CLW
Model Number :
CLW5101
Certification :
CCC,BV,SGS,ISO
Place of Origin :
Suizhou,China
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 units/month
Delivery Time :
40 days after receiving deposit
Packaging Details :
Naked,Waxed,Bulk Ship,Ro-Ro
Chassis Brand :
Dongfeng,Howo,ISUZU,Shacman,CAMC,Foton
Capacity :
2tons,3ton,2t,3t,2ton,3ton
Type :
water tank ,foam,dry powder,rescue fire truck
Fire Pump :
Chinese brand
Fire monitor :
≥50M
Flow rate of monitor :
48L/s
Flow rate of pump :
60L/s
Steering :
LHD
Description

500 gallons Fire Pumer Truck 2tons Fire Truck Water Tank 2000L Small Fire tanker

Product Description

1. Fire Pumer Truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.

2) To ensure good performance of Fire Pumer Truck,Fire Pumer Truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).

3) Fire Pumer Trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.

4) Loading capacity range of Fire Pumer Trucks:2ton,2t,3ton,5ton,6tons,8ton,10tons,12ton,14ton,16ton

Spec. of 500 gallons Fire Pumer Truck 2tons Fire Truck Water Tank 2000L Small Fire tanker

Model Parameters others
Overall Dimension 6645×1880×2760mm
GVW 7300kg
Engine Model 4KH1-TCG40
Engine Power 88kW
Wheelbase 3815mm
Driving Type 4×2
Max.speed 105km/h
Emission Standard 2999ml Euro4
Passengers 2+3
Fire pump rated flow 20L/s@1.0Mpa Vacuum pump
water monitor rated flow 20L/s@1.0MPa
Water monitor range Water range≥45m
Approach angle ≥21°
Departure angle ≥13°
Item Parameters Parameters others
1 Water tank capacity water 2000kg Built-in type
2 Fire pump model CB10/20 Shanghai rongshen
3 Fire pump performance 20L/s@1.0MPa Use vacuum pump to priming water
4 the installation site of fire pump rear
5 The quantity of fire pump water outlet 2
6 Pressure gauge 0-1.6 Mpa 2.6 level
7 Vacuum gauge -0.1- -1 MPa 2.6 level

8

Water monitor

(PS20)

 Injection pressure water:≥45m
1.0Mpa
Depression/Elevation angle -15°~+60°
Turning angle 360°
9 PTO Model YTQ200 (12V), MOTOR

Equipment list of Fire Pumer Trucks

Item Item parameters unit quantity
1 sucking hose Φ100×2ｍ piece 4
2 water filter FJF100 piece 1
3 water collector FJ100 piece 1
4 sucking pipe wrench FS100 piece 2
5 fire hydrant wrench FB450 piece 1
6 underground fire hydrantwrench FBA800 piece 1
7 13 type water hose ф13*65—20 disc 4
8 16 type water hose ф16*65—20 disc 4
9 Injecting Water hose 13*65—5 set 2
10 Adapter KJ65/80(hook inside) Φ80mm×Φ65mm set 2
11 Adapter KT100/100 set 1
12 straight stream nozzle QZ19 piece 1
13 Straight stream switch nozzle QZG19 piece 1
14 Multi-function nozzle QLH19 piece 1
15 water distributor Φ80 inlet Φ65 outlet piece 1
16 hose protector FH80 pair 1
17 Fire spade 2＃ Piece 1
18 Fire crowbar GT06 piece 1
19 hose hook FG600 piece 4
20 hose gaiter FP470 piece 4
21 fire axe GFP890 piece 1
22 Waist axe GF325 piece 1
23 Fire bucket piece 1
24 fire extinguisher MFZ2 piece 1
25 Original chassis tools and accessories set 1

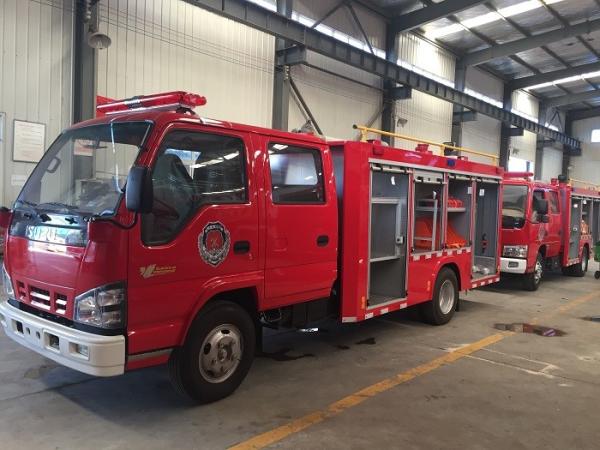

Products Show

500 Gallons Fire Department Trucks 2 Tons Small Fire Tanker Good Performance

500 Gallons Fire Department Trucks 2 Tons Small Fire Tanker Good Performance
500 Gallons Fire Department Trucks 2 Tons Small Fire Tanker Good Performance
500 Gallons Fire Department Trucks 2 Tons Small Fire Tanker Good Performance
Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

FAQ

Q1: What kinds of Fire Pumer Truck I can order from your company?


A: There are various sizes and types of Fire Pumer Truckwith different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied Fire Pumer Truck to any overseas companies?


A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
