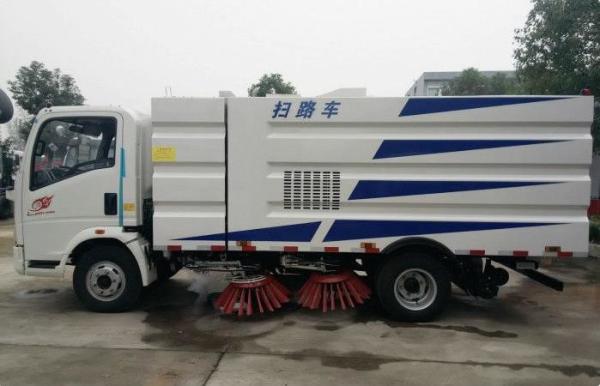

Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Specifications
Brand Name :
CLW
Model Number :
CLW5087ZYS
Certification :
CCC, ISO, BV
Place of Origin :
SUIZHOU, CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units/Month
Delivery Time :
30-35 days
Packaging Details :
Naked Pack with Wax
Sweeping Speed :
3-20 km/h
Maximum Sweep Width :
2.8m
Maximum Cleaning Capacity :
40000m³/h
Auxiliary Engine :
JMC, 77HP
Water Tank :
1.5CBM, Stainless steel 304
Dust Tank :
4CBM, Stainless steel 304
Motor :
Sanyo
Pump :
Electronic water pump, Chinese famous brand.
Fan :
Maintenance-free centrifugal fan(vacuum tube, and rear suction device)
Sweeping Brushes :
4 / 2 sweeping brushes on each side
Operation Manual :
1 set for each customer
Color :
As per customer requirements
Description

Howo 4*2 Road Sweeper Truck Road Cleaning Truck With 1.5cbm Water and 4cbm Dust Tank



Product Description
1. Sinotruk Howo Chassis: Chaochai Engine/95HP;
2. Heavy Duty Dust Tank with different size options: 4000L to 18000L (4CBM to 18CBM);
2. Hydraulic Control Loading & Unloading System;
3. Leakage Proof Devise to contain dirty water Inside;
4. Automatic Key Control & Hydraulic Handle Control;
5. Best Choice for Garbage Transporation Inside of City.
Product Specification

General Technical Parameters
Overall Dimension 5950X2000X2500 (mm)
Gross Vehicle Weight 8000(Kg)
Curb Weight 2300(Kg)
Chassis Specification
Chassis Brand Sinotruk Howo
Drive model 4*2
Cabin Howo 1880 single row, LHD, with air condition.
Number of Passengers 2
Engine Model CY4100ZLQ/95HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS.
Power 70KW/95HP
Emission standard EUROⅡ
Displacement 3707(ml)
Fuel type Diesel
Gearbox WLY6T100, 6Forwards & 1Reverse, manual operation, with power steering.
Brake System Oil break
Wheel Base 3360mm
Front/Rear Axle Loading 2000/3500(Kg)
Overhang Mechanical Suspension, 11/9+7H
Tire 7.00R16, steel wire tire, 6pc with 1 spare tire
Sweeping Speed 3-20 km/h
Upperstructure Specification
Tank Water Tank Material Stainless steel 304
Volume 1.5(cbm)
Dust Tank Material Stainless steel 304
Volume 4(cbm)
Auxiliary Engine Model JMC
Power 57KW/77HP
Maximum sweep width 2.8m
Maximum cleaning capacity 40000m³/h
Standard Configuration 1. Equipped with 2 sweeping brushes on each side;
2. Equipped with Sanyo Motor;
3. Equipped with HIP-SD-7 electromagnetic valve set;
4. Equipped with continuously variable speed automatic clutch;
5. Equipped with German Schneider control switch;
6. Equipped with maintenance-free centrifugal fan, vacuum tube, and rear suction device;
7. Equipped with electronic water pump(water-spray nozzle to restrain dust), and manual pump emergency system;
8. Equipped with hydraulic system(control box lift, rear door open);
9. Equipped with rear LED arrow lights;
10. User's operation manual 1 set.
Optional Configuration Front flush, rear sprinkler, side sprayer, self-cleaning function of dust tank, hose reel with water gun, foggy gun, reversing image monitoring, snow shovel, foggy gun, aerial work platform color is optional, etc.


Product Show
Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Main Structure
Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Main Parts
Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Main Optional Parts
Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Other Related Road Cleaning
Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Howo White 4*2 Road Cleaning Truck With 1.5cbm Water And 4cbm Dust Tank
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ

Q1: What kinds of sweeper trucks I can order from your company?
A: There are various sizes of sweeper trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
