Product Description
1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacaman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water delivery.
Product Specification
General Technical Parameters | |||
Overall Dimension | 6000x1900x2400(mm) | ||
Gross Vehicle Weight | 7360(Kg) | ||
Curb Weight | 3360(Kg) | ||
Chassis Specification | |||
Chassis Brand | Dongfeng | ||
Drive model | 4*2 | ||
Cabin | Single, Left Hand Driving | ||
Number of Passengers | 3 (2 in cabin, 1 in working platform) | ||
Engine | Model | CY4102-C3F, 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Power | 70KW/95HP | ||
Emission standard | EUROⅢ | ||
Displacement | 3856(ml) | ||
Fuel type | Diesel | ||
Gearbox | 5Forwards & 1Reverse | ||
Brake System | Air break | ||
Wheel Base | 3300(mm) | ||
Front/Rear Axle Loading | 1800/3500(Kg) | ||
Tire | 7.00-16, 6pcs + 1 spare tire | ||
Max Driving Speed | 90(km/h) |
Superstructure Specification | ||
Water Tanker | Dimension | 3400*1600*1100(mm) |
Material | Q235B carbon steel | |
Tanker volume | 5000L | |
Thickness of Tanker | 4mm | |
Water Pump Material | carbon steel | |
Vertical suction | 7m | |
Sprinkling width | 15m | |
Range of Water Gun | 35m | |
Pump Flow | 40m³/h | |
Water diversion time | <15min | |
Sprayer | Sprayer Model | LM-40 |
Dimension | 1100*500*1700(mm) | |
Range of Sprayer | 30m | |
Upper and lower spray angle range | -10°—55° | |
Left and right spray angle range | 0°—360° | |
Power Configuration | 380V 50Hz | |
Water Consumption | 0.8—1 m3/h | |
Other Configuration | High quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, manhole, fense&ladder, vice-beams, anti-wave clapboard, metering tube, etc. | |
Options | Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc. |

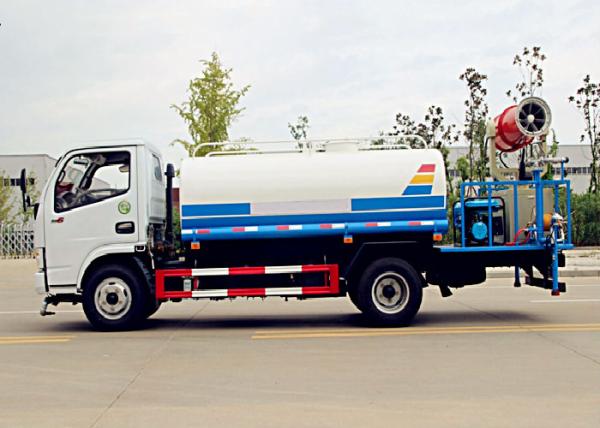

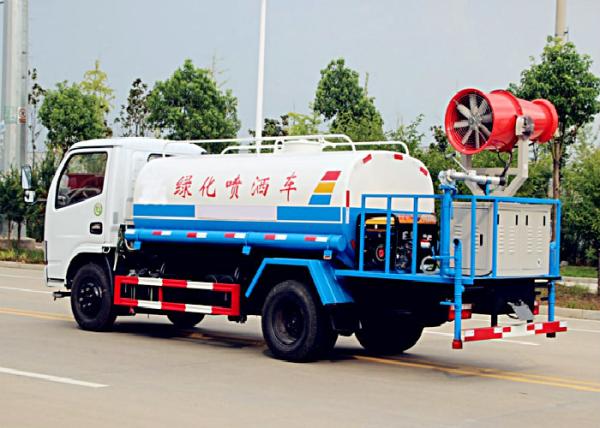

Reference Photos
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered water bowsers to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
