ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L
ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L
ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L
ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L
ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L
ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L
ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L
ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L
Specifications
Brand Name :
CLW
Model Number :
CLW5089
Certification :
CCC, BV, SGS
Place of Origin :
SUIZHOU, CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Unit/Month
Delivery Time :
30-35 days
Packaging Details :
Naked,Waxed,Bulk Ship,Ro-Ro
Tank Size :
5CBM 10CBM 12CBM 15CBM 20CBM, As per customer requirements.
Tank Capacity :
4tons 8tons 10tons 12tons 16tons, etc.
Tank Material :
Q235 Carbon Steel/Stainless Steel/Aluminium Alloy
Tank Shape :
Square Round/Ellipse/Round
Color :
Customized
Steering :
RHD, According To Different Countries
Chassis Brand :
Foton/Forland, Dongfeng, Isuzu, Sinotruk/Howo, FAW, etc.
Warranty :
1 year
Description

ISUZU 5cbm 4*2 Oil Petrol Diesel Transport and Refueling Tanker Truck 5,000L Fuel Delivery Dispenser Tank Truck

Product Description

1. Purpose: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Refueling System: Oil pump, Oil dispenser machine and Hose reel with filling gun, etc.

3. Advantage: High quality with competitive price.

Product Specification

General Technical Parameters
Overall Dimension 5990×1960×2400(mm)
Gross Vehicle Weight 8500(Kg)
Curb Weight 3365(Kg)

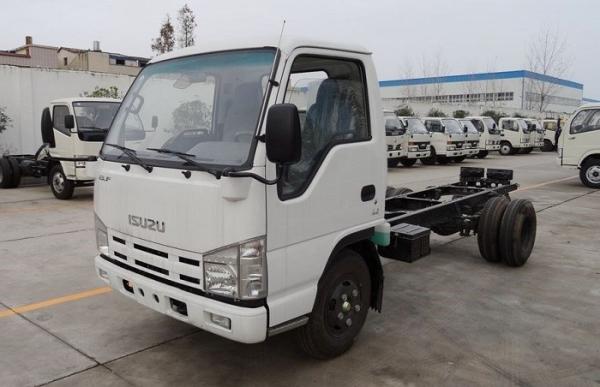

Chassis Specification
Chassis Brand Isuzu
Drive model 4*2
Cabin Isuzu, Single, Left-hand Drive, with air condition.
Number of Passengers 2
Engine Model BJ493ZLQ1/108HP, 4-stroke direct injection , 4-cylinder in-line, intercooled supercharging, withABS.
Power 80KW/108HP
Emission standard EURO4
Displacement 3707(ml)
Fuel type Diesel
Gearbox 5Forwards & 1Reverse, manual operation. With power steering.
Brake System Oil break rotation
Wheel Base 3360mm
Front/Rear Axle Loading 2000/4000(Kg)
Tire 7.00R16, 1PC including 1 spare tire
Max Driving Speed 90(km/h)
Upperstructure Specification
Oil Tank Effective Volume 5CBM
Transport Oil Type Fuel
Tank Material Q235, carbon steel( also can choose stainless steel,aluminum )
Tank Shape Square Round
Manhole 1unit Euro Standard manhole, DN500mm

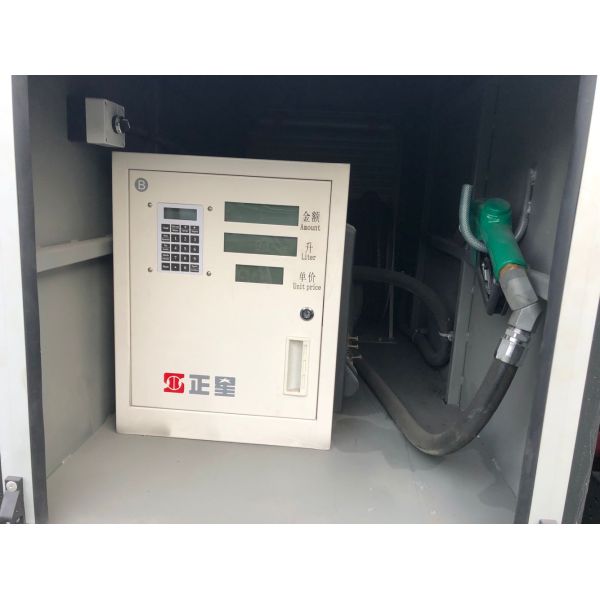

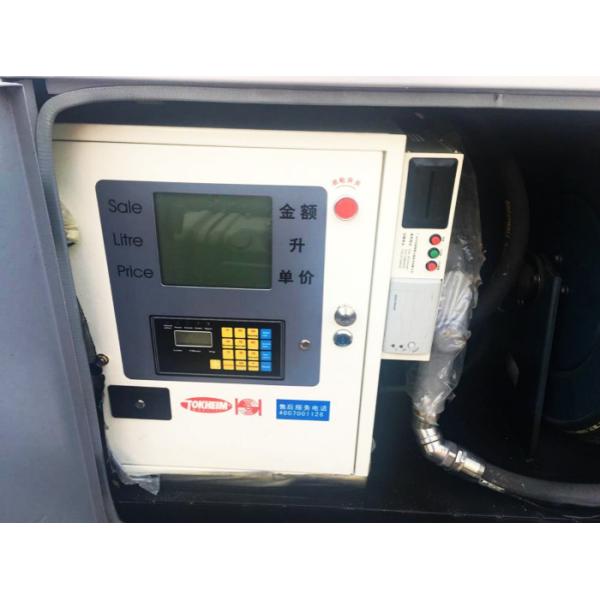

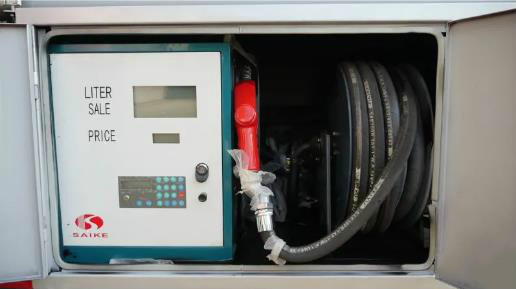

Refueling System

1. Oil pump;

2. Oil dispenser machine;

3. Hose reel with filling gun.
Others Emergency cut-off valve, Lifting fence, electrostatic wire reel, ladder, GPS, etc.
Options Compartments, unloading valve, flow meter, API standard manhole, oil vapor recovery, anti-overflow probe.

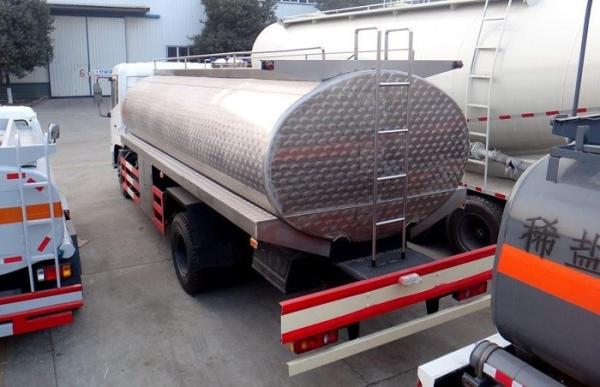

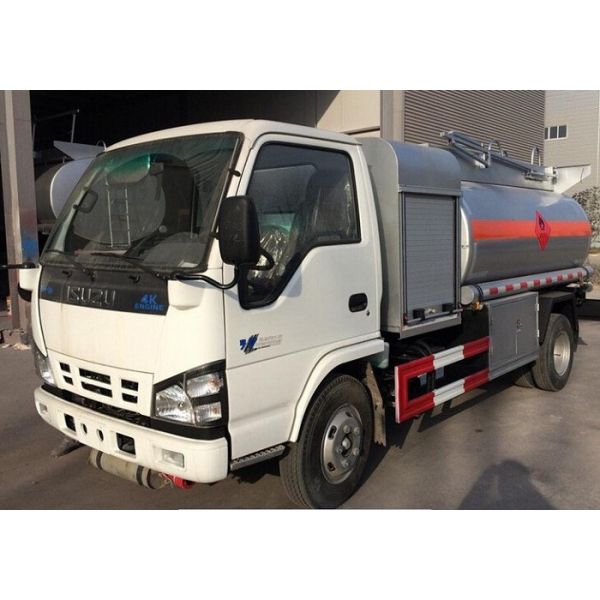

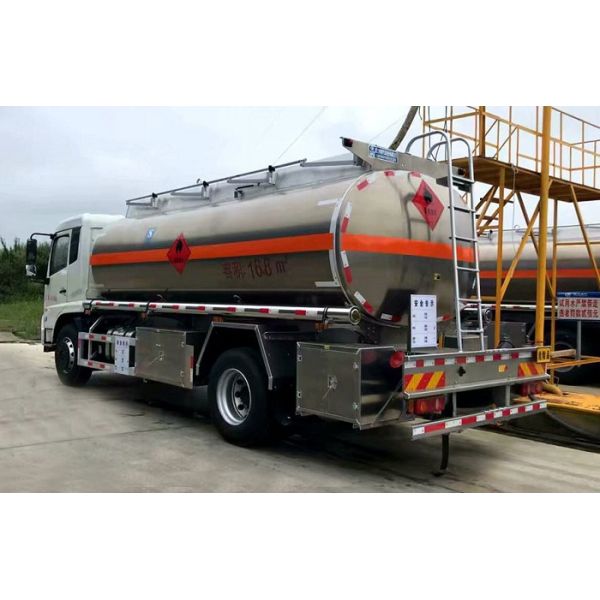

Reference Photos

ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L

ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L

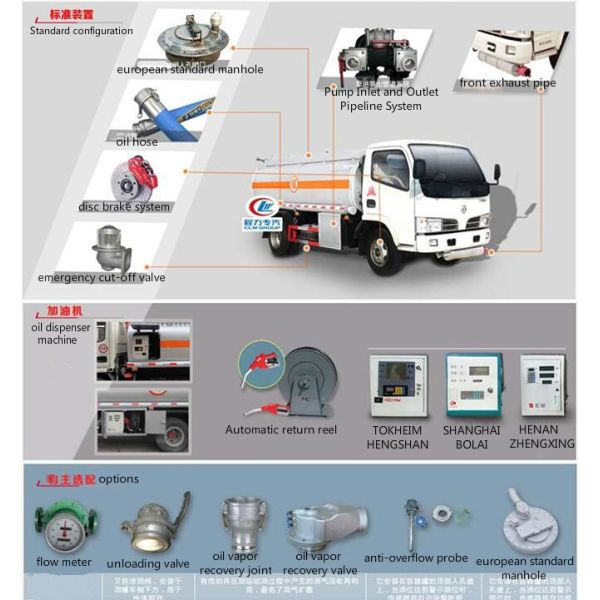

Main Structure and Details

ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L

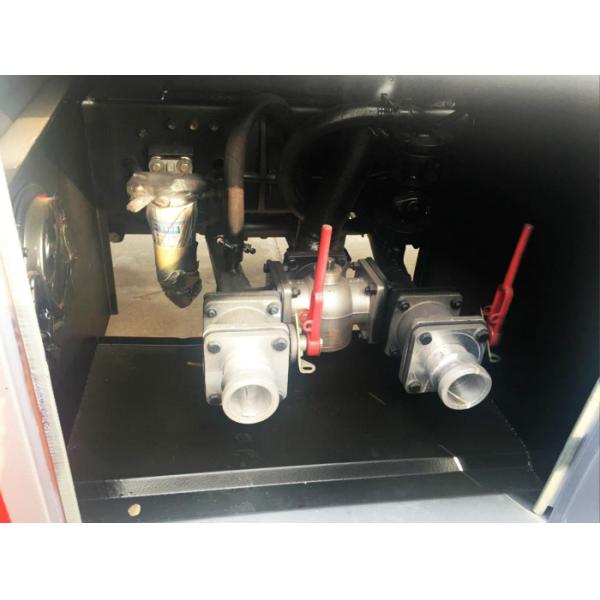

Main Parts

ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L

ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L

ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L

ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L

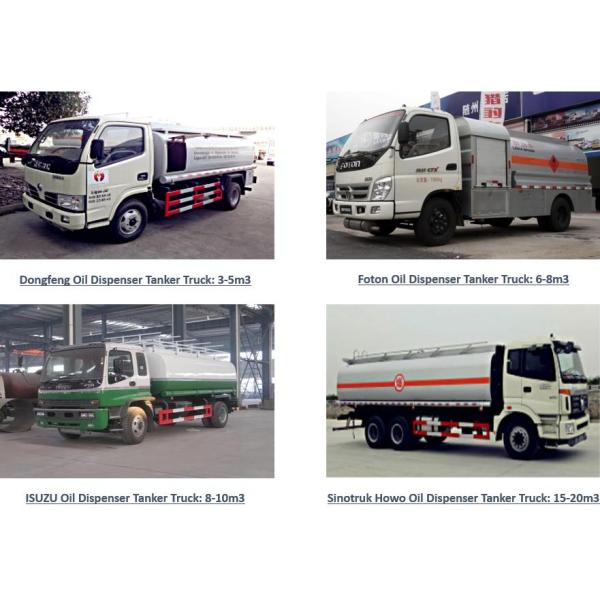

Different Capacities of Fuel Dispenser Truck

ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L

ISUZU 5cbm 4*2 Fuel Delivery Tanker Oil Petrol Diesel Transport And Refueling Truck 5000L

Sales Service

1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of refueling truck I can order from your company?

A: We can supply different size refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of Refueling Truck products?

A: China GB local standard.

Q3: Can we adopts International brand fuel pump for refueling truck?

A: Sure, we already cooperated with many international brand supplier.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
