Sinotruk Howo 50 Ton Dump Truck For Construction And Mineral Material Transportation
Sinotruk Howo 50 Ton Dump Truck For Construction And Mineral Material Transportation
Sinotruk Howo 50 Ton Dump Truck For Construction And Mineral Material Transportation
Sinotruk Howo 50 Ton Dump Truck For Construction And Mineral Material Transportation
Sinotruk Howo 50 Ton Dump Truck For Construction And Mineral Material Transportation
Sinotruk Howo 50 Ton Dump Truck For Construction And Mineral Material Transportation
Sinotruk Howo 50 Ton Dump Truck For Construction And Mineral Material Transportation
Sinotruk Howo 50 Ton Dump Truck For Construction And Mineral Material Transportation
Sinotruk Howo 50 Ton Dump Truck For Construction And Mineral Material Transportation
Sinotruk Howo 50 Ton Dump Truck For Construction And Mineral Material Transportation
Specifications
Brand Name :
CLW
Model Number :
CLW0571BP
Certification :
BV, SGS, CCC
Place of Origin :
SUIZHOU, CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units/Month
Delivery Time :
30-35 days
Packaging Details :
naked, waxed, bulk ship, ro-ro
Brand :
Chinese famous brands, such as Sinotruk Howo, CAMC, Shacman, Foton, North-benz, JAC, ISUZU, etc.
Loading Capacity :
30tons, 40tons, 50tons
Lifting Type :
Front Tipping, Middle Tipping
Oil Cylinder Brand :
International Brand HYVA or Chinese Brand
Dumper Material :
High Quality Q345B
Thickness Of Dumper :
Bottom 10mm, Side 8mm, Or As Customer Request
Color :
White, Red, Yellow, Green, Or As Customer Request
Warranty :
1 year
Description

Sinotruk Howo 50Tons 8*4 Tipper Dump Truck For Construction and Mineral Material Transportation

Product Description
1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm,6mm,8mm, 10mm or as per client's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, and etc.

Product Specification

Truck Parameters
Chassis Brand SINOTRUK HOWO
Drive model 8x4
Loading capacity 40-50tons
Overal Dimension 10145x2550x3450mm
Carriage Internal Dimension 5600x2300x1500mm
Dump Van Volume 20m3 ( 16-21m3 for option )
Steel Thickness of Carriage Bottom 10mm, Side 8mm (As Per Client's Request)
Dumper Material Q345B
Hydraulic Lift of Carriage Front Lift (HYVA cylinder or iddle lift for option )
Cabin Model SINOTRUK HW76 Lengthen cab
single bunk, new type seat, adjustable steering wheel, EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, left driving, air conditioner
Engine Model D10.38-30
Manufacturing Company SINOTRUK
Maximum output 380HP
Emission standard Euro III
Number of cylinder 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Transmission SINOTRUK HW19710 transmission ,10 forward and 2 reverse
Clutch SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance.
Steering ZF8118 Steering Gear Box, hydraulic steering with power assistance. (Left hand driving),
( ZF8098 RHD right hand drive for option )
Wheel Base 3800+1350mm
Wheels&Tires Rims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. ( tubeless for option )
Front Axle SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
Rear Axle SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Brake System Service brake Dual circuit compressed air brake
Parking brake(emergency brake) spring energy,compressed air operating on rear wheels
Oil Tank Square type-300L Aluminum alloy fuel tank
Electrics Operating voltage 24V,negative grounded
Starter 24V,7.5 Kw
Alternator 3-phase,28V,1500 W
Batteries 2x12 V,165 Ah
Lights horn,headlamps,fog lights,brake lights,indicators and reverse light.
Performance Maximum driving speed 75 km/h
Fuel consumption 35 L/100km
Options Revolving Light on roof of cab
RHD right hand drive
Upper body bucket shape body for heavy good,big size stones etc
U shape body bulk cargo , ore and other goods
Boat type body bulk, muck, geotechnical class
Tubeless tires 12R22.5 ,315/80R22.5 etc
Brake water spray
ABS, EVB engine brake

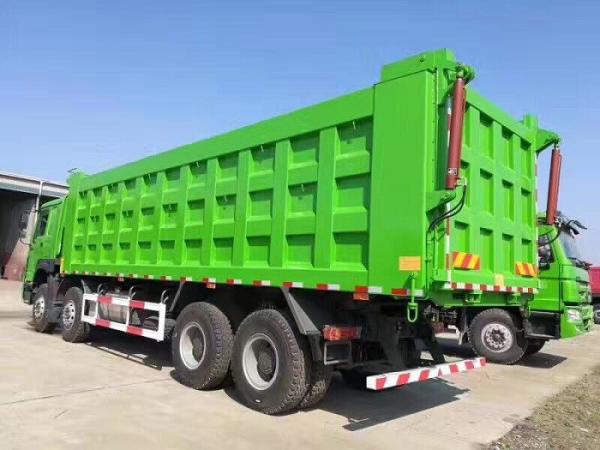

Reference Photos
Sinotruk Howo 50 Ton Dump Truck For Construction And Mineral Material Transportation

Sinotruk Howo 50 Ton Dump Truck For Construction And Mineral Material Transportation


Related products
Sinotruk Howo 50 Ton Dump Truck For Construction And Mineral Material Transportation

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Related Accessories and spare parts offered,no future worries. Regular customer after-sale visiting.
FAQ

Q1: What kinds of dump trucks I can order from your company?


A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
