Platform Heavy Duty Wrecker Truck 4*2 One Towing Two 12 Months Warranty
Platform Heavy Duty Wrecker Truck 4*2 One Towing Two 12 Months Warranty
Platform Heavy Duty Wrecker Truck 4*2 One Towing Two 12 Months Warranty
Platform Heavy Duty Wrecker Truck 4*2 One Towing Two 12 Months Warranty
Platform Heavy Duty Wrecker Truck 4*2 One Towing Two 12 Months Warranty
Platform Heavy Duty Wrecker Truck 4*2 One Towing Two 12 Months Warranty
Platform Heavy Duty Wrecker Truck 4*2 One Towing Two 12 Months Warranty
Platform Heavy Duty Wrecker Truck 4*2 One Towing Two 12 Months Warranty
Specifications
Brand Name :
CLW
Model Number :
CLW5076BGP
Certification :
CCC SGS BV
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units/Month
Delivery Time :
30-35 days
Packaging Details :
naked,waxed,bulk ship,ro-ro
Truck Brand :
Dongfeng, ISUZU, Howo, Foton, JAC, etc.
Max Lifting Weight :
3Tons; 4Tons; 5Tons
Max Towing Weight :
3Tons; 4Tons; 5Tons
Wrecker Type :
One-towing-One, One-towing-Two
Truck Overall Size :
7450 x 2350 x 2440mm
Flatbed Dimension :
5800 × 2100mm
Winch Rope :
21m
Rope Diameter :
DN12mm
Winch Release Speed :
3.23-8 meter/min
Warranty :
1 year
Description

Dongfeng 5 Tons Platform Heavy Duty Wrecker Truck 4*2 One-Towing-Two



Product Description
1. 5Tons Wrecker Truck for Towing Broken Cars or Equipments.
2. Dongfeng Brand Chassis for Euro 2 or Euro 3 Emission
3. Spare parts of 5tons wrecker tow truck:
4. Italy brand multi-way valve and balance valve;
5. Gernamy Roxroth technology hydraulic cylinder and joint;
6. International Brand Sealing elements;
7. Strengthed Checked platform.

Product Specification

General Technical Parameters
Overall Dimension7450x2350x2440(mm)
Gross Vehicle Weight8275 (Kg)
Curb Weight5110(Kg)
Chassis Specification
Chassis BrandDongfeng
Drive model4*2
CabinSingle, Right Hand Driving
EngineModelCY4102, 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Power88KW/120HP
Emission standardEUROⅢ
Displacement3860(ml)
Fuel typeDiesel
Gearbox5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Brake SystemPneumatic(Air break/exhaust brake)
Wheel Base3800(mm)
Front/Rear Axle Loading2500/4500(Kg)
Approach/Departure Angle20/10(°)
Tire8.25-16, 6pcs + 1 spare tire
Max Driving Speed90(km/h)
Superstructure main technical Parameters
Platform OrganDimension5800*2100(mm)
MaterialQ235 carbon steel
Platform power stroke2680(mm)
Min angle7.6(°)
Max lifting capacity3000(kg)
WinchQuantity1
Winch rating towing capacity4000(kg)
Length of steel rope21(m)
Speed of winch3.23~8 (m/min)
Diameter of steel cableΦ12
Lifting OrganRating under-hoisting capacity2500(kg)
Max under-hoisting capacity2800(kg)
Fully extended max under-hoisting capacity1000(kg)
Rating under-pulling capacity6500(kg)
Other partsAuxiliary wheels, alarm light,hooks, 4 bundling belt, automatic sliding plate.
OptionsCaution light, air condition,inlet valve.

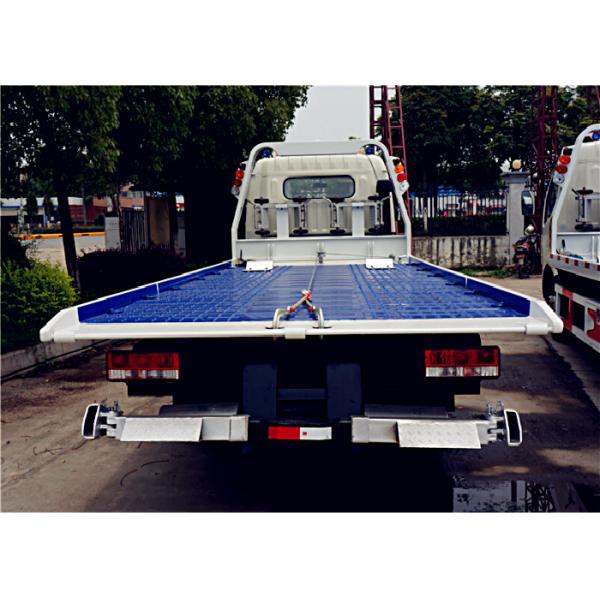

Reference Photos
Platform Heavy Duty Wrecker Truck 4*2 One Towing Two 12 Months Warranty
Platform Heavy Duty Wrecker Truck 4*2 One Towing Two 12 Months Warranty
Platform Heavy Duty Wrecker Truck 4*2 One Towing Two 12 Months Warranty

Main Structure
Platform Heavy Duty Wrecker Truck 4*2 One Towing Two 12 Months Warranty

FAQ

Q1: What kinds of wrecker trucks I can order from your company?
A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
