Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank
Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank
Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank
Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank
Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank
Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank
Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank
Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank
Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank
Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank
Specifications
Brand Name :
CLW
Model Number :
CLW5070BPA
Certification :
CCC, ISO, SGS, BV
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units/Month
Delivery Time :
30-35 days
Packaging Details :
Naked Pack with Wax
Chassis Brand :
Dongfeng, Isuzu, HOWO, Foton, etc.
Traction Type :
4*2
Cabin :
4 Doors with A/C
Engine Type :
Yc4102/120HP
Fire Pump :
CB10/50
Material of Tank :
Carbon Steel
Tank Thickness :
4/3/3 mm
Suction Depth :
Deeper Than 7m
Tanker Capacity :
5000L
Fire Monitor Range :
48m
Fire Monitor Rotation Angle :
360 Degree
Warranty :
1 Year
Description

China Dongfeng 5cbm/5000L 4*2 Dry Powder and Water Tank Fire Fighting Truck

Product Description
Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .

Fire fighting truck can be divided into many types:
1. According to vehicle size , There are mini fire fighting truck , Light fire fighting truck , Medium fire fighting truck , Heavy duty fire fighting truck .
2. According to chassis drive type , there are 4*2 fire fighting truck , 6*4 Fire fighting truck , 8*4 fire fighting truck , and off road type 4*4 , 6*6 fire fighting truck .
3. According to chassis brand , There are ISUZU fire fighting truck , Dongfeng fire fighting truck , Foton fire fighting truck , Faw fight fighting truck , Shacman fire fighting truck , Sinotruk fire fighting truck , Mercdes fire fighting truck , etc .
4. According to fire agent , there are water tank fire fighting truck , dry powder fire fighting truck , water / Foam fire fighting truck.

Product Specification

ITEM UNIT PARAMETER
Vehicle / Howo fire fighting truck
Overall dimensions mm 8600×2500×3450
Water tank dimention cbm 5cbm/5000Liters
GVW kg Appro×19000
Curb weight kg Appro×10550
Payload kg Appro×8450
Wheel base mm 3800
F/R track base mm 1940/1860
F/R suspension mm 1500/2435
Approach/departure angle ° 16/13
Max speed km/h 95
Axle Load kg 5000/10000
Tire specification 12.00-20 16PR Number of axles 2
Engine model WD615.62 Diesel, 6 Cylinder, direct line, water cooling
Engine performance ml/kw/hp 9726 /196 /266
Steering Power Transmission 10F&2R
Cab passenger 5 Electric System 24V
Tank material Carbon steel Emission standard Euro 3
Performance Information
Fire Cannon BS30 , 50L/S/1Mpa, Working Range >48 m
Fire Pump CB10/50 Performance 50L/s , 1.0Mpa

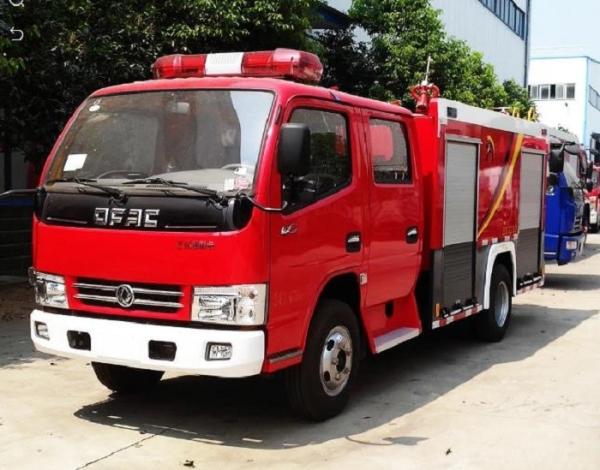

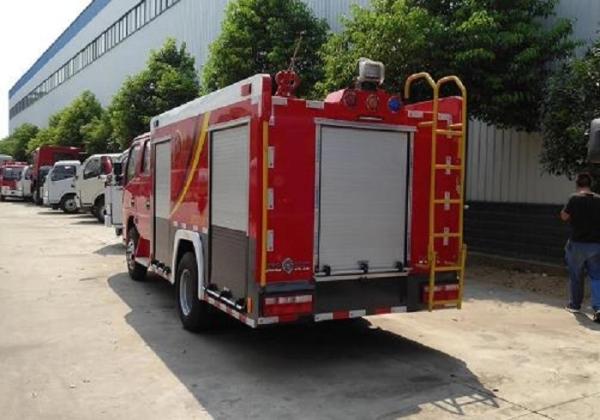

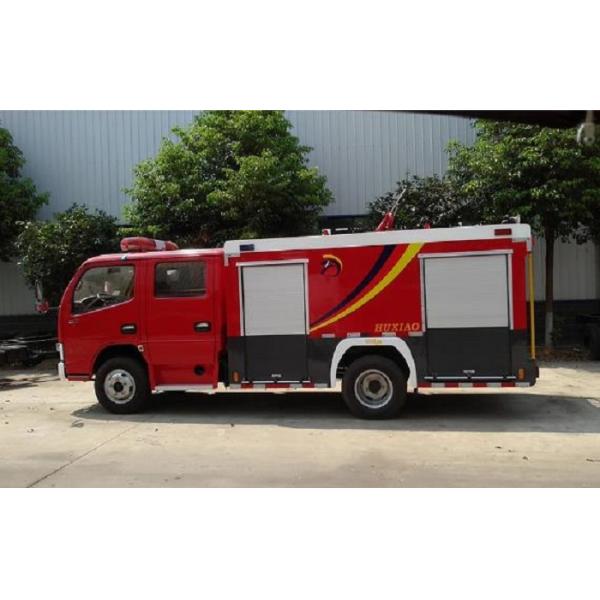

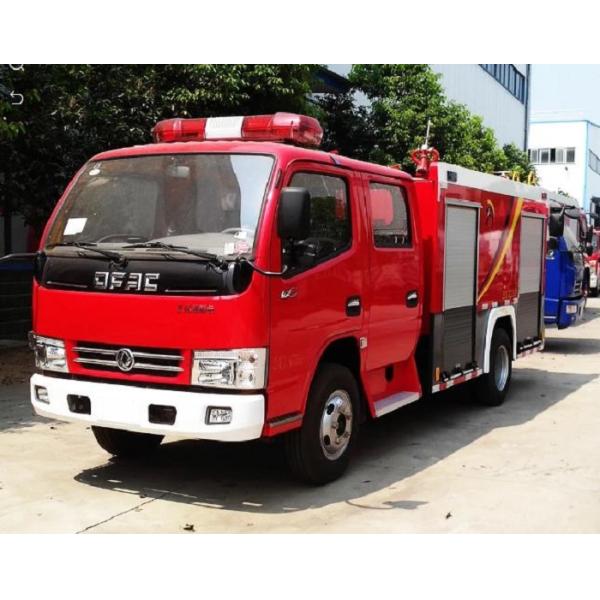

Reference Photos
Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank

Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank

Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank

Main Structure Diagram

Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank

Main Details and Tools

Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank

Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank

Different Capacities of Fire Truck

Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank

Dongfeng 5cbm / 5000L Fire Department Utility Truck 4*2 Dry Powder And Water Tank

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
