Specifications
Brand Name :
CLW
Model Number :
CLW5070BPA
Certification :
CCC, ISO, SGS, BV
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units/Month
Delivery Time :
30-35 days
Packaging Details :
Naked Pack with Wax
Chassis Brand :
Dongfeng, Isuzu, HOWO, Foton, etc.
Traction Type :
4*2
Cabin :
4 Doors with A/C
Engine Type :
Wd615.62/266HP
Fire Pump :
CB10/60
Material of Tank :
Carbon Steel
Tank Thickness :
4/3/3 mm
Suction Depth :
Deeper Than 7m
Tanker Capacity :
4000L Water, 3000L Foam, 2000L Powder.
Fire Monitor Range :
50m
Fire Monitor Rotation Angle :
360 Degree
Warranty :
1 Year
Description

China 10t 12t Sinotruk Howo Dry Powder and Foam Combined Use Fire Engine Rescue Fire Fighting Truck

Product Description
Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .

Fire fighting truck can be divided into many types:
1. According to vehicle size , There are mini fire fighting truck , Light fire fighting truck , Medium fire fighting truck , Heavy duty fire fighting truck .
2. According to chassis drive type , there are 4*2 fire fighting truck , 6*4 Fire fighting truck , 8*4 fire fighting truck , and off road type 4*4 , 6*6 fire fighting truck .
3. According to chassis brand , There are ISUZU fire fighting truck , Dongfeng fire fighting truck , Foton fire fighting truck , Faw fight fighting truck , Shacman fire fighting truck , Sinotruk fire fighting truck , Mercdes fire fighting truck , etc .
4. According to fire agent , there are water tank fire fighting truck , dry powder fire fighting truck , water / Foam fire fighting truck.

Product Specification

ITEM UNIT PARAMETER
Vehicle / Howo fire fighting truck
Overall dimensions mm 8600×2500×3450
Water tank dimention mm 1850×1550×1250(4m3)
Foam tank dimentioon mm 1270×1550×1250(3m3)
Dry powder tank dimension mm 1200×1100×1100(2m3)
GVW kg Appro×19000
Curb weight kg Appro×10550
Payload kg Appro×8450
Wheel base mm 4600
F/R track base mm 1940/1860
F/R suspension mm 1500/2435
Approach/departure angle ° 16/13
Max speed km/h 90
Axle Load kg 7000/12000
Tire specification 12.00-20 16PR Number of axles 2
Engine model WD615.62 Diesel, 6 Cylinder, direct line, water cooling
Engine performance ml/kw/hp 9726 /196 /266
Steering Power Transmission 10F&2R
Cab passenger 5 Electric System 24V
Tank material Carbon steel Emission standard Eu 2
Performance Information
Fire Cannon BS30 , 60L/S/1Mpa, Working Range >50 m
Fire Pump CB10/60 Performance 60L/s , 1.0Mpa

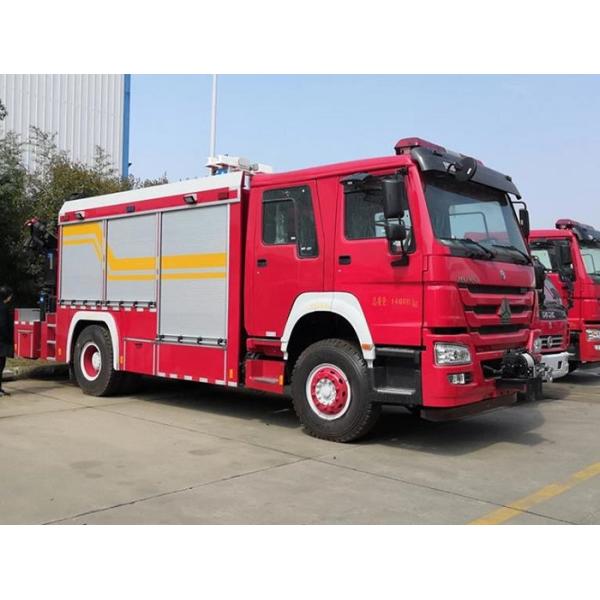

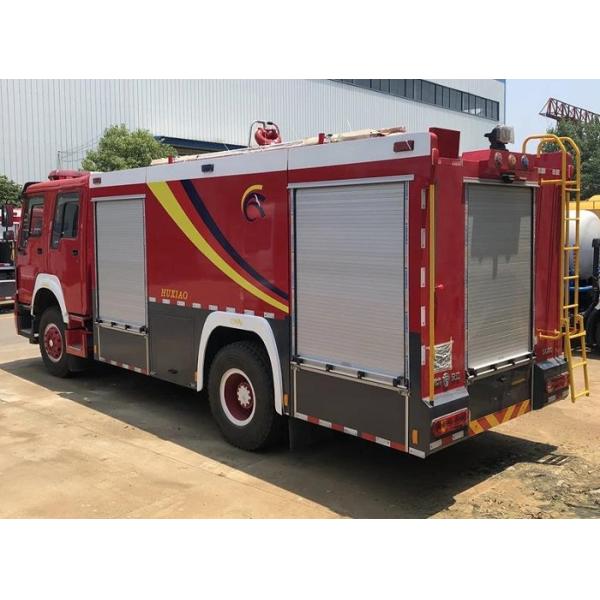

Reference Photos

10t 12t Sinotruk Howo Heavy Rescue Truck Dry Powder And Foam Combined Use

10t 12t Sinotruk Howo Heavy Rescue Truck Dry Powder And Foam Combined Use

10t 12t Sinotruk Howo Heavy Rescue Truck Dry Powder And Foam Combined Use

Main Structure Diagram

10t 12t Sinotruk Howo Heavy Rescue Truck Dry Powder And Foam Combined Use

Main Details and Tools

10t 12t Sinotruk Howo Heavy Rescue Truck Dry Powder And Foam Combined Use

10t 12t Sinotruk Howo Heavy Rescue Truck Dry Powder And Foam Combined Use

Different Capacities of Fire Truck

10t 12t Sinotruk Howo Heavy Rescue Truck Dry Powder And Foam Combined Use

10t 12t Sinotruk Howo Heavy Rescue Truck Dry Powder And Foam Combined Use

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
