Specifications
Brand Name :
CLW
Model Number :
CLW5070BPA
Certification :
CCC, ISO, SGS, BV
Place of Origin :
Suizhou, China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units/Month
Delivery Time :
30-35 days
Packaging Details :
Naked Pack with Wax
Chassis Brand :
Dongfeng, Isuzu, HOWO, Foton, etc.
Traction Type :
4*2
Cabin :
4 Doors with A/C
Engine Type :
95HP/70kw
Fire Pump :
CB10/30
Material of Tank :
Carbon Steel
Tank Thickness :
4/3/3mm
Suction Depth :
Deeper Than 7m
Tanker Capacity :
5000L
Fire Monitor Range :
60m
Fire Monitor Rotation Angle :
360 Degree
Warranty :
1 Year
Description

China Hotsale DONGFENG 5,000L Fire Emergency Rescue Water Tanker Truck 3-5cbm Small Fire Engine Vehicle

Product Description
Fire truck (also called fire fighting vehicle, Fire engine, Fire fighting apparatus, Fire service truck, Fire and rescue truck, fire truck, fire fight truck, Foam fire tank truck, Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.


Fire fighting truck can be divided into many types:
1. According to vehicle size, There are mini fire fighting truck, Light fire fighting truck, Medium fire fighting truck, Heavy duty fire fighting truck.
2. According to chassis drive type, there are 4*2 fire fighting truck, 6*4 Fire fighting truck, 8*4 fire fighting truck, and off road type 4*4, 6*6 fire fighting truck.
3. According to chassis brand, There are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, Faw fight fighting truck, Shacman fire fighting truck, Sinotruk fire fighting truck, Mercdes fire fighting truck, etc.
4. According to fire agent, there are water tank fire fighting truck, dry powder fire fighting truck, water / Foam fire fighting truck.

Product Specification

Model CLW5070XFC Chassis Model

Dongfeng EQ1060
Overall dimension 6260*1900*2750 mm Total weight 7280 kg
Ratings 3000 kgs Curb weight 4280kgs
A/D angle 23/16 degree F/R hanging 1180/1600 mm
Max speed 80 km/h Wheel load 2425/4485
Axle 2 Wheelbase 3300 mm
Front track 1404,1506 mm Rear track 1458,1466 mm
Tyre 6+1 Number of leaf spring 8/9+5
Tyre size 7.00-16 Engine Model YUNNEI 95HP
Displacement 3856 ml Power 70KW
Fire pump CB10/30 Flow 30L/S
Pressure 1.0Mpa
Water tank material High quality steel plate, antiseptic treatment
Piping Systerm Suction pipeline, outlet pipeline, residual water pipeline and cooling water pipeline
Fire Pump 1. Tank capacity: 2000L
2. Fire pump model:CB10/20
3. The flow rate of fire pump: 20L/S
4. Pressure of fire pump : 1.0mpa
5. Fire cannon mode PS20
6. Fire cannon flow:20L/S
7. Water cannon shot range : ≥50m
8. Water cannon pressure: 1.0Mpa
Other Equipment 1. one ingate, with fast lock and open device
2. one overflow safety device and air breather
3. one fluid level gauge
4. one drain outlet, with ball valve, stainless steel valve element
5. two water filling nozzle outside of the tanker
6. one inlet piping connect to water tank and pump

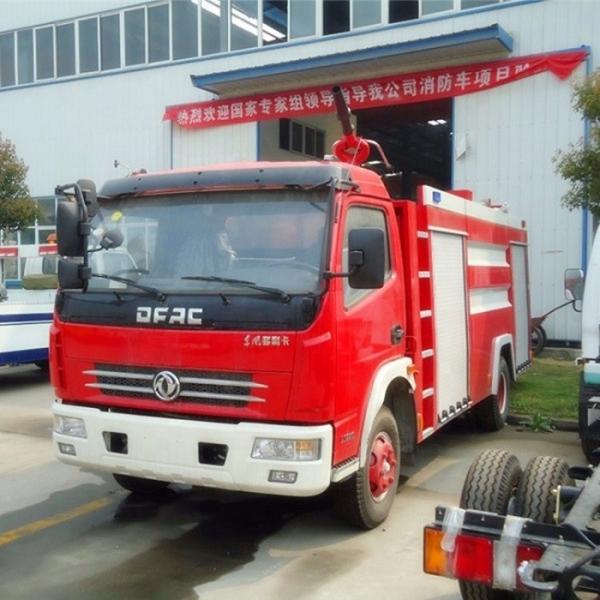

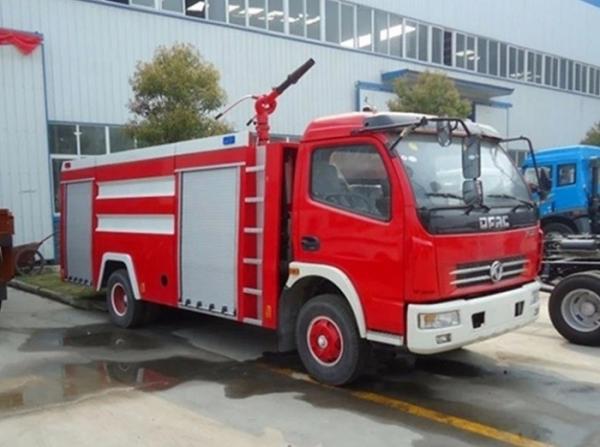

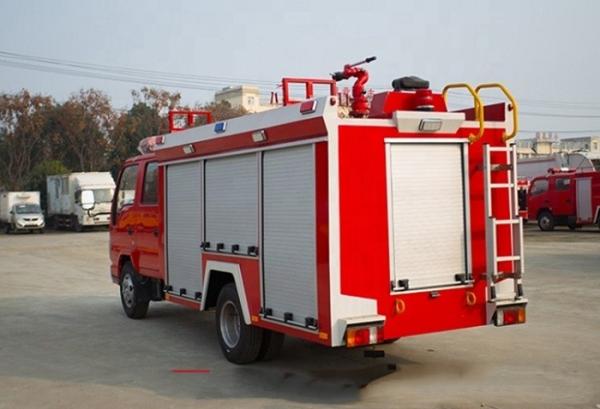

Reference Photos

5000L Fire Rescue Truck 3-5cbm Small Fire Engine Vehicle 4 Doors With A / C

5000L Fire Rescue Truck 3-5cbm Small Fire Engine Vehicle 4 Doors With A / C

Main Structure Diagram

5000L Fire Rescue Truck 3-5cbm Small Fire Engine Vehicle 4 Doors With A / C

Main Details and Tools

5000L Fire Rescue Truck 3-5cbm Small Fire Engine Vehicle 4 Doors With A / C

5000L Fire Rescue Truck 3-5cbm Small Fire Engine Vehicle 4 Doors With A / C

Different Capacities of Fire Truck

5000L Fire Rescue Truck 3-5cbm Small Fire Engine Vehicle 4 Doors With A / C

5000L Fire Rescue Truck 3-5cbm Small Fire Engine Vehicle 4 Doors With A / C

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
