4MP CMOS MIPI Camera Module OV4689 Hd Camera Module DFOV117 Wide Angle
4MP CMOS MIPI Camera Module OV4689 Hd Camera Module DFOV117 Wide Angle
4MP CMOS MIPI Camera Module OV4689 Hd Camera Module DFOV117 Wide Angle
4MP CMOS MIPI Camera Module OV4689 Hd Camera Module DFOV117 Wide Angle
4MP CMOS MIPI Camera Module OV4689 Hd Camera Module DFOV117 Wide Angle
4MP CMOS MIPI Camera Module OV4689 Hd Camera Module DFOV117 Wide Angle
4MP CMOS MIPI Camera Module OV4689 Hd Camera Module DFOV117 Wide Angle
4MP CMOS MIPI Camera Module OV4689 Hd Camera Module DFOV117 Wide Angle
Specifications
Brand Name :
SINCERE FIRST
Model Number :
SF-OC4689-IRCUT
Certification :
CE, FCC, RoHS, REACH, ISO
Place of Origin :
Guangdong , China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, Western Union, T/T, MoneyGram, Paypal and Others
Supply Ability :
350000 pcs / month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Package, Carton Box
Sensor :
OV4689
Pixel :
4MP
Connector :
FH26-S-0.3SHW
Lens :
4G2P
EFL :
2.35mm
F/ND :
2.4±5%
Fov :
117°
Focusing Range :
0.1m-infinite
TV-Distortion :
<-15%
Type :
CMOS camera module
Description

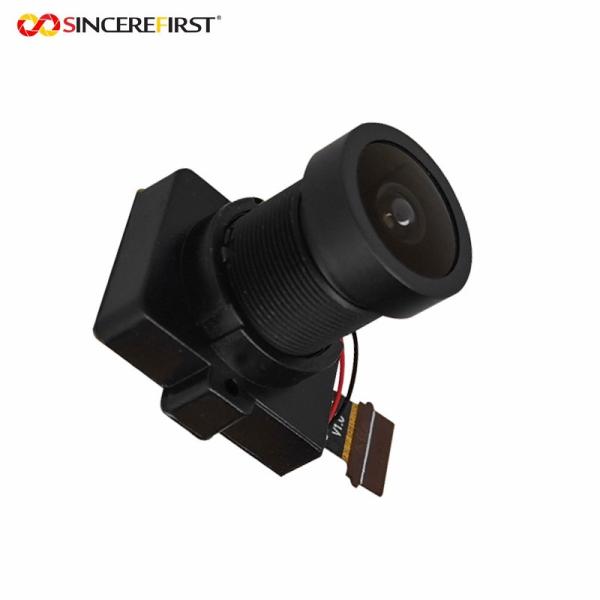

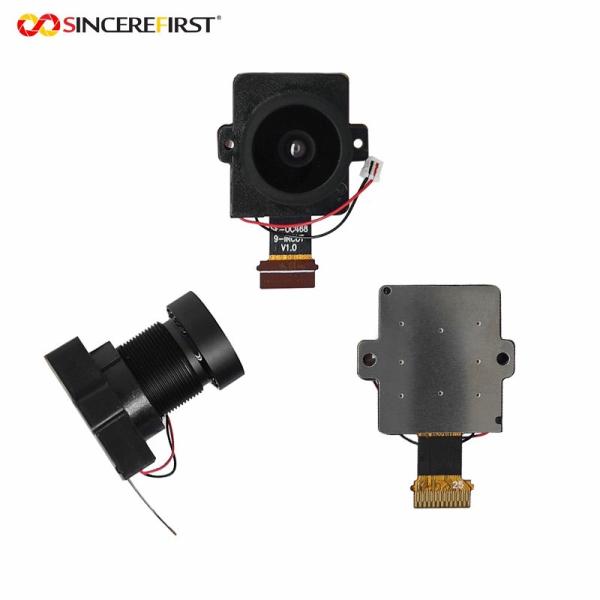

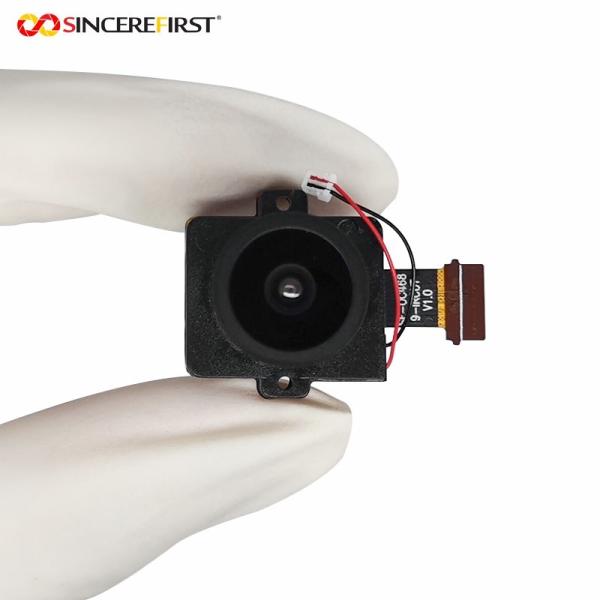

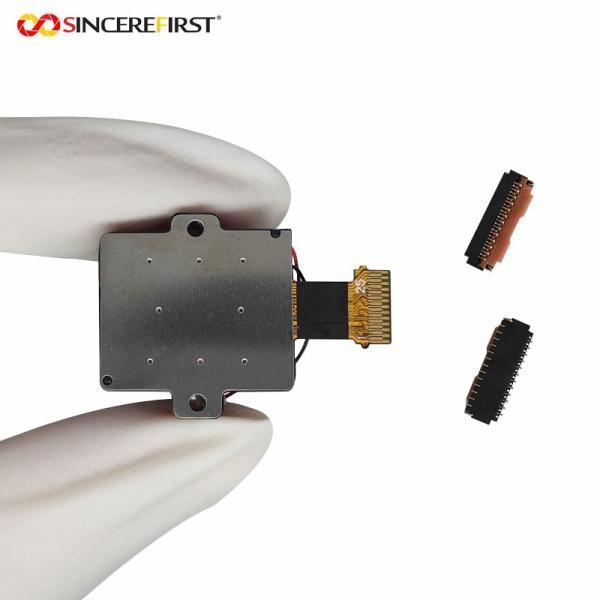

4MP CMOS Omnivision OV4689 Image Sensor Hd MIPI Camera Module

Specificaitons

Max Image Circle ‎6.4mm
Interface MIPI
Feature IR Cut Switch
DOVDD 1.8
DVDD 1.2
AVDD 2.8
Production Process RoHS
Type CMOS camera module
Place of Origin Guangdong
Lens DFOV117 Wide Angle

Description

The OV4689 is a MIPI CSI-2 camera equipped with OmniVision 1/3" CMOS 4MP image sensor OV4689 which features improved OmniBSI-2™ technology. This camera outputs 10-bit RAW data.

Features

◆automatic black level calibration (ABLC)

◆programmable controls for frame rate, mirror and flip, cropping, and windowing

◆static defective pixel canceling

◆supports output formats: 10-bit RAW RGB (MIPI)

◆supports horizontal and vertical subsampling

◆supports images sizes: 4Mpixel, 3Mpixel, EIS1080p, 1080p, EIS720p

◆fast mode switching

◆support 2x2 binning, 4x4 binning, re-sampling filter

◆standard serial SCCB interface

◆up to 4-lane MIPI serial output interface

◆embedded 4K bits one-time programmable (OTP) memory for part identification, etc (see sidebar note)

◆two on-chip phase lock loops (PLLs)

◆programmable I/O drive capability

◆built-in temperature senso

Applicaitons

IP cameras
sports cameras
automotive
