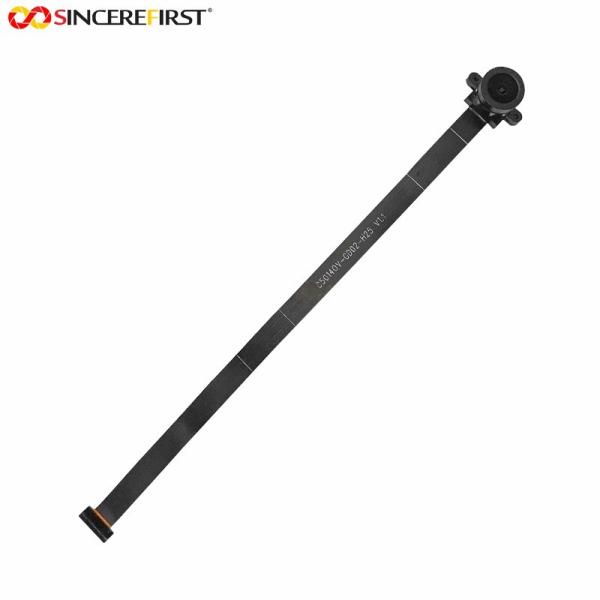

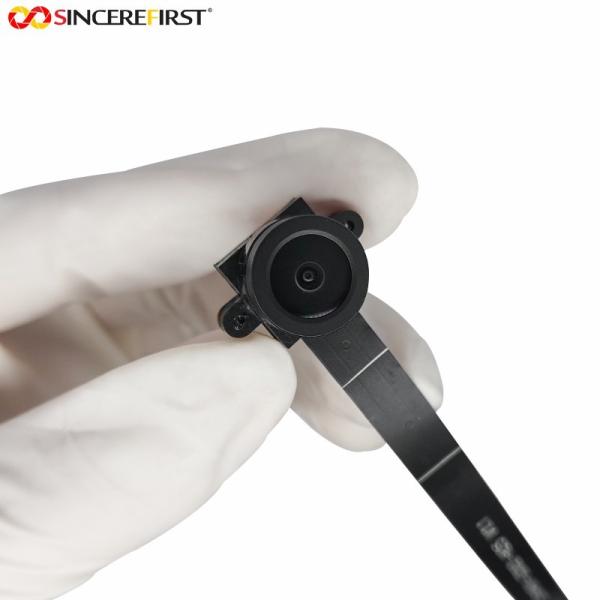

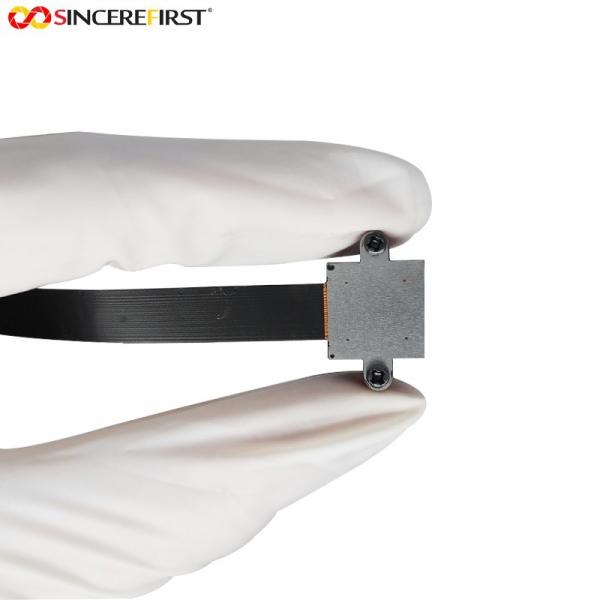

5MP FPC Camera Module Ov5640 Camera Board 25 Degree Lens CMOS Image Sensor
5MP FPC Camera Module Ov5640 Camera Board 25 Degree Lens CMOS Image Sensor
5MP FPC Camera Module Ov5640 Camera Board 25 Degree Lens CMOS Image Sensor
5MP FPC Camera Module Ov5640 Camera Board 25 Degree Lens CMOS Image Sensor
5MP FPC Camera Module Ov5640 Camera Board 25 Degree Lens CMOS Image Sensor
5MP FPC Camera Module Ov5640 Camera Board 25 Degree Lens CMOS Image Sensor
5MP FPC Camera Module Ov5640 Camera Board 25 Degree Lens CMOS Image Sensor
5MP FPC Camera Module Ov5640 Camera Board 25 Degree Lens CMOS Image Sensor
Specifications
Brand Name :
SINCERE FIRST
Model Number :
SF-C5014OV-GD02-H102-650&850IR V1.1
Certification :
CE, FCC, RoHS, REACH, ISO
Place of Origin :
Guangdong , China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, Western Union, T/T, MoneyGram, Paypal and Others
Supply Ability :
350000 pcs / month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Package, Carton Box
Sensor :
1/4" Omnivision OV5640
Focusing Range :
1m~infinity
Focal Length :
8.0mm
F Number :
2.0
Fov(H) :
25°
TV Distortion :
＜1%
Output Format :
YUV output
Pixels :
5MP
Focus Type :
Fixed Focus
Description

5MP 25 Degree Lens OV5640 CMOS Image Sensor 24pin FPC Camera Module

Specificaitons

Sensor 1/4’’ Omnivision OV5640
Pixel 5 Mega Pixel
Most Effective Pixels 2592 (H) x 1944 (V)
Pixel Size 1.4µm x 1.4µm
Compression Format YUYV/MJPEG
Focus Type Fixed Focus
Object Distance 1M-infinity
Interface Type MIPI
FOV 25°
Support OS Support Linux, Android and Windows

Description

This camera module is based on OmniVision OV5640 CMOS Image Sensor, the cost-effective CMOS imaging solution that enables high-speed image capture capabilities, and includes variable functions, such as gain, frame rate, and exposure while maintaining low power consumption. The sensor has a 1/4 Inch optical format, which combines with the pixel size of 1.4um(H) x 1.4um(V), resulting in the 5.0 Megapixel support at 30 fps 2592H x 1944V for maximum video performance.

Features

◆5MP resolution with Omnivision OV5640 CMOS image sensor
◆Fixed Focus/Manually adjustable
◆High quality image sensor, high sensitivity
◆Support Linux, Android and Windows
◆Flexible and adjustable, fits well with any of your products
◆2592*1944 resolution
◆MIPI Interface
◆Electronic Rolling Shutter
◆Fully Customizable

Applicaitons

security industry, home and entertainment, medical devices, smartphones, tablets, PC multimedia, embedded system, robotics, drones, medical equipment, artificial intelligence, and more.

5MP FPC Camera Module Ov5640 Camera Board 25 Degree Lens CMOS Image Sensor

5MP FPC Camera Module Ov5640 Camera Board 25 Degree Lens CMOS Image Sensor
