OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
OV3660 ESP32 Camera Module 24 Pin Dvp Interface Camera 1/5 Inch Lens
Specifications
Brand Name :
SINCERE FIRST
Model Number :
SF-300-RSM
Certification :
CE, FCC, RoHS, REACH, ISO
Place of Origin :
Guangdong , China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, Western Union, T/T, MoneyGram, Paypal and Others
Supply Ability :
350000 pcs / month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Package, Carton Box
Chip Type :
OV3660
Lens Size :
1/5Inch
F. NO :
2.8
Array Size :
2048×1536
View Angle :
D:130° / H:100°
Distortion :
＜-5%
Sensor :
OmniVision CMOS
Style :
Mini Camera
Data Format :
YUY/MJPG
Resolution :
1920*1080
Description

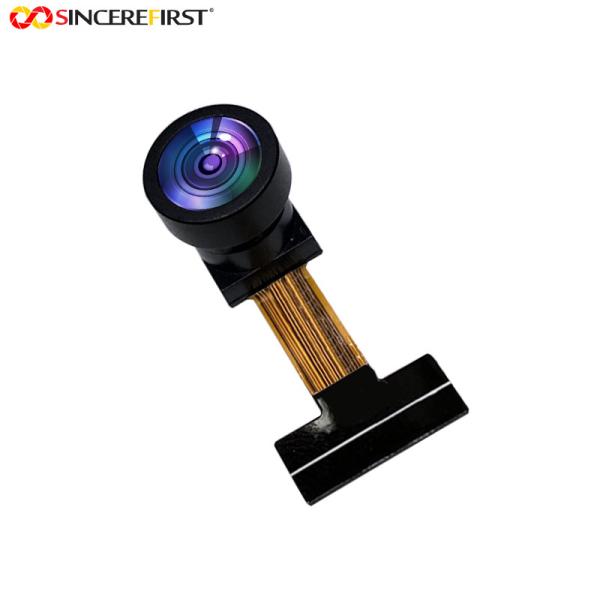

Wide Angle OV3660 ESP32 DVP Interface 24 Pin Camera Sensor Module

Specificaitons

Image Sensor OV3660
FOV 130°
Sensor CMOS
Interface DVP
Distortion <-5%
Pixel 3MP
Application Industrial devices
Chip Type OV Sensor
Special Feature Face Recognition
Data Storage Options SDK

Description

This camera module from OV3660 is a high-resolution 3M pixels digital camera based on the ESP32 chip. It features an OV3660 image sensor and can capture photos and videos with a field of view of 130°. It’s ideal for taking high-quality photos and video monitoring.

Features

◆Design based on esp32

◆Ultra low power design
◆1.4 µm x 1.4 µm pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise, improved quantum efficiency) ◆optical size of 1/5"

◆automatic image control functions: automatic exposure control (AEC), automatic white balance (AWB), automatic flicker detection, and automatic black level calibration (ABLC)

◆programmable controls for frame rate, AEC/AGC 16-zone size/position/weight control, mirror and flip, cropping, windowing, and panning
◆image quality controls: color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defective pixel canceling, and noise canceling

◆support for output formats: RAW RGB, RGB565/555/444, CCIR656, YCbCr422, and compression

◆support for LED and flash strobe mode
◆support for horizontal and vertical sub-sampling, binning

◆support 2x2 binning with binning filter to minimize binning artifacts

◆support for data compression output

◆support for images sizes: 3 megapixel and any arbitrary size scaling down from 3 megapixel

◆suitable for modulesizeof6.5x6.5x

Applicaitons

Take Pictures Regularly
Remote Video Monitoring
