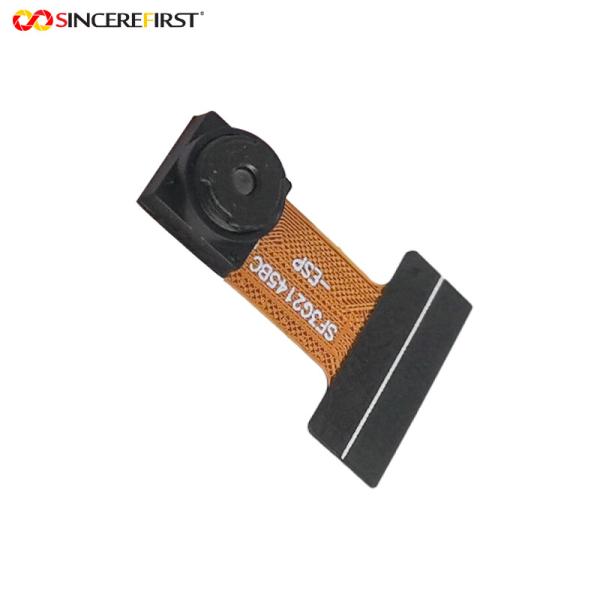

2MP GC2145 Sensor Color DVP 24 Pin ESP32 Camera Module For ESP 32
2MP GC2145 Sensor Color DVP 24 Pin ESP32 Camera Module For ESP 32
2MP GC2145 Sensor Color DVP 24 Pin ESP32 Camera Module For ESP 32
2MP GC2145 Sensor Color DVP 24 Pin ESP32 Camera Module For ESP 32
2MP GC2145 Sensor Color DVP 24 Pin ESP32 Camera Module For ESP 32
2MP GC2145 Sensor Color DVP 24 Pin ESP32 Camera Module For ESP 32
2MP GC2145 Sensor Color DVP 24 Pin ESP32 Camera Module For ESP 32
2MP GC2145 Sensor Color DVP 24 Pin ESP32 Camera Module For ESP 32
Specifications
Brand Name :
SINCERE FIRST
Model Number :
SF3G2145BC-ESP
Place of Origin :
Guangdong , China
Certification :
Rohs, Reach, ISO
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
L/C, Western Union, T/T, MoneyGram, Paypal and Others
Supply Ability :
350000 pcs / month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Package, Carton Box
View Angle :
73°
Distortion :
＜1.5%
Lens Size :
1/5inch
Chip Type :
GC2145 Sensor
EFL :
2.27±5%mm
F. NO :
2.2±5%
Sensor :
GC2145
Support Platform :
ESP32
Pinout :
24pin
Focal Length :
40cm
Description

2MP GC2145 Sensor Color DVP 24 Pin ESP32 Camera Module For ESP 32

Product Description:

ESP32 camera module is based on GC2415 Color rolling shutter image sensor. The GC2145 incorporates a 1600V x 1200H active pixel array, on-chip 10-bit ADC, and image signal processor. The 2MP GC2145 camera module is equipped with a 73°(DFOV) stock Lens. It supports RGB output format. The standrad operating temperature is between -20~70℃, with the stable Image temp. between 0~50℃.
ESP32 camera module can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.

Features:

1. Cost-Effective: Affordable solution for implementing visual capabilities in cost-sensitive projects.
2. Compact Size: Compact form factor enables integration into space-constrained applications.
3. Simplify Embedded Vision for All: Easy to set up and operate.
4. Higher Resolution: Captures images with high resolution and detail, allowing for precise visual analysis.
5. Low Power Consumption: Efficient power usage, making it suitable for battery-powered and energy-efficient applications.

Technical Parameters:

Image Sensor GC2145
Resolution 2MP
Optical Size 1/5"
Number of effective pixels 1600(H) × 1200(V)
Certification Rohs, Reach, ISO
Shutter Type Rolling Shutter
Focus Type Fixed Focus
Field of View(FOV) D73°
Keywords ESP32 Camera Module
Lens TR301-H211

Applications:

Machine

Computer Vision

Robotics

IoT

2MP GC2145 Sensor Color DVP 24 Pin ESP32 Camera Module For ESP 32

2MP GC2145 Sensor Color DVP 24 Pin ESP32 Camera Module For ESP 322MP GC2145 Sensor Color DVP 24 Pin ESP32 Camera Module For ESP 32
