USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module
USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module
USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module
USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module
USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module
USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module
USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module
USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module
Specifications
Brand Name :
SINCERE FIRST
Model Number :
SF13A886-AF
Certification :
CE, FCC, RoHS, REACH, ISO
Place of Origin :
Guangdong , China
MOQ :
5pcs
Price :
Negotiable
Payment Terms :
L/C, Western Union, T/T, MoneyGram, Paypal and Others
Supply Ability :
350000 pcs / month
Delivery Time :
7 - 15 Work Days
Packaging Details :
Package, Carton Box
Brand :
SincereFirst
Photosensitive Type :
Sony IMX577
Application :
ATM Machine
Lens Size :
1/2.3"
Module Size :
38mmx38mm
Standard Interface :
USB3.0 High Speed
Working Current :
300mA(VGA)
Operating Voltage :
USB-DC5V
Frame Rate :
27fps
Driving Mode :
Drive Free
Description

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module

Product Description:

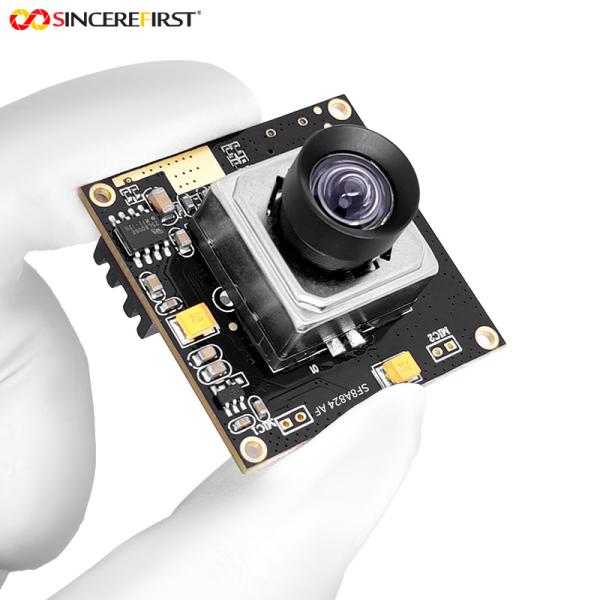

The Sony IMX577 CMOS 12MP Color Camera Module, a imaging solution designed for diverse applications. With a compact module size of 38mm x 38mm, this camera offers an impressive resolution of 12MP, The camera operates efficiently across a versatile imaging distance range of 1 cm to infinity, making it suitable for close-up shots as well as broader landscapes. It supports a frame rate of 27 frames per second, ensuring smooth video capture without compromising on image quality. Designed with a drive-free mode, the module simplifies your setup and allows for hassle-free operation. Built to withstand a wide temperature range of -20°C to 70°C, this camera module is ideal for both indoor and outdoor usage in varying environmental conditions.

Features:

1.High Resolution: 12MP Sony IMX577 CMOS sensor for detailed images.
2.Versatile Range: Imaging distance from 1cm to infinity.
3.Smooth Video: 27fps frame rate for fluid video capture.
4.Robust Design: Operates in -20°C to 70°C temperatures; drive-free for easy integration.

Technical Parameters:

Module Size 38mmx38mm
Drive Mode Drive Free
Frame Rate 27fps
Output Format MJPG/YUY2
Brand SincereFirst
Product Name USB Camera Module
Photosensitive Size 1/2.3"
Module Size 38mmX38mm
Standard USB3.0 High Speed
Imaging Distance 1cm-∞

Applications:

Imaging recognition, high definition shooting, wide dynamic scene application, text recognition, etc...

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module

Customized Service:

We can customize module shape, module head size, lens holder, imaging direction, VCM, lens, firmware, etc.

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module

Why Choose us?

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.

About us:

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module

Cooperative Brands & Customers:

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module

Details Pictures:

USB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor ModuleUSB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor ModuleUSB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor ModuleUSB3.0 12 Megapixel IMX577 CMOS Sensor M12 Lens RGB Color Camera Sensor Module
