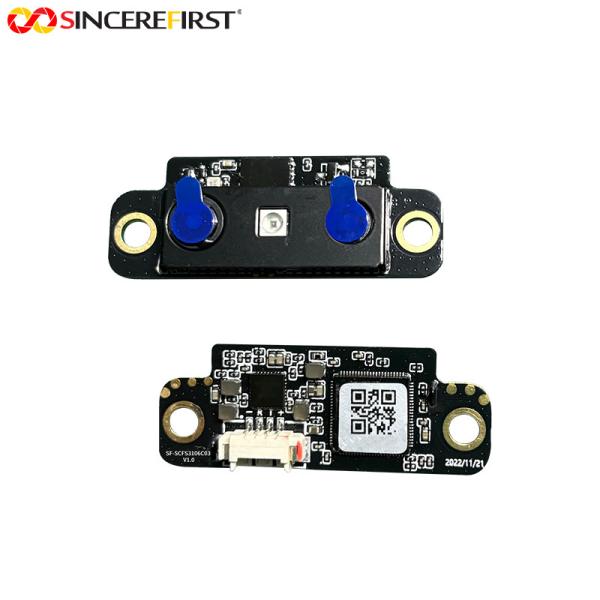

2MP Dual Face Recognition UART Camera Module With USB Interface

Product Description:

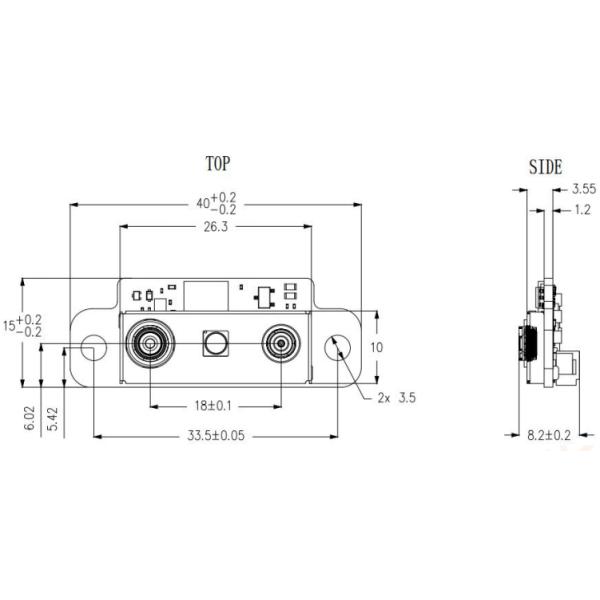

2MP Dual Face Recognition UART Camera Module With USB Interface is an embedded vision solution designed for intelligent door locks, access control systems and AIoT scenes, integrating 2 million pixel HD sensor and dual camera face recognition algorithm. Accurate identity verification at 1600*1200 infrared resolution. The ultra-small size of 40mm*15mm*8.2mm can be flexibly embedded in all kinds of terminal equipment, H57°, V72°, D84° wide field of view Angle covers the height range of 1.3-2 meters, with 40-100cm intelligent sensing distance, taking into account the needs of users of different heights and installation environment.

Its industrial reliability is particularly outstanding, in the -25℃ extreme cold to 70℃ high temperature, 40%-80% high humidity environment, continuous and stable operation, especially suitable for the northern cold region, the southern humid climate and complex conditions of industrial sites. The dual-camera algorithm supports live detection and anti-attack, and the millisecond response speed ensures smooth user experience, which is widely used in smart community unit doors, financial ATMs, office space access control, laboratory entrance verification and other scenes.

As the core hardware of intelligent security upgrade, the module provides full-link support from front-end collection to cloud decision-making for "face recognition + Internet of Things" application scenarios with high precision identification, strong environmental adaptability and open compatibility.

Features:

1. Extreme recognition performance: Fusion of dual-camera algorithm and 2-megapixel sensor achieves high-precision recognition at 1600*1200 infrared resolution, supports live detection and anti-attack, misidentification rate is less than one millionth, millisecond response speed ensures smooth user experience.

2. Full climate adaptability: -25℃ to 70℃ extreme temperature, 40%-80% high humidity environment can be stable operation, no fear of condensation, dust and other harsh conditions, especially suitable for the northern extreme cold area and the southern humid scene.

3. Scene adaptation flexibility: the ultra-small size of 40158.2mm can be embedded in various devices, the wide field of view Angle of H57°/V72°/D84° covers people of different heights, and the induction distance of 40-100cm is automatically adjusted to meet the diverse installation needs from smart door locks to industrial access control.

Technical Parameters:

Applications:

Office: Ideal for office environments that require high-definition video conferencing and document shooting.
Monitoring: Due to its high resolution and stability, it is suitable for security surveillance and video surveillance systems
Machine Vision: used for high-precision detection, positioning, measurement, etc.
Industrial Testing: used for automated testing, quality monitoring, part identification, etc.
Intelligent Transportation: used for license plate recognition, traffic monitoring, violation capture, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture, microscopic imaging, etc.

Customized Process:

1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
