Specifications
Brand Name :
WINBAY
Model Number :
WBG33A
Certification :
CE, OHSAS, ANSI,WATER MARK, ISO
Place of Origin :
CHINA
MOQ :
1
Price :
$160-230/set
Payment Terms :
L/C, T/T, Western Union, paypal
Packaging Details :
carton box with foam box inside
Production Standard :
Production Standard
Function :
Eye Wash
Nominal Pressure :
1.0mpa.
Work Pressure :
0.2-0.4mpa
Eye Wash Flow :
> 12L/min
Outlet Size :
Npt1-1/4
Net Weight :
4.5 KG
Product Size :
L * W * H = 305 * 405 * 300mm
Gross Weight :
5KG
Packing Size :
L * W * H = 380 * 380 * 220mm
Use Medium :
Water
Description

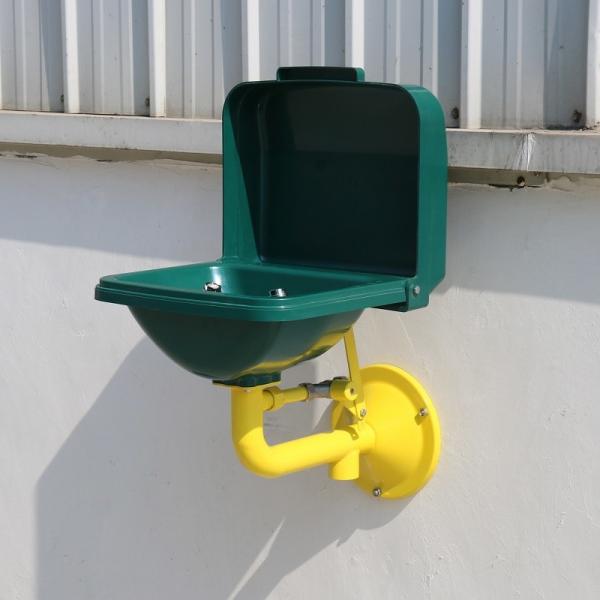

Round bracket Anti-corrosion Wall-mounted ABS-cover ABS basin eye washer ,eyewash station Auto open and close

Specification:

Open the eyewash basin cover, the eyewash spray automatically open .

Close the eyewash basin cover, the eyewash spray automatically close.

1.Product name: Wall mounted type stainless steel eyewasher with cover
2.Brand: WINBAY
3.Model: WBG33
4.Production standard: American ANSIZ358.1-2014.
5.Function: eye wash
6.Nominal pressure: 1.0mpa.
7.Work pressure: 0.2-0.4mpa.
8.The total height of the eye-washing machine: depending on the situation of the site (according to the us ANSIZ358.1-2014, the head of the washing nozzle should be within 838mm-1143mm from the height of the ground).
9.Eye flow: > 12L/min.
10.The inlet size: npt1/2
11.Outlet size: npt1-1/4,
12.Gross weight: 5KG
13.Net weight: 4.5 KG
14.Packing Size: L * W * H = 380 * 380 * 220mm.
15.Product size: L * W * H = 305 * 405 * 300mm.
16.Use medium:water meets the health standard
17.Main material: special SS304 stainless steel, which conforms to national standard, has good corrosion resistance of acid, alkali, salt and oil
18.EyeWash cover basin: use a 1MM thick stainless steel washbasin and basin cover with a diameter of 12 inches, effectively ensuring that the waste water is not overflowing for 15 minutes continuously.

product Wall mounted type stainless steel eyewasher with cover
medium water meets the health standard
Applicable places widely used in nuclear power, power station, pharmaceutical, medical, chemical, petroleum, ship, electronic, smelting, printing and dyeing, education and scientific researc

Round bracket Anti-corrosion Wall-mounted ABS-cover ABS basin eye washer ,eyewash station Auto open and closeRound bracket Anti-corrosion Wall-mounted ABS-cover ABS basin eye washer ,eyewash station Auto open and closeRound bracket Anti-corrosion Wall-mounted ABS-cover ABS basin eye washer ,eyewash station Auto open and closeRound bracket Anti-corrosion Wall-mounted ABS-cover ABS basin eye washer ,eyewash station Auto open and closeRound bracket Anti-corrosion Wall-mounted ABS-cover ABS basin eye washer ,eyewash station Auto open and closeRound bracket Anti-corrosion Wall-mounted ABS-cover ABS basin eye washer ,eyewash station Auto open and close
