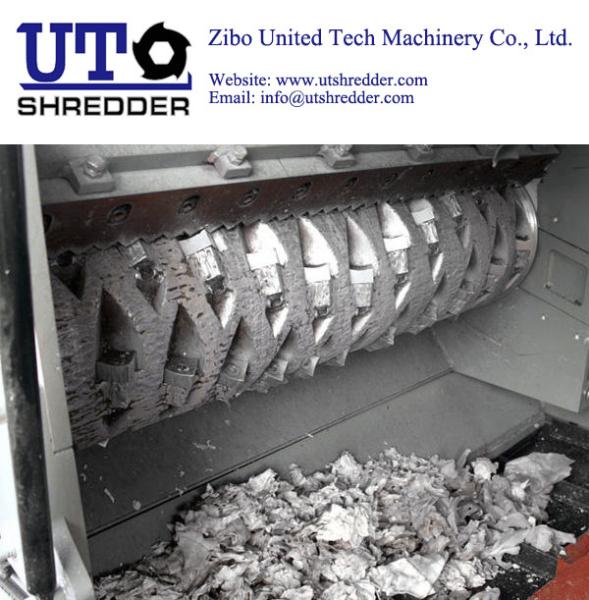

produce and supply high quality blade & knives in single shaft shredder / one rotor crusher
produce and supply high quality blade & knives in single shaft shredder / one rotor crusher
produce and supply high quality blade & knives in single shaft shredder / one rotor crusher
produce and supply high quality blade & knives in single shaft shredder / one rotor crusher
Specifications
Brand Name :
United Tech
Model Number :
single shaft shredder components
Place of Origin :
Zibo City, China
MOQ :
1 set
Delivery Time :
Confirmed with Clients
Packaging Details :
plywood package or according to client's requirements
Certification :
ISO9001:2008
Price :
Negotiation
Supply Ability :
6-15 sets per month
Description

Zibo United Tech Machinery Co., Ltd. can provide customized service by selecting the most suitable tool material and adopting the most accurate heat treatment process to ensure the utmost performance of tool according to the application and performance required by customers.

Shredder & Crusher & Granulatro Blade/ Knives in Zibo United Tech Machinery Co., tld.

1. Material: D2, SKD11, HSS, 9CRSI, T10... Or as clients' requested.

2. Hardness: HRC48-68 according to customers request.

3. Triple tempt for optimum wear resistance.

4. Precise heat treatment.

5. Excellent cutting longevity and wear resistance.

6. High intensity,high toughness,small thermal deformation.

7. Blades are eliminated unwanted and uncontrollable residual stress.

8. Professional manufacture experience.

9. Strict quality management system.

10. Small orders accepted.

11. OEM and ODM.

produce and supply high quality blade & knives in single shaft shredder / one rotor crusher

Model S2250 S2260 S3060 S3080 S4080 S40100
dimension L/W/H(mm) 1780*1190*1690 1780*1290*1690 2455*1478*1700 2455*1678*1700 2825*1747*1875 2825*2004*1875
Cutting Chamber Size(mm) 790*500 790*600 1200*600 1200*800 1400*800 1400*1000
RAM(mm) 500 600 600 800 800 1000
Rotor Blade Diameter(mm) 220 220 300 300 390 390
Rotor Ratate Speed (r/min) 80 80 80 80 80 80
Rotor Blade Size(mm) 35*35*23 35*35*23 40*40*25 40*40*25 46*46*30 46*46*30
Rotor Blade Quantity (PCS) 20+4 24+4 30+4 42+4 42+4 54+4
Counter Quantity(PCS) 2+2 2+2 2 2 2 25
Rotor Motor Power(KW) 15 18.5 22 30 37 45
Material Return Power(KW) 1.5 1.5 2.2 2.2 2.2 5.5
Model S40120 S40150 S48150 S48200 S48250
dimension L/W/H(mm) 2825*2564*1875 2825*2964*1935 3255*4415*2720 3255*4415*2720 3255*4615*2720
Cutting Chamber Size(mm) 1400*1200 1400*1500 1650*1500 1650*2000 1650*2500
RAM(mm) 1200 1500 1500 2000 2500
Rotor Blade Diameter(mm) 390 390 480 480 480
Rotor Ratate Speed (r/min) 80 80 80 80 80
Rotor Blade Size(mm) 46*46*30 46*46*30 60*60*30.5 60*60*30.5 60*60*30.5
Rotor Blade Quantity (PCS) 66+4 90+4 90+4 114+4 144+4
Counter Quantity(PCS) 2 3 3 4 5
Rotor Motor Power(KW) 55 75 90 75+75 90+90
Material Return Power(KW) 5.5 5.5 7.5 7.5 7.5
Model S66150 S66200 S66250 S66300 S66400
dimension L/W/H(mm) 4100*3450*3000 4100*3950*3000 4100*4450*3000 4100*5500*3000 4100*6800*3000
Cutting Chamber Size(mm) 1550*1500 1550*2000 1550*2500 1550*3000 1550*4000
RAM(mm) 1500 2000 2500 3000 4000
Rotor Blade Diameter(mm) 660 660 660 660 660
Rotor Ratate Speed (r/min) 80 80 80 80 80
Rotor Blade Size(mm) 60*60*30.5 60*60*30.5 60*60*30.5 60*60*30.5 60*60*30.5
Rotor Blade Quantity (PCS) 126+4 158+4 225+4 291+4 363+4
Counter Quantity(PCS) 3 4 5 6 8
Rotor Motor Power(KW) 75+75 90+90 110+110 132+132 160+160
Material Return Power(KW) 7.5 7.5 7.5 7.5 7.5

Note:

1. The voltage about the power supply can be selected by the customer’s specific requirements.

2. The shredder capacity can be influenced by the material compostion and output size.
