Double shaft shredder have been designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel. Pallets, etc. And particularly well suited to the size reduction of bulky or voluminous materials which could include contamination such as metals or stones. Depending on input material and the following process the shredded material can be used directly or go into the next step of size reduction. It can efficient to increase the bulk density and decrease the transportation cost. It is widely used in industry waste recycling, medical recycling, electronic recycling, pallet recycling, municipal solid waste recycling, plastic recycling, tire recycling, paper making industry, etc.

Rubber Tire Recycling

As we known, the black pollution- tires cover all over the world and it is growing at one billion waste tire every year. It does damage to the environment. The traditional disposal method of waste tire is to burn or pile up outdoor for a long time, but whether burning or piling up, waste tire would take up a lot of land and cause new pollution during waste tires.

So we need to recycle waste tires. Rubber tire recycling machine from Zibo United Tech Machinery Co., Ltd. can crush waste rubber into chip. The finial rubber granules can be made into rubber pipe, conveyor belt, rubber floor tile.

Tire Recycling line is adopting physical recycling method and is suitable for our company develop and produce a waste tire and rubber recycling equipment, mainly is suitable for the grinding, wire tire, steel wire ties and all sorts of waste rubber products. This waste tire recycling plant running in normal temperature, no need to add any other chemicals, no pollution to the environment.

Components of rubber tire recycling:

· Infeed Conveyor Belt – esay control to feeding tires

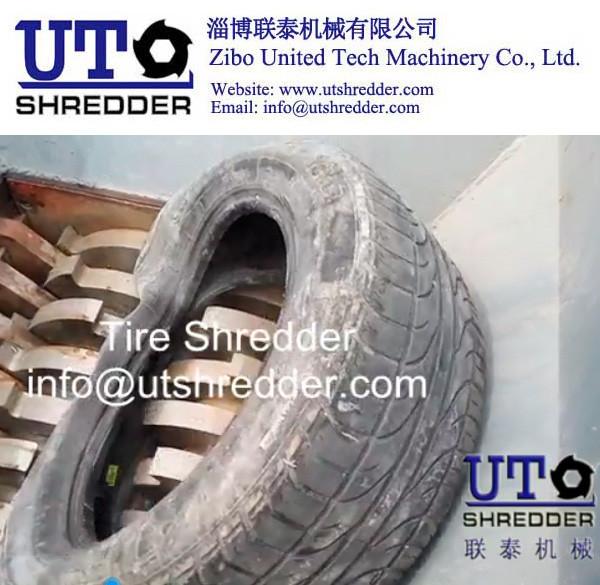

· Twin Shaft Shredder – shears the tires into strips

· Conveyor Belt – transport shred to the shredder

· Overbelt Magnet – separate the liberated steel from the rubber chip

· Shredder – shred into 15-20mm chips and liberates remaining steel wires from the rubber

· Vibrating Screen – separate chip according to the sizes

· Magnetic Separator – remove the reinforcing steel wires from tire rims

· Granulator –shred them to 1-5mm and separate the fiber

· Magnetic Separator – remove remaining steel wires

· Big bag station

· Dust Collector – remove dust and fines from the system

· Control Panel

• Welcome to contact with us to get more details product information. We are glad to introduce you the most suitable machie, design the most resonable proposal as your production requirements. Our task is to support our customers who are in the solid waste & refuse management industries to get a higher production efficient, impove their product quality and value so that they can get a greatest progress in the keen competition.

• Model	D2830	D2840	D2860	D2880	D3260
  dimension L/W/H(mm)	1450x1060x1850	1590x1060x1850	2560x1060x1850	2820x1060x1850	2658x1366x1911
  Cutting Chamber size C/D(mm)	300x470	400x470	600x480	800x480	610x580
  Rotor Blade Diameter(mm)	Φ280	Φ280	Φ280	Φ280	Φ320
  Rotor Ratate Speed (r/min)	14.2	14.2	14.2	14.2	14.8
  Rotor Blade Quantity (PCS)	15	20	20	20	15
  Rotor Blade Thickness(mm)	20	20	30	40	40
  Rotor Motor Power(KW)	7.5	5.5+5.5	7.5+7.5	11+11	15+15
  Model	D3280	D32100	D32120	D42100
  dimension L/W/H(mm)	2930x1385x1927	2930x1385x1927	3416x1946x2275	3275x1946x2275
  Cutting Chamber size C/D(mm)	890x580	1020x580	1213x736	1052x736
  Rotor Blade Diameter(mm)	Φ320	Φ320	Φ320	Φ430
  Rotor Ratate Speed (r/min)	14.8	14.8	14.8	9.2
  Rotor Blade Quantity (PCS)	22	25	30	20
  Rotor Blade Thickness(mm)	40	40	40	50
  Rotor Motor Power(KW)	18.5+18.5	22+22	30+30	30+30
  Model	D42120	D42150	D52120	D52160
  dimension L/W/H(mm)	3416x1946x2275	3716x2234x2670	3716x2234x2670	4016x2234x2670
  Cutting Chamber size C/D(mm)	1213x736	1224x948	1224x948	1624x948
  Rotor Blade Diameter(mm)	Φ430	Φ516	Φ516	Φ516
  Rotor Ratate Speed (r/min)	8.2	8.2	9.2	9.21875
  Rotor Blade Quantity (PCS)	24	30	20	20+10
  Rotor Blade Thickness(mm)	50	50	60	60+40
  Rotor Motor Power(KW)	37+37	45+45	45+45	55+55

  Note:

  1. The voltage about the power supply can be selected by the customer’s specific requirements.

  2. The shredder capacity can be influenced by the material compostion and output size.
