Auto Single-Head Bending Machine -SB 18
Auto Single-Head Bending Machine -SB 18
Specifications
Brand Name :
YUAN
Model Number :
SB 18
Certification :
CE,ISO,UV
Place of Origin :
China
MOQ :
1 set
Price :
5000-7000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets
Delivery Time :
40 days
Packaging Details :
wooden box
Max. Bending Capacity :
￠18×2 mm
Bending Radius Region :
20-150 mm
Bending Angle Region :
0-190 degree
Effective Length Over Mandrel :
2000 mm
Oil Pressure System Motor :
2.2 kw
Max. Pressure :
160 kg/cm
Machine Dimension :
2300×550×1300 mm
Machine Weight :
1000 Kg
Description

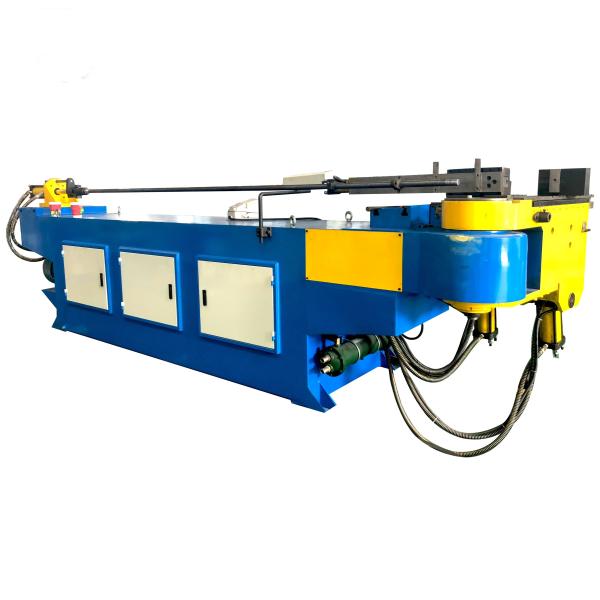

Auto Single-Head Bending Machine

Auto Single-Head Bending Machine
Model SB 18/28/38/42/50/63/76/89 NCB Series:
Characteristics of Pipe Bending Machine:It adopts imported special controlling system. The
action of the machine is stable. It has mode of manual and auto, the operator can change the
Programs.This series is suitable for two-dimensional bending at high speed and in mass
production.Auto Single-Head Bending Machine -SB 18Auto Single-Head Bending Machine -SB 18Auto Single-Head Bending Machine -SB 18

ain Technical Parameter Unit 18NCB 28NCB 38NCB 42NCB 50NCB 63NCB 76NCB 89NCB
Max. Bending Capacity mm ￠18×2 ￠28×2 ￠38×2 ￠42×3 ￠50×2 ￠63×4 ￠76×5 ￠89×10
Bending Radius Region mm 20-150 20-180 20-200 20-250 20-250 25-350 30-350 40-400
Bending Angle Region Degree 0-190 0-190 0-190 0-190 0-190 0-190 0-190 0-190
Effective Length Over Mandrel mm 2000 2000 2000 2200 2200 2500 3200 4000
Oil Pressure System Motor kw 2.2 2.2 4 5.5 5.5 7.5 7.5 11
Max. Pressure kg/cm 160 160 160 160 160 160 160 160
Machine Dimension mm 2300×550×1300 2500×650×1300 2500×700×1300 3000×800×1300 3000×800×1300 4200×1200×1350 5000×1200×1350 5300×1350×1200
Machine Weight kg 1000 1300 1500 1800 1800 2500 3000 4000
