CNC NC pipe tube automatic hydraulic electric bender bending machine for pipe 38mm
CNC NC pipe tube automatic hydraulic electric bender bending machine for pipe 38mm
CNC NC pipe tube automatic hydraulic electric bender bending machine for pipe 38mm
CNC NC pipe tube automatic hydraulic electric bender bending machine for pipe 38mm
CNC NC pipe tube automatic hydraulic electric bender bending machine for pipe 38mm
CNC NC pipe tube automatic hydraulic electric bender bending machine for pipe 38mm
CNC NC pipe tube automatic hydraulic electric bender bending machine for pipe 38mm
CNC NC pipe tube automatic hydraulic electric bender bending machine for pipe 38mm
Specifications
Brand Name :
YUAN
Model Number :
SB-38CNC-3A-1S
Certification :
CE,ISO,UV
Place of Origin :
China
MOQ :
1 set
Price :
3000USD-30000USD
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets
Delivery Time :
25 days
Packaging Details :
wooden box
Max. Bending Capacity :
￠38*2 mm
Bending Radius Range :
20-200 mm
Max. Bending Angle :
190°
Bending Speed :
180 °/sec
Turning Speed :
200 °/sec
Feeding Speed :
1000 mm/sec
Mandrel length :
3200
Description

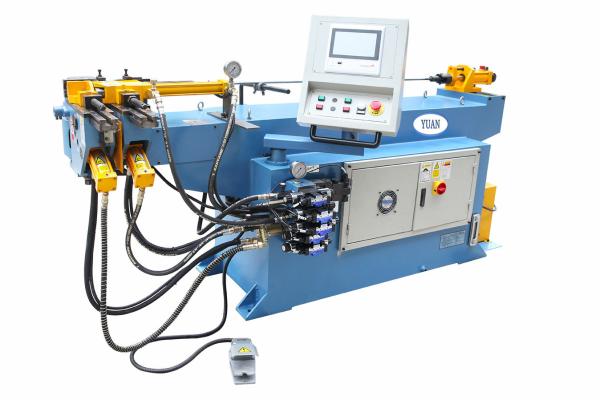

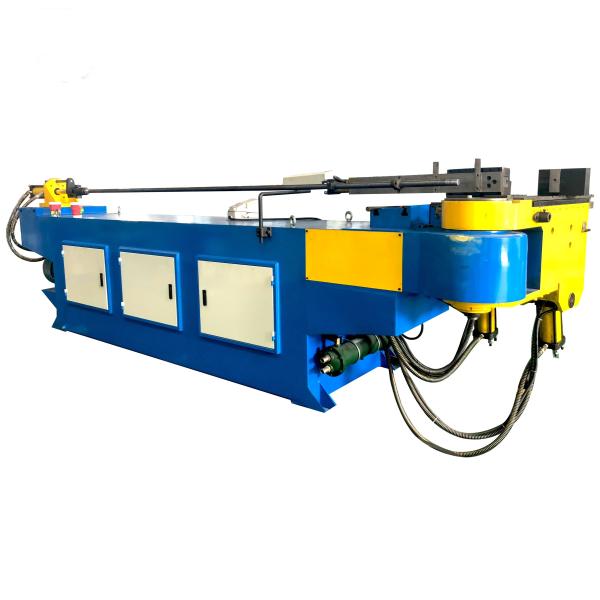

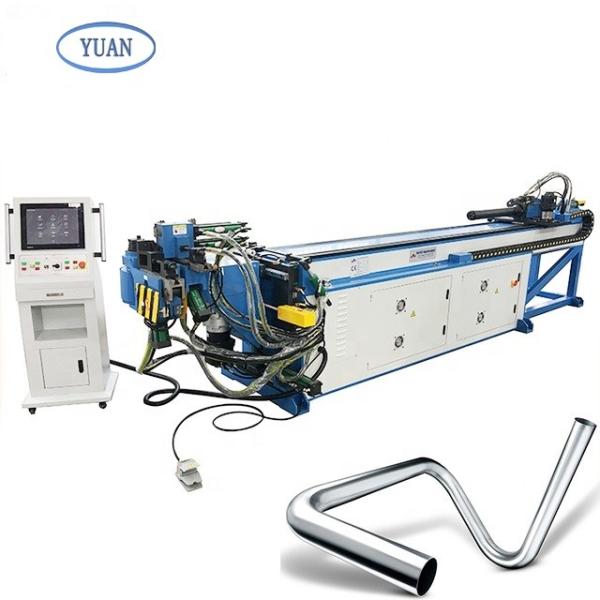

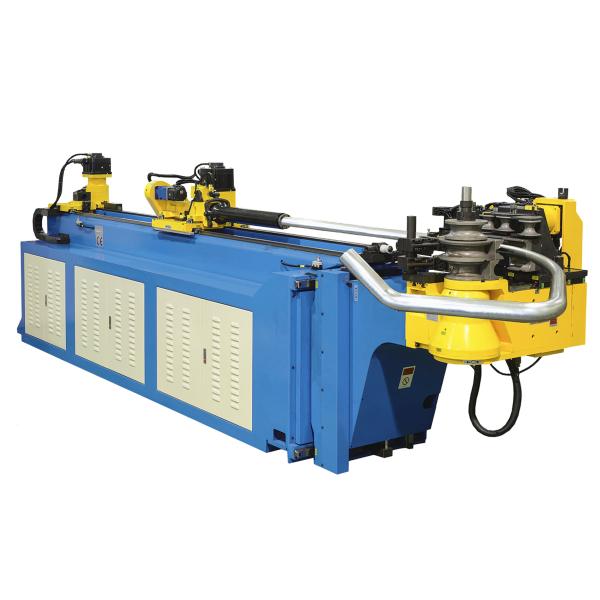

CNC NC Pipe Tube Automatic Hydraulic Electric Bender Bending Machine

SB－CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinatesofmotions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending springback compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection.

Pipe bending(C axis), pipe rotating (B axis), and pipe feeding(Y axis) are all driven by servomotor.

Main Technical Parameter

Name Unit Parameter
Max. Bending Capacity mm ￠38*2
Bending Radius Range mm 20-200
Max. Bending Angle ° 190°
Bending Speed °/sec 180
Turning Speed °/sec 200
Feeding Speed mm/sec 1000
Bending Precision ° ±0.10
Turning Precision ° ±0.10
Feeding Precision mm ±0.10
Bending Servomotor Power KW 3.5
Turning Servomotor Power kW 0.4
Feeding Servomotor Power kW 0.75
Mandrel length mm 3200
L*W*H (Packaging Dimension) mm 4200*1100*1500
Weight T 2.0

Configuration

Name Manufacturer
Hydraulic Motor Suzhou Runmali
Hydraulic Pump Wuxi Tuoli
Hydraulic Valve Yuci Yuken
Oil way Board Suzhou Boguan
Cylinder Shanghai Qifan
Oil tube Suzhou Kejia
Touch screen Taiwan Weinview(Imported)
PLC Japan Mitsubishi(Imported)
Servo Motor Japan Mitsubishi(Imported)
Angle controller Japan Nemicon(Imported)
Switch power Wenzhou Changxing
Contactor German SCHNEIDER(Imported)
Other Electric Parts

German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
