Specifications
Brand Name :
YUAN
Model Number :
NC100
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
6000-13000USD
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
30 SETS
Delivery Time :
25 days
Packaging Details :
wooden box
Product name :
Aluminum Profile Bending Machine
Application :
Profile Bending
Machine Type :
Pipe and Tube Bending Machine
Keyword :
Pipe Bending
Description

High quality 100NC pipe and tube bending machine for bend metal tube and stainless tube

Characteristics

1 Bending-Auto driven by hydraulic, Rotaion-Auto by servomotor, Feeding--by manual

2 Pneumatic movement of machine------clamp, pressure clamp, clutch, mandrel (High speed)

3 Automatic lubrication system of machine head and mandrel

4 XYZ transferred to YBC which is convenient for user

5 Different tooling design customized for user

6 Anticipated Mandrel Extraction good for tube of very small thickness

7 Reclamp function suitable for tube length without limitation

8 Optional function ------punching hole, cutting, multiple radius, roll bending, etc

9 Standard tooling including clamp die, wiper die, mandrel, pressure die, bend die

10 Seperate oil tank with oil filter--easy for cleanning

11 Option control system----Industrial computer with function of 3D simulation, 3D view, inch input, drawing input, remote control

100NC Hydraulic Tube Bending Machine , XYZ Stainless Steel Pipe Bender 4kw

Parameters:

Main specification and technical parameters
type
bending ability
bending radius
bending angle
power of motor
working pressure
38NC
Φ38×2.0
200
185°
4kw
12MPa
50NC
Φ50×2.5
250
185°
5.5kw
12MPa
63NC
Φ63×4.0
300
185°
5.5kw
12MPa
75NC
Φ75×6.0
350
185°
7.5kw
12MPa
100NC
Φ100×4.5
400
185°
11kw
12MPa
120NC
Φ120×5.0
500
185°
15kw
12MPa
159NC
Φ159×10
550
185°
22kw
14MPa
168NC
Φ168×14
700
185°
22kw
14MPa
219NC
Φ219×18
850
185°
30kw
14MPa

The Steps of Pipe Bending Machine

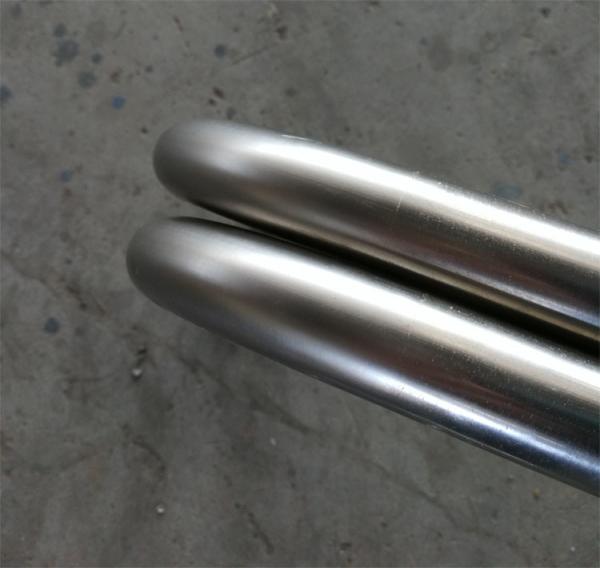

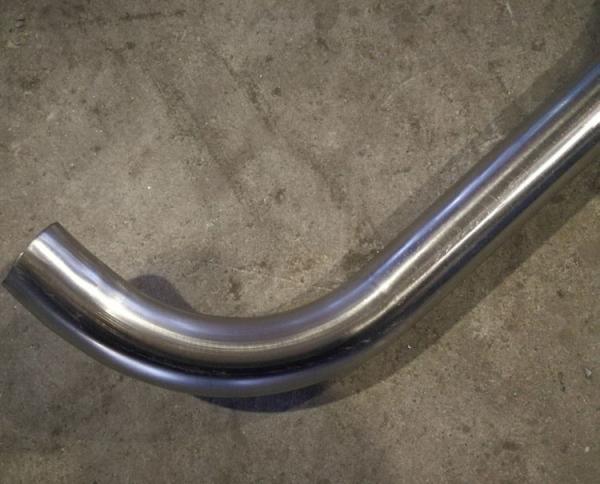

These Shapes Can Be Bent

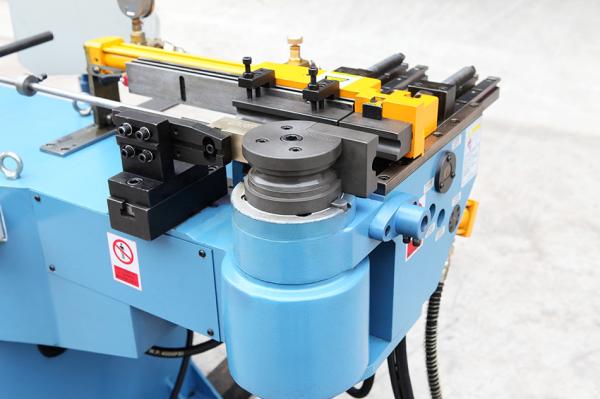

Bend tooling (Include: bend die, mandrel, pressure die, clamping die, wiper die)
