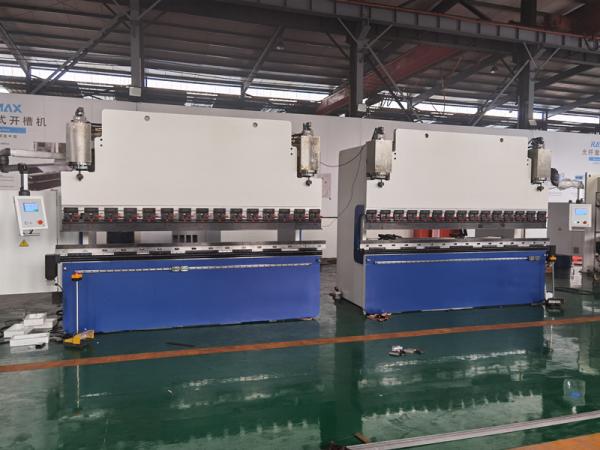

4mm Tandem Press Brake Street Light Pole Production Line 6000mm
4mm Tandem Press Brake Street Light Pole Production Line 6000mm
4mm Tandem Press Brake Street Light Pole Production Line 6000mm
4mm Tandem Press Brake Street Light Pole Production Line 6000mm
Specifications
Brand Name :
YUAN
Model Number :
2WE67K-300T/6000
Certification :
CE,ISO,UV
Place of Origin :
China
MOQ :
1 set
Price :
40000-90000USD
Payment Terms :
T/T, L/C
Supply Ability :
50 sets
Delivery Time :
40 days
Packaging Details :
wooden box
Capacity :
300MT x 2
Length :
6000mm x 2
Synchronize :
Electric-Mechanic
Suitable Pole :
Light pole
Conic pole plate thickness :
3~4mm
Octagonal pole thickness: :
3~6mm
Description

Light Pole Making Tanderm Press Brake Street Light Pole Production Line

it is suitable for one piece type polygonal and circle taper light pole. it is automatic welding line, the trolley with inverter speed adjustable motor can pull the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.

Light Pole Forming
Tandem hydraulic press brake is the Key forming machine;
Total machine length and tooling length shall be as long as pole height;
Press brake capacity shall be bigger enough and cost effective;
Machine throat depth, open height will limit max pole diameter.
Engineer can optimize bending process to make bigger range;
Octagonal (polygonal) pole bending can be like process of aside ;
Conic steel light pole bending will need special tooling;

Capacity 300MT x 2 400MTx2
Length 6000mm x 2 6000mm x 2
Synchronize Electric-Mechanic Electric-Mechanic
Suitable Pole Light pole Light pole
Conic pole plate thickness 3~4mm 3-5 mm
Octagonal pole thickness 3~6mm 3-8 mm
Controller Estun E21 Estun E21

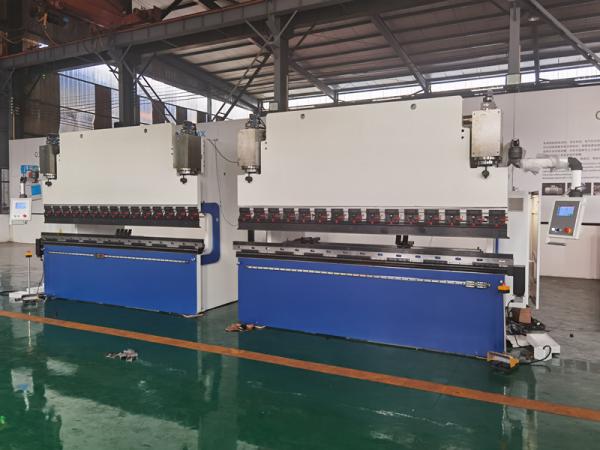

4mm Tandem Press Brake Street Light Pole Production Line 6000mm4mm Tandem Press Brake Street Light Pole Production Line 6000mm

1. For long pole forming, machine will be as long as the pole;
2. Tandem hydraulic press brake means 2 or more machines linked together;
3. The press brakes shall be synchronized

4. Hydraulic system will give enough press force;
5. Air bending for Octagonal pole;
6. Full press for conic pole form;
7. Various tooling for different shape and thickness pole

8. The press brakes shall be synchronized

9. Multi-press brake shall work together during bending;
10. Steel plate forming same time;
11. Polygonal pole bending is by V die and punch ;
12. Conic need male -female tool.
