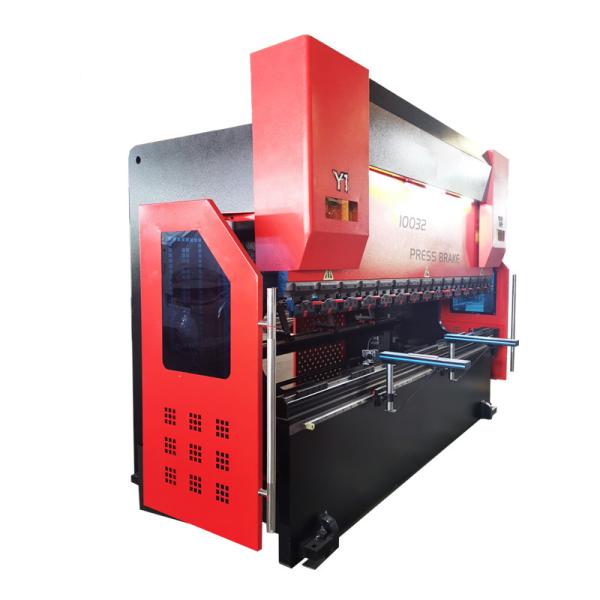

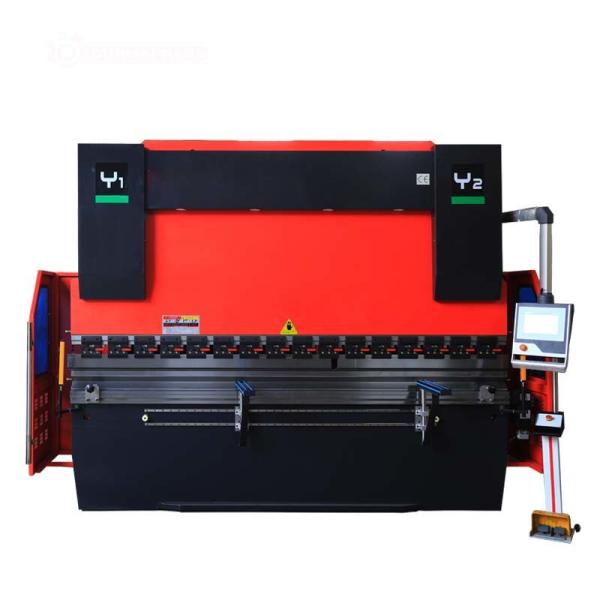

160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
Specifications
Brand Name :
YUAN
Model Number :
WE67K-200T/3200
Certification :
CE,ISO,UV
Place of Origin :
China
MOQ :
1 set
Price :
19000USD-30000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets
Delivery Time :
25 days
Packaging Details :
wooden box
Name :
CNC Hydraulic Press Brake Bending Machine
Slider Stroke :
250 mm
Throat Depth :
350 mm
Material :
Stainess Steel
Width of Working :
200 mm
Description

CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 160Ton 3 M

The CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.

1. High bending precision,fast working speed, and efficient,operational safety,performance stably.
2. Good antiknock frame(welded-steel plate construction),whole frame is been tempering,reduce modification,using large-scale CNC milling machine,process in one time,insure high-precision.
3. Using international brand parts and cnc.
4. Visual operating system,easy operation,convenient,multi-functions and practical.
5. All parts are produced by cnc produce center,according to standard drawing.
6. High executive force,high standard and high professional machine assembled team.
7. Power safeguard design,with light curtain protection,open door power-off function,more safety when operating.
8. Fashion outlook,delicate,and beautiful,machines are compact design,small floor space,easy operation.
9. Providing comprehensive bending program for all press brake,shearing machine user.
10. Replaceable worktable and the upper and lower mound,no welding,forging and precision grinding.
11. Thickening the slider and the vertical plate, to ensure the stability of the machine tool and reduce the elasticity.
12. Rational layout of the oil pipeline design, to prevent the oil temperature rise quickly.
13. The similarity of images and shipping machine can reach 99.5%.
14. In time fast delivery.
160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M 160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
Model
WE67K 200T/ 3200
Pressing force
2000
KN
Working length
3200
MM
Distance between uprights
2600
MM
Stroke
250
MM
Distance table/ram
485
MM
Gap
400
MM
Table width
200
MM
Apprach speed
100
MM/S
Working speed
11
MM/S
Return speed
120
MM/S
Motor
22
KW
Volume of oil tank
550
L
Overall Dimension
3800*1900*2800
MM

Main Configuration

DA53T CNC Controller
Adopting HIWIN ball screw and linear guide rail, accuracy 0.01mm
Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection
Automatic Mechanical compensation
Upper and lower dies(86°, R0.6mm, material: 42CrMo)

Safety Equipment:
Safety Standards(2006/42/EC)
1.EN 12622:2009+a1:2003
2.EN ISO 12100:20110
3.EN 60204-1:2006+A1:2009

Fast Clampings
Standard double V lower die with different size and various shaped slots for choice ,convenient for exchanging dies,capable for bending regular plates, with high cost performance CNC double-V die workbench,convenient for installation of segmented dies
 160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
Siemens Motor
German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment
Mechanical Crowning Worktable
Through compensation, the angle of the workpiece is prevented from increasing in the full length range, the angle and linear accuracy of the bent workpiece are effectively improved.
 160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
Spain FAGOR Grating Ruler
Slider position signal is feedbacked to controller by spain FAGOR Grating ruler, then the CNC Controller adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider ( Y1,Y2) running on the same frenquency ,maintaining the parallel state of the worktable
Press Brake Tooling
Press Brake toolings are made from 40CrMo Materials with hardness up to 52 degrees to ensuring die service life
 160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
Front Supportor
Front supporter with features of simple structurer, powerful functions ,can be adjusted up and down , or moved along the workbench in rightwards and leftwards
 160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
160Ton CNC Hydraulic Press Brake Bending Machine DA53T 6+1 DA50 Controller 3M
Foot Pedal
The Foot switch from South Korea Kacon brand improves the lifespan of the machine and keeps the machine working more stable
