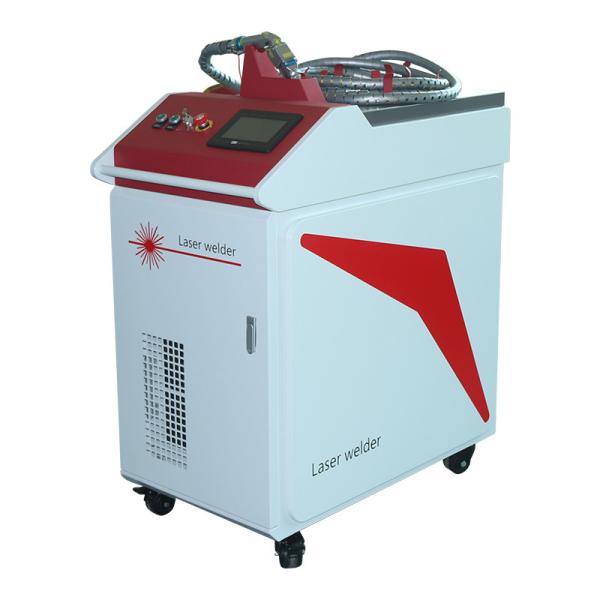

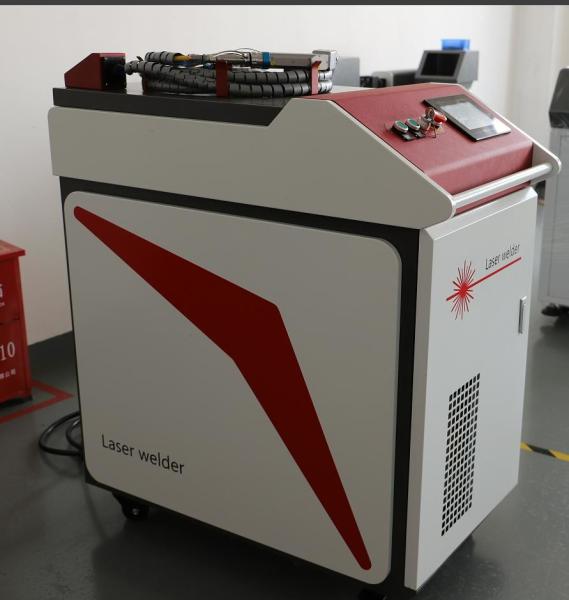

6mm 1500w IPG Handheld Fiber Laser Welding Machine For Carbon Steel
6mm 1500w IPG Handheld Fiber Laser Welding Machine For Carbon Steel
6mm 1500w IPG Handheld Fiber Laser Welding Machine For Carbon Steel
6mm 1500w IPG Handheld Fiber Laser Welding Machine For Carbon Steel
6mm 1500w IPG Handheld Fiber Laser Welding Machine For Carbon Steel
6mm 1500w IPG Handheld Fiber Laser Welding Machine For Carbon Steel
Specifications
Brand Name :
YUAN
Model Number :
1500W
Certification :
CE,ISO,UV
Place of Origin :
China
MOQ :
1 set
Price :
12000-69000USD
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
50 sets
Delivery Time :
25 days
Packaging Details :
wooden box
Laser power :
1000W 1500W 2000W
Fiber laser source :
IPG / Raycus /Max / JPT
Weld width :
1 - 5mm
Weld head :
Wobble weld head
Welding head weight :
0.8kg
Control system :
Hanwei brand
Description

Handheld fiber laser welding machine 1500w for 6mm Carbon steel

The system is mainly composed of a laser unit and a weiding unit; Hand-heid welding,taking into account the flexibility,high efficiency and high weld quality of laser welding; Modular design and layout of the overall equipmet,beautiful and easy to maintain and debug; High system flexibility,compatible with a wide range of models,and short changeover times; Simple operation,no job certificate, no teacheer can also weld beatiful products; Smooth and beautiful weld seam,teduce the followup grinding process,save time and cost; Welding workpiece has no distortion, no welding scar, and very strong.

Handheld laser welder is quite fast and easier than traditional MIG & TIG Welding
Experienced MIG and TIG users benefit from the more rapid and flexible processing capabilities of fiber handheld laser welder
Up to 4X faster than TIG
Easy to learn and operate with highest process consistency
High quality welding of thick, thin and reflective metals without distortion, deformation, undercut or burn-through
Welding of dissimilar metal parts of different thicknesses
Dramatically low heat input and minimized heat affected zone
Minimal part setup and post-processing grinding or polishing
Increased productivity with no need for machining or straightening deformed parts.

Wire Feeder

1000W and 1500W support 0.8mm 1.0mm 1.2mm wire, 2000W support 0.8mm to 1.6mm.

Wire send and back speed adjust through touch panel.

If two weld metal gap more than 0.2mm that need filler wire.

Double wobble weld head technology
It can perfectly replace some traditional argon arc welding and electric welding in the welding of thin stainless steel plate, iron plate, aluminum plate and other metal materials;
Light weight, small size, ergonomic design and comfortable grip;
The operation is easy to get started, and the requirements for operators are extremely low;
Beautiful welding seam, fast speed, no welding marks, no discoloration, no need for later polishing;
Strong anti-interference.

Double pendulum laser welding head can weld aluminum materials

6mm 1500w IPG Handheld Fiber Laser Welding Machine For Carbon Steel6mm 1500w IPG Handheld Fiber Laser Welding Machine For Carbon Steel6mm 1500w IPG Handheld Fiber Laser Welding Machine For Carbon Steel

Parameters:

Laser power 1000W 1500W 2000W
Laser type fiber technology
Laser wavelength 1080nm
Fiber laser source IPG / Raycus /Max / JPT
Weld head Wobble weld head
Weld width 1 - 5mm
Welding head weigt 0.8kg
Control system Hanwei brand
Weld mode system CW/ PWM / Argon Arc
Weld speed 0-120mm/s
Weld method Flat / Horizontal /Vertical /Overhead
