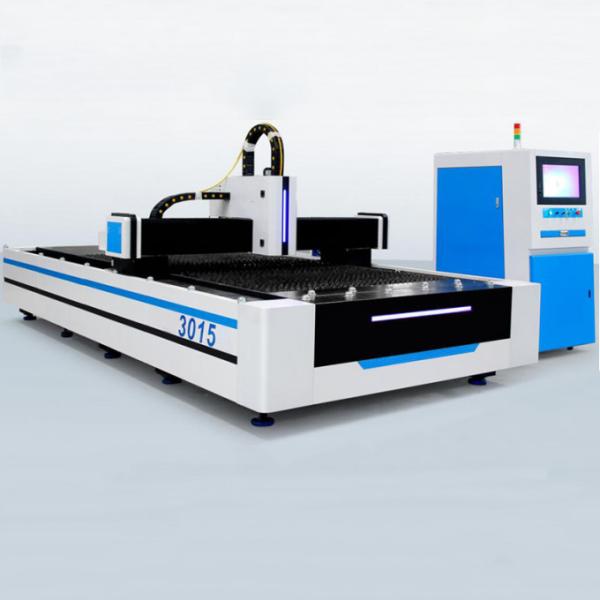

Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015
Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015
Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015
Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015
Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015
Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015
Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015
Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015
Specifications
Brand Name :
YUAN
Model Number :
3000W
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
17000-29000USD
Payment Terms :
T/T, D/P, L/C
Supply Ability :
30 SETS
Delivery Time :
25 days
Packaging Details :
wooden box
Application :
LASER CUTTING
Cutting Area :
3000*1500mm
Laser Head Brand :
Raytools
Guiderail Brand :
HIWIN
Laser Source :
RAYCUS
Servo Motor :
FUJI
Description

factory selling sheet metal optical fiber laser pipe cutting machine with optional tube cut double table 3015 power 2000w 3000w

Fiber laser cutting machine is always used in sheet metal processing, advertising sign production, cabinets, mechanical parts, kitchenware, sanitary ware, auto parts, machinery manufacturing, metal crafts, saw blades, electrical parts, glasses industry, circuit boards, electrical kettles, medical microelectronics, hardware, doors, windows and other industries.

The processing materials usually include stainless steel, carbon steel, galvanized steel, aluminum, copper, iron and so on. The working area is usually available in the following type: 3000X1500mm, 1300x2500mm, 2000x4000mm, 2000x6000mm, totally depends on customer. The normal laser power is 1000W, 1500W, 2000W, 3000W, 4000W.
The Advantages of Fiber Laser Cutting Machine

1. Extremely high cutting speed: twice as much as the CO₂ laser cutting machine with the same power, and at the same time meets the cutting requirements of plate and pipe;
2. Extremely high stability: The service life of key components can reach 100,000 hours, which greatly saves costs;
3. Extremely low use cost: The power consumption of the whole machine is only 20%-30% of the similar CO₂ laser cutting machine;
4. Extremely low maintenance costs: Fiber optic transmission,no need for reflective lenses, saving a lot of maintenance costs;
5. The product is easy to operate and maintain, with optical fiber transmission,no need to adjust the circuit.

Parameters:

Model
3015 3000W Fiber Laser cutting machine
Laser Type
Raycus or IPG
Laser Wavelength
1070nm
Laser Maximum Power
3000W
Max. Cutting thickness
Carbon steel 20mm
Stainless steel 10mm
Brass 8mm
Total Power Consumption
<20KW
Working Size
3000X1500mm
Max.cutting speed
0-80m/min(Depending on the material and thickness)
X, Y, Z Axis Orientation Precision
≤±0.05mm/m
X, Y, Z Axis Repeat Precision
≤±0.03mm /m
Min line width
≤0.15mm
Maximum Empty Running Speed
120m/min
Driving way
Japanese FUJI servo motors system
Transmission way
Y-axis imported gear rack double driver,
X-axis imported ball screw
Cooling System
Water Cooling
Continous working time
24 Hours
Environment temperature
0-35°C
Power requirements
220V/380V /50Hz or 60Hz

Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015

Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015

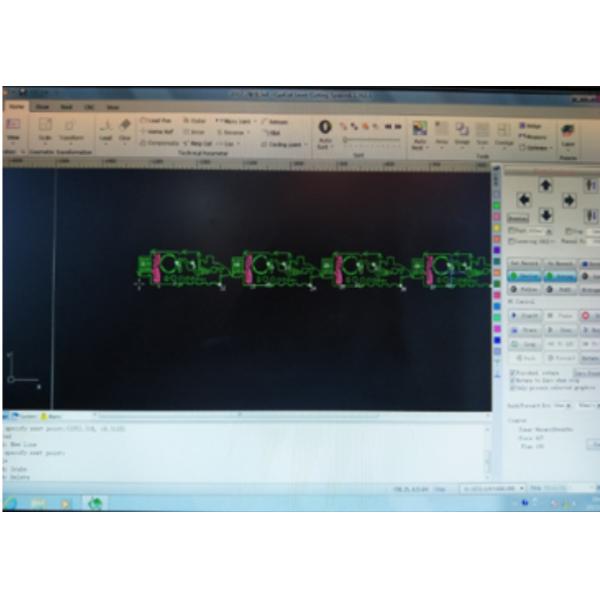

Cypcut Control System

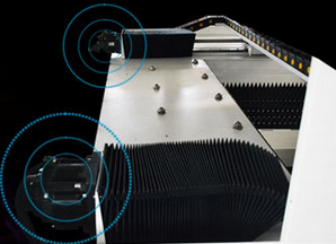

Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015 Japanese Fuji dual-servo driver ( Dual drivers for Y axis, faster and more powerful)

Sheet Metal CNC Fiber Laser Cutting Machine 3kw Double Table 3015

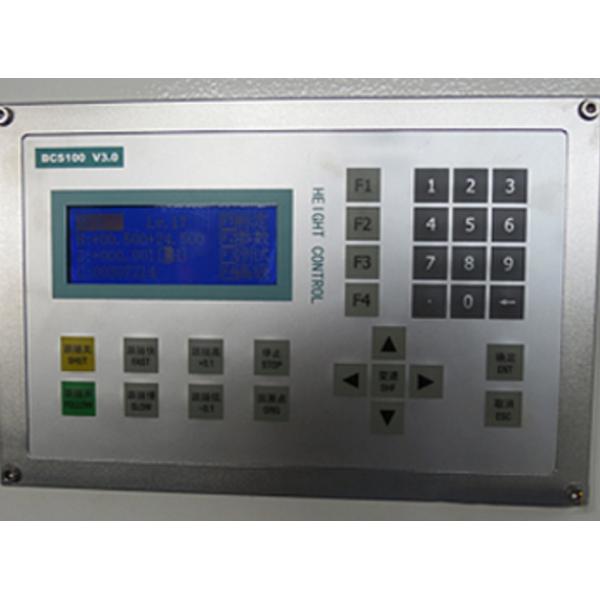

Automatic Follow Up System
