IPG Handheld Lightweld 1500 Laser Welder 1000W 2000W For Stainless Steel
IPG Handheld Lightweld 1500 Laser Welder 1000W 2000W For Stainless Steel
IPG Handheld Lightweld 1500 Laser Welder 1000W 2000W For Stainless Steel
IPG Handheld Lightweld 1500 Laser Welder 1000W 2000W For Stainless Steel
IPG Handheld Lightweld 1500 Laser Welder 1000W 2000W For Stainless Steel
IPG Handheld Lightweld 1500 Laser Welder 1000W 2000W For Stainless Steel
IPG Handheld Lightweld 1500 Laser Welder 1000W 2000W For Stainless Steel
IPG Handheld Lightweld 1500 Laser Welder 1000W 2000W For Stainless Steel
Specifications
Brand Name :
YUAN
Model Number :
1000W
Certification :
CE,ISO,UV
Place of Origin :
China
MOQ :
1 set
Price :
7000-11000USD
Payment Terms :
T/T, L/C, D/A
Supply Ability :
50 sets
Delivery Time :
14 days
Packaging Details :
wooden box
Name :
CNC Fiber Laser Laser Welding Machine
Laser power :
1000W 1500W 2000W
Laser type :
fiber technology
Fiber laser source :
IPG / Raycus /Max / JPT
Weld head :
Wobble weld head
Weld width :
1 - 5mm
Description

Handheld Fiber Laser Welding Machine 1000W,2000W

Handheld laser welder is quite fast and easier than traditional MIG & TIG Welding
Experienced MIG and TIG users benefit from the more rapid and flexible processing capabilities of fiber handheld laser welder

Up to 4time faster than TIG
Easy to learn and operate with highest process consistency
High quality welding of thick, thin and reflective metals without distortion, deformation, undercut or burn-through
Welding of dissimilar metal parts of different thicknesses
Dramatically low heat input and minimized heat affected zone
Minimal part setup and post-processing grinding or polishing
Increased productivity with no need for machining or straightening deformed parts.

Double wobble weld head technology

It can perfectly replace some traditional argon arc welding and electric welding in the welding of thin stainless steel plate, iron plate, aluminum plate and other metal materials;
Light weight, small size, ergonomic design and comfortable grip;
The operation is easy to get started, and the requirements for operators are extremely low;
Beautiful welding seam, fast speed, no welding marks, no discoloration, no need for later polishing;
Strong anti-interference.

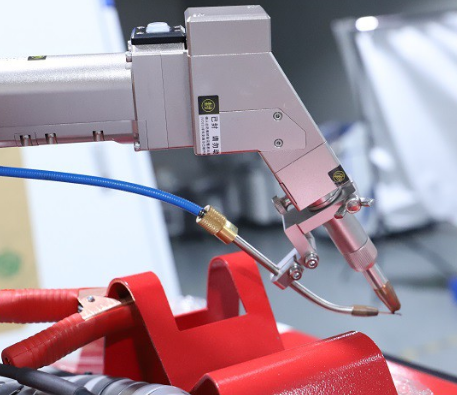

Double pendulum laser welding head can weld aluminum materials

IPG Handheld Lightweld 1500 Laser Welder 1000W 2000W For Stainless Steel

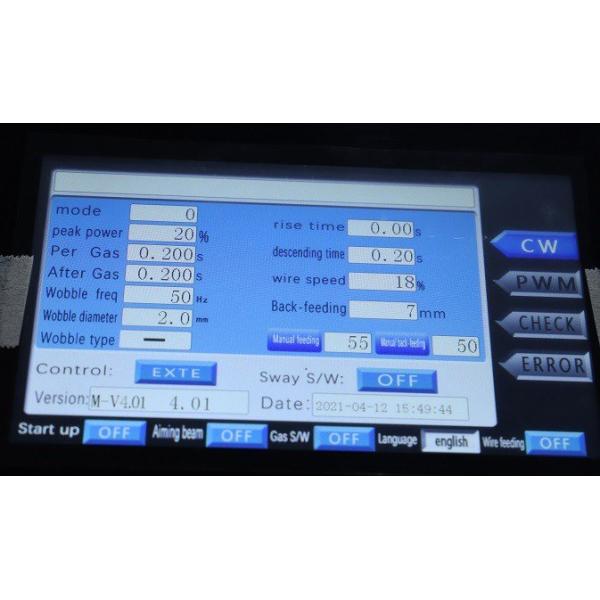

Control system

The control system come with a few kinds of mode,CW model, PWM model Arc model.The control screen directly digitally sets the parameters of the wire feeder;
The system monitors the operating status in real time, monitors and collects the operating status of the laser, chiller, and control board;
Support Chinese, English, Korean, Japanese, Russian, French, Spanish, Israeli language systems

IPG Handheld Lightweld 1500 Laser Welder 1000W 2000W For Stainless Steel

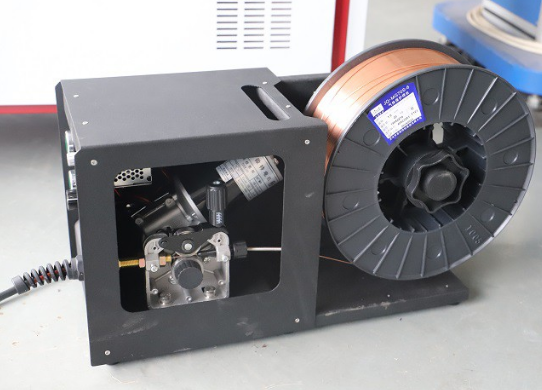

Wire eeder

1000W and 1500W support 0.8mm 1.0mm 1.2mm wire, 2000W support 0.8mm to 1.6mm.

Wire send and back speed adjust through touch panel.

If two weld metal gap more than 0.2mm that need filler wire.

IPG Handheld Lightweld 1500 Laser Welder 1000W 2000W For Stainless Steel

Weld method

Flat position weld
Horizontal position weld
Vertical position weld
Overhead position weld

Parameters:

Model number SM-1000W,SM-1500W,SM-2000W
Laser power 1000W 1500W 2000W
Laser type fiber technology
Laser wavelength 1080nm
Fiber laser source IPG / Raycus /Max / JPT
Weld head Wobble weld head
Weld width 1- 5mm
Welding head weigt 0.8kg
Control system Hanwei brand
Weld mode system CW/ PWM / Argon Arc
Weld speed 0-120mm/s
Weld method Flat / Horizontal /Vertical /Overhead
Cooling system Water chiller
Language

English, Korean, Japanese,

Russian, French, Spanish, Israeli
Water cooler capacity 18 litres
Type of water Distilled water or pure water
Machine color Red / blue /black
Wire feeder option part
Wire feeder diameter 0.8mm 1.0mm 1.2mm 1.6mm
Type of gas Argon gas
Air pressure 3 to 5 bar / 0.3 to 0.5 Mpa
Total power 8kw / 9kw / 12 kw
Machine dimension 1200x800x1480mm
Gross Weight 280kg
Consumable part

Protection lens ,Brass nozzle
