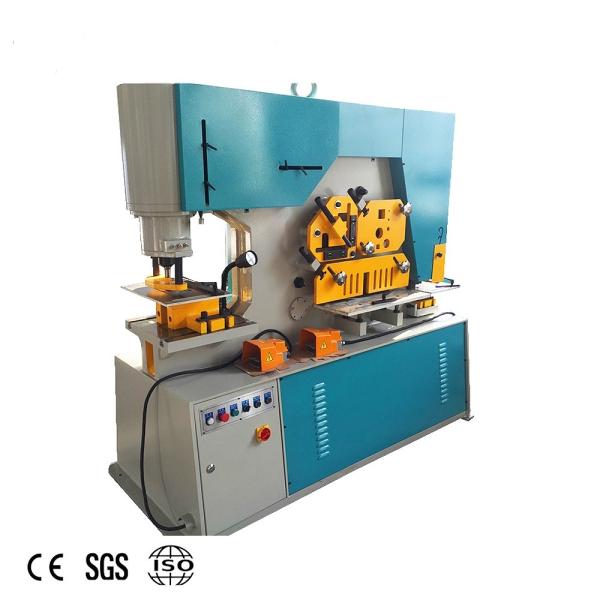

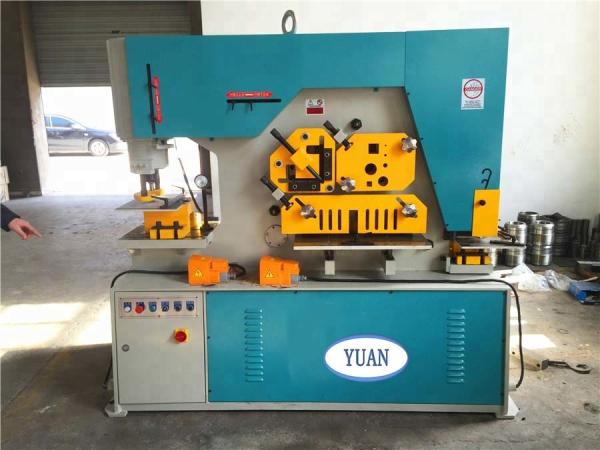

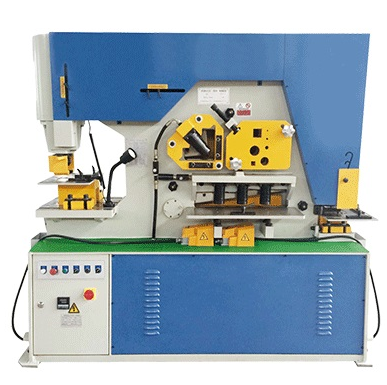

Q35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear Machine
Q35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear Machine
Q35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear Machine
Q35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear Machine
Q35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear Machine
Q35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear Machine
Q35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear Machine
Q35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear Machine
Q35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear Machine
Q35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear Machine
Specifications
Brand Name :
YUAN
Model Number :
Q35Y-50
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
5000-6000USD
Payment Terms :
T/T, D/A, L/C
Supply Ability :
50 sets
Delivery Time :
25 days
Packaging Details :
wooden box
Nominal Force :
120T
Power Source :
Hydraulic
Voltage :
220V/380V/450V
Weight :
5000 Kg
Name :
Hydraulic Ironworker
Description

factory price Q35Y series steel Iron worker,hydraulic steel punch and shearing machine,steel punching and cutting machine

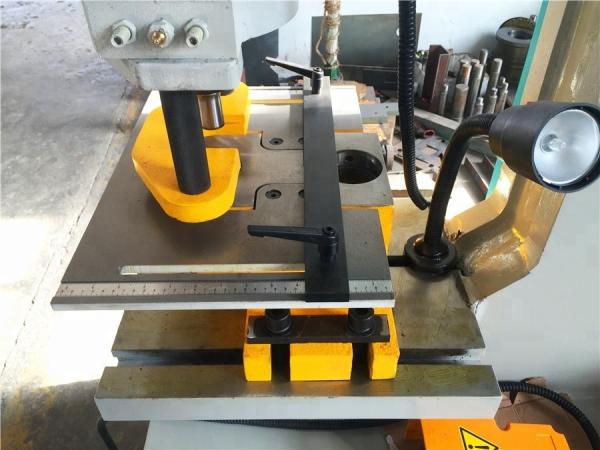

Q35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear Machine The double cylinder series are in the YUAN tradition of well engineered ironworkers built for high power,quality,and reliability.These ironworkers have two control foot pedals and separate operations can be safety perfored simultaneously.The low pressure setting for tool change provides maximum operation safety.The long punching cylinder strokes and deep stroke enable punching base with the "T-slot" mounting provides a solid base for securing the punching tooling,as well as a wide rang of operation and cusion designed tooling.

Main functions

More efficient stroke-control functions of piston rod.
Central lubricating system
Motor-driven rear stopper
Lighting devices for work

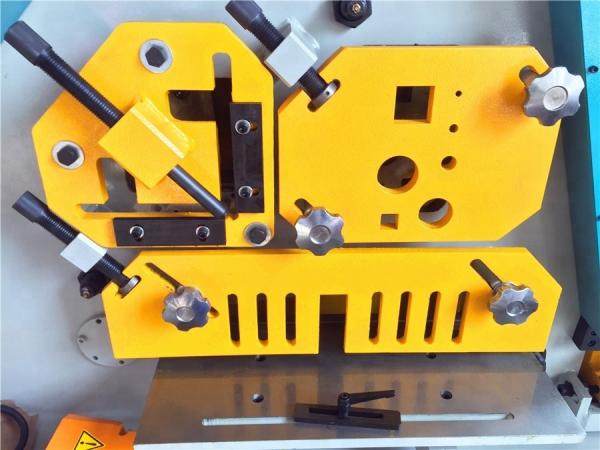

5 independent work-positions: punch pin and die (standard punching dies),cutting blade group for round and square steel, shearing blades for steel plate, slotting and angle-cutting blade.

Technical Specification Q35Y-12 Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40 Q35Y-50
Punching Pressure(T) 35T 60T 90T 120T 160T 200T 250T
Depth of throat(mm) 115 300 355 400 600 600s 600
Standard Die Punching Dia.X Max.Thickness mm 25X12 25X16 30X20 35X25 38X26 40X35 40X40
Dia.X Thickness mm 25X12 25X16 30X20 35X25 38X26 40X35 40X40
Max.Diameter mm 12 25 30 35 38 40 40
Travel mm 35 80 80 80 80 80 80
Working Travel mm X18 X20 X25 X25 X30 X35 X40
Throat Depth mm 115 300 355 400 600 600 600
Steel Bar Round mm 35 45 50 60 65 70 80
Square mm 30X30 40X40 50X50 50X50 55X55 60X60 65X65
Steel Angle Angle Size mm 86X86X8 125X125X12 140X140X12 160X1160X14 180X180X16 200X200X18 200X200X20
Cutting Angle ° 50X50X5 50X50X5 50X50X5 60X60X6 60X60X6 100X100X10 120X120X10
Angle Section mm 5.5 5.5 6.5 9 11.5 12 12
Slotting Thickness mm 100 126 160 210 280 300 320
Width mm 30 53 60 75 86 89 92
Optional Die U-I Shaped Profile Size mm 100X100X8 125X125X12 140X140X12 160X160X14 180X180X16 160X160X14 180X180X16
T-shaped Profile Size mm 40X40X6 60X60X8 70X70X10 80X80X10 80X80X10 80X80X10 80X80X10
I-Beam Size mm 40X60X4 126X74X5 160X86X6 200X102X9 280X124X10.5 300X126X11 320X130X10
V-Bending Length mm 600 600 600 600 600 600 600
V-Bending Thickness mm 4 10 15 20 26 33 40

Configuration:

NO Item Manufactuer
1 Electrics Schneider-France
2 Main Motor Siemens-germany
3 Oil Pump Sunny-USA
4 Valve block Rexroth-Germany
5 Pedal switch KACON-South Korea
6 Wind-cooler for oil China
7 Sealing Ring Parker-USA
8 Oil pipe connector Pressure hose-Germany
9 Safety guard YUAN

Q35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear MachineQ35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear MachineQ35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear MachineQ35Y 120T Steel Iron Worker , 220V 450V Hydraulic Punch And Shear Machine
