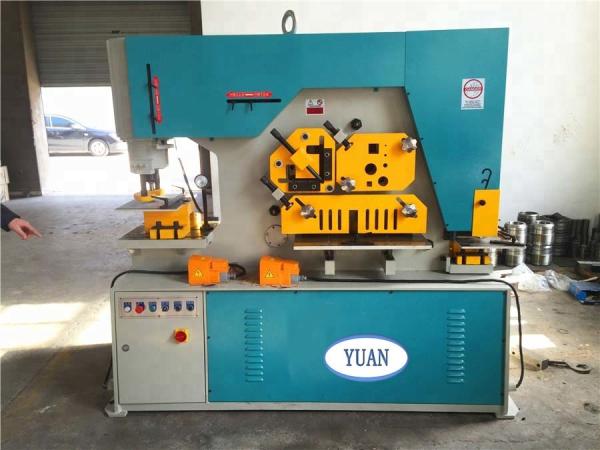

IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
Specifications
Brand Name :
YUAN
Model Number :
IW-125
Certification :
CE , ISO
Place of Origin :
China
MOQ :
1 set
Price :
8000-12000 USD
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
30 SETS
Delivery Time :
25 days
Packaging Details :
wooden box
Machine Type :
iron worker
Application :
Cutting ,Punching and Notching
Punching Force :
125 Ton
Throat Depth S :
310 mm
Description

Hydraulic Iron Worker IW-125SD Punching Pressure 125Ton

Hydraulic Iron Worker IW-125SD

WORK STATIONS

IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
Punching Station
1. A full range of punches and dies are available for various punching needs.
2. Quick change retaining nut system for fast punch tooling change.
3. Thoughtfully designed stripper for visibility, safety and ease of use.
4. A large 2-piece table with scales and gauging stops is standard on all models.
5. Stripper with interchangeable plates of various openings to minimize deformation is standard on all models.
IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
Flat Bar Shearing Station
1. Specially machined upper blade to give a clean shear with minimum distortion.
2. Lower blade has four usable cutting edges. 3.Variable degree miter-cutting on angle flange.
4. Easily adjustable hold-down.
5. Support table with guides for accurate positioning.
IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
Angle Shearing Station
1. Single shear with no material loss and minimal deformation.
2. 45° miter-cut is easy and clean.
3. Stationary blades with four usable cutting edges.
4. Selectable corner radii on moving blades for optimum results on small or large angles.
IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm
Bar Shearing Station
1. One hold-down for various sizes of square bar shearing and round bar shearing.
2. Optional channel and section bar shear
tooling is available for most models. (See specification chart for details)

IW-125SD Punch Press And Shear 125Ton Iron Work Machine 310mm

Parameters:

FLAT SHEARINGMODEL
IW-60S
IW-60SD
IW-80S
IW-80SD
IW-100S
IW-100SD
IW-125S
IW-125SD
IW-165SD
Flat Bar Shear S
350 x 15
460 x 15
610 x 16
125 Ton
760 x 20
Flat Bar Shear SD
240 x 20
300 x 20
400 x 20
400 x 25
400 x 30
Blade Length
360
465
620
620
770
Angle Flange Trim
100
100
100
100
120
Working Height
910
926
954
920
920

ANGLE SHEARINGMODEL
IW-60S
IW-60SD
IW-80S
IW-80SD
IW-100S
IW-100SD
IW-125S
IW-125SD
IW-165SD
At 90° Shearing
130 x 130 x 12
150 x 150 x 12
150 x 150 x 15
150 x 150 x 15
150 x 150 x 20
At 45° Miter Shearing
65 x 65 x 8
75 x 75 x 9
75 x 75 x 9
75 x 75 x 9
75 x 75 x 9
Working Height
1115
1165
1216
1185
1185
