Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min
Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min
Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min
Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min
Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min
Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min
Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min
Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min
Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min
Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min
Specifications
Brand Name :
YUAN
Model Number :
W11H-20x3000
Certification :
CE,ISO,UV
Place of Origin :
China
MOQ :
1 set
Price :
25000-50000USD
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
50 sets
Delivery Time :
40 days
Packaging Details :
wooden box
Max thickness :
6-30 mm
Max width :
2000-3000 mm
Rolling Speed :
4.5m/min
Pre-curved plate thickness :
5-25 mm
Description

3 rolls full function with cone bending hydraulic arc adjust roll plate machine for small and medium-sized products

1. Movable control panel,it’s easy operate;

2. Digital readout for two bottom rollers lifting displacement,high precision cylinder;

3. Two bottom rollers lifting by arc,leverage increase the forming force;

4. The plate always in the state of clamping during rolling process,without shipping;

5. The same diameter for three working rollers;

6. Three rollers can get very close,small diameter tube can be bent and check cylinder;

7. Cone bending attachment.

8. Quality certificate such as CE and ISO9001.

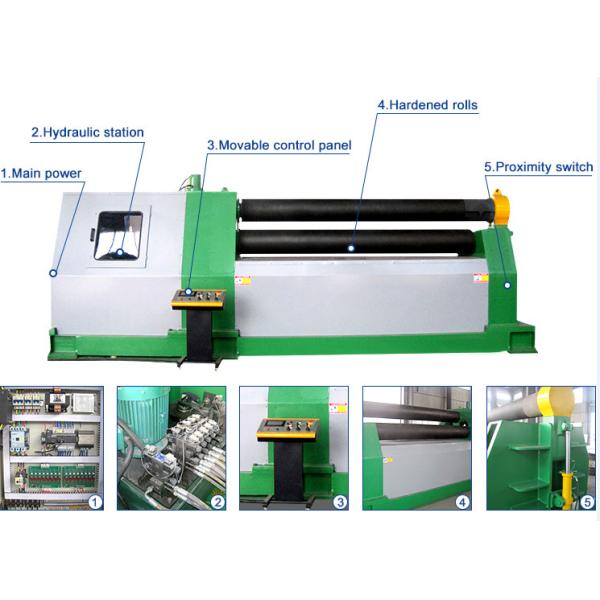

Feature:

Electric motor makes top roller rise
Bottom roller always moves in orbital way with help of hydraulic pistons
Hydraulic drop end contributes to remove work-piece easily
High quality hardened rolls
Useful movable control panel

Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min

HARDENED ROLLS WITH 42CrMo MATERIAL

1.Ground and polished rolls for special material

2.The top roller mounted by hydraulic motor

3.Bottom roller move with hydraulic pistons in orbital way

 Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min

Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min

HYDRAULIC SYSTEM

Through exclusive technology,it can develop cones as easily as competitive machines can develop cylinders

It eliminates scarring on the surface of shell or roll and also eliminates,in most cases ,the need for grinding the lamination(bullnosing) on the minor diameter edge.

Yuken valve made in Japan

Release Device

Hydraulic drop-end for easy removal of finished ferrule.

 Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min
Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min

MAIN MOTOR

Main power:China famous brand

Main electronic :elements:Siemens Made in Germany

PLC CONTROL SYSTEM

HMI(human machine interface),intelligent operation.Self-compensating,single operate,high efficiency,safe and convenient.

Many models for choice,economic numerical control model.

A PLC control system ensure the machine's bottom and lateral rolls operate synchronously.Up to eight steps can be programmed with touch screen.

 Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min

Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min

Parameters:

Model Max thickness(mm) Pre-bending thickness max.bending width(mm) top roller diameter(mm) bottom roller diameter(mm)
W11H-6*3000 6 5 3000 210 210
W11H-8*3000 8 6.5 3000 230 230
W11H-8*3000 10 8 3000 270 270
W11H-12*3000 12 10 3000 300 300
W11H-16*3000 16 13 3000 330 330
W11H-20*3000 20 16 3000 360 360
W11H-30*3000 30 25 3000 420 420

Three Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/MinThree Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/MinThree Roll Plate Bending Rolling Machine W11H-20x3000 ISO9001 4.5m/Min
